*Harness (PA1001)
(CN201)
Harness (BM-1003)
(CON3)
Two Screw (PTP2X5)
(tightening torque + 3.5 to 4.5kgf*cm)
Harness, Coaxial (310MM)
(CON1)
WiFi Board
One Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf.cm)
Harness, Coaxial (310MM)
Bluetooth Board
Two Screw +PSW 3X8
(tightening torque = 6.5 to 7.5kgf.cm)
2.
3.
4.
5.
6.
7.
8.
9.
10.
Four Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf.cm)
Harness (PM1006)/*(1007)
(CN202)
12.
11.
AC Cord
(CN101)
13.
Switching Regulator PWB
14.
Two Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf.cm)
1.
3

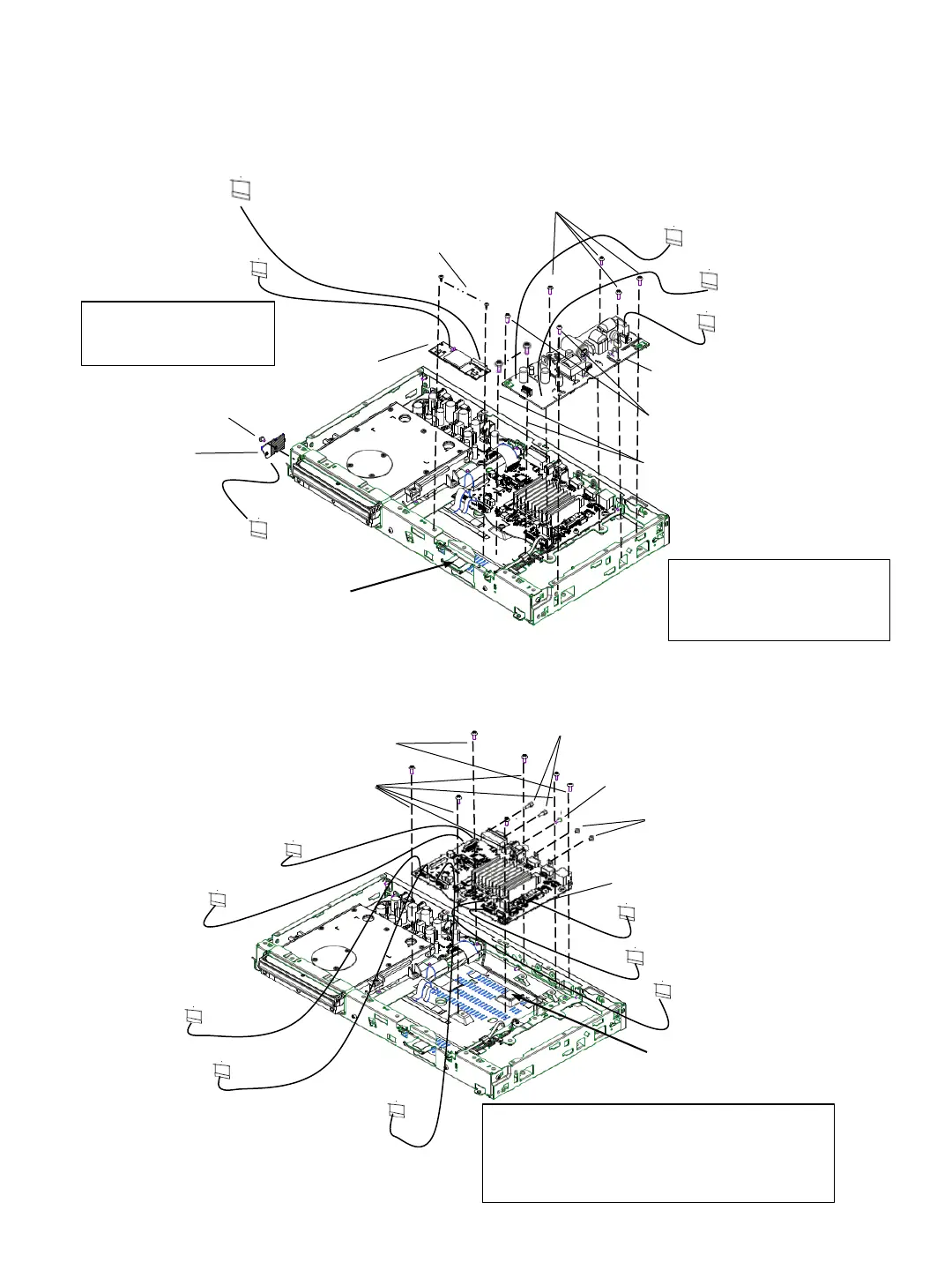

2-5. BLUETOOTH, WiFi AND SWITCHING REGULATOR BOARD
2-6. MB-1601 BOARD
5.
6.
9.
Five Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf.cm)
MB-1601 Board refer caution
figure 2-9-2 (Pg: 2-5)
Two Screw (+BV 3X8 CU)
(tightening torque = 8.5 to 9.5kgf.cm)
(Harness (BM-1003)
(CN902)
*Flexible Flat Cable (AUM-
002) (CN1002)
1.
One Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf.cm)
Two Screw +B 3X5
(tightening torque = 3.5 to 4.5kgf.cm)
2.
3.
Flexible Flat Cable (OPT-1006)
(CN1201)
7.
Flexible Flat Cable (LDG-008)
(CN1301)
*Flexible Flat Cable (FLM-1001)
(CN706)
Flexible Flat Cable (FIM1010)
(CN705)
10.
11.
12.
13.
14.
8.
Flexible Flat Cable (SPD-007)
(CN1302)
Note:
1) * - For UBP-X1000ES model only.
2) Hameron Tape is used to stick FFC/Harness to chassis.
Please attach Hameron tape at original location when
reassemble FFC/Harness.
Caution: Bluetooth (310MM)
Harness is fragile, please
handle with extra care.
Heat Dissipation sheet is reusable,
must be in position before
reassemble MB-1601 Board
15.
Heat Dissipation sheet is reusable,
must be in position before
reassemble WiFi Board
15.
4.
* Two Screw Nut
(tightening torque =6.5 to 7.5kgf.cm)
Harness (PM1006)/*(1007)
(CN401)
Caution:
To keep Hi-Res Audio and EMC
Requirement use only the correct
screw at its intended location
To Next Page
