Sony RMT-VB310E - Top Chassis; Front Panel, FR-1602 Board and FC-1603 Board

2-2
Eleven Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf.cm)
Two Screw +BTP 2.6X4 TYPE2 N-S
(tightening torque = 3.5 to 4.5kgf.cm)
Chassis, Top
2

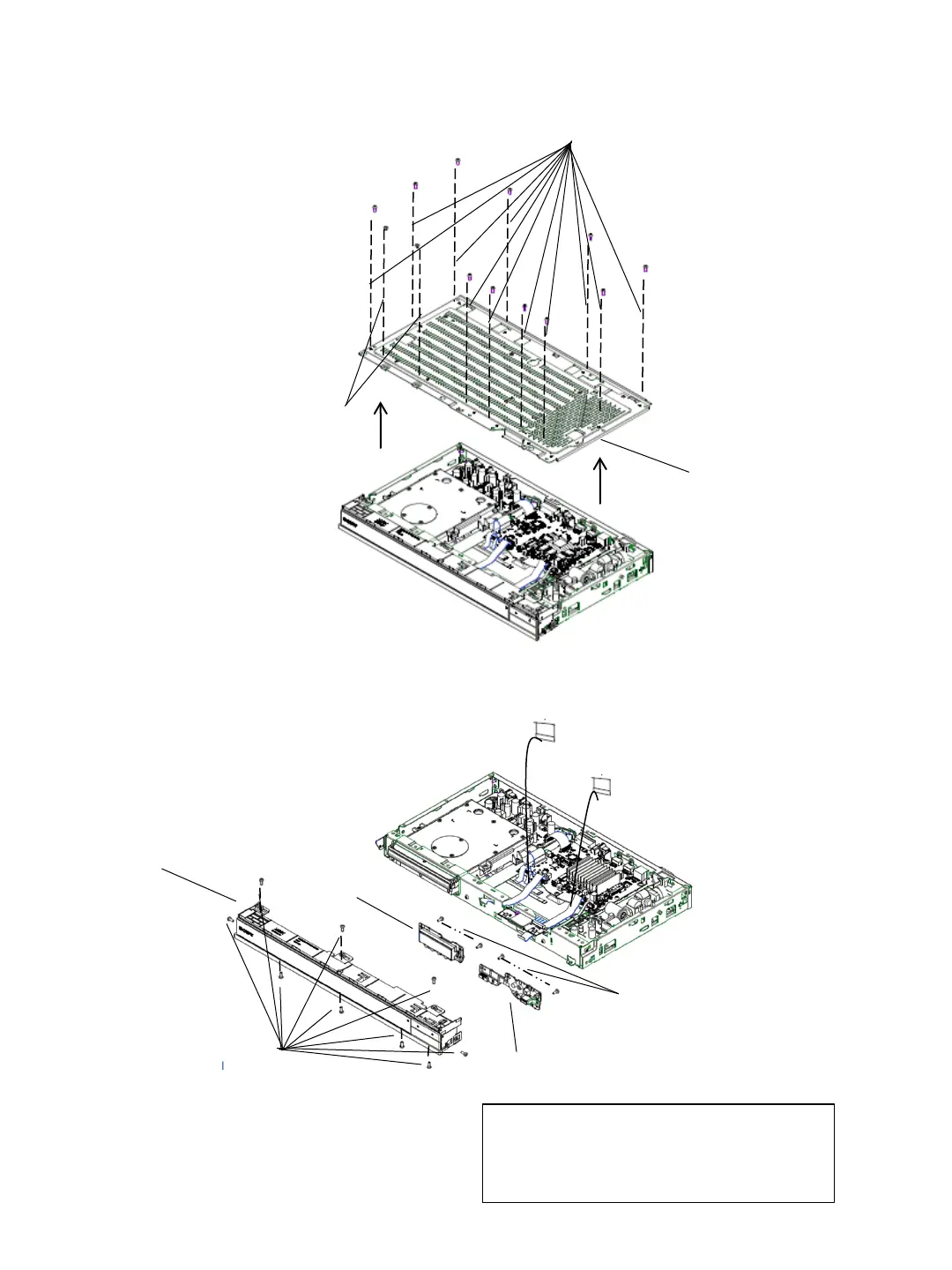

2-3. TOP CHASSIS
2-4. FRONT PANEL, FR-1602 Board and *FC-1603 Board
1.
2.
3.
Panel, Front
FR-1602 Board
*Flexible Flat Cable (FLM-1001)
(CN300) refer caution figure 2-9-1 (Pg:2-5)
*FC-1603 Board
Nine Screw +BTP 3X8 TYPE2 N-S
(tightening torque = 6.5 to 7.5kgf.cm)
Flexible Flat Cable (FIM1010)
(CN100) refer caution figure 2-9-1 (Pg: 2-5)
Six Screw +BVTP2.6 (3CR)
(tightening torque = 4.5 to 5.5kgf.cm)
1.
2.
3.
4.
5.
6.
7.
Note:
1) * - For UBP-X1000ES model only.
2) Hameron Tape is used to stick FFC/Harness to chassis.
Please attach Hameron tape at original location when
reassemble FFC/Harness.
