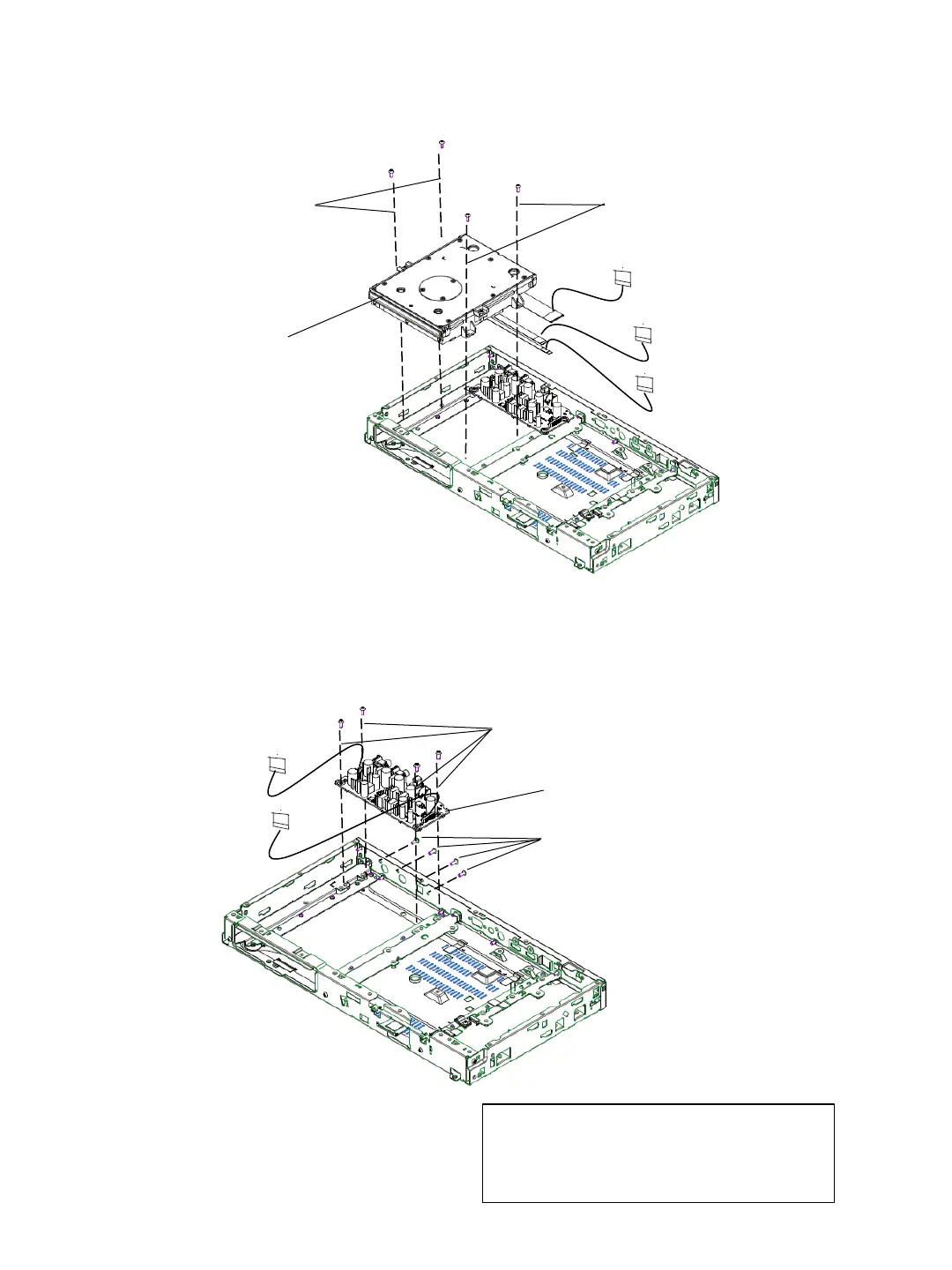

2-7. BD DRIVE
2-8. *AN-1605 Board (UBP-X1000ES model only)
Two Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf.cm)
BD DRIVE
1.
Two Screw (+BV 3X8 CU)
(tightening torque = 8.5 to 9.5kgf.cm)
2.
Flexible Flat Cable (OPT-1006)
(CN201)
3.
Flexible Flat Cable (SPD-007)
(CN302)
4.
Flexible Flat Cable (LDG-008)
(CN301)
5.
6.
Note:
1) * - For UBP-X1000ES model only.
2) Hameron Tape is used to stick FFC/Harness to chassis.
Please attach Hameron tape at original location when
reassemble FFC/Harness.
Flexible Flat Cable (AUM-002)
(CN801)
Harness (PA-1001)
(CN802)
1.
2.
3.
4.
AN-1605 Board
Four Screw +BVTP 3X8 TYPE2 IT-3
(tightening torque = 6.5 to 7.5kgf*cm)
Four Screw +PWH 3X8 (SUMITITE)
(tightening torque = 6.5 to 7.5kgf*cm)
