2-5
5

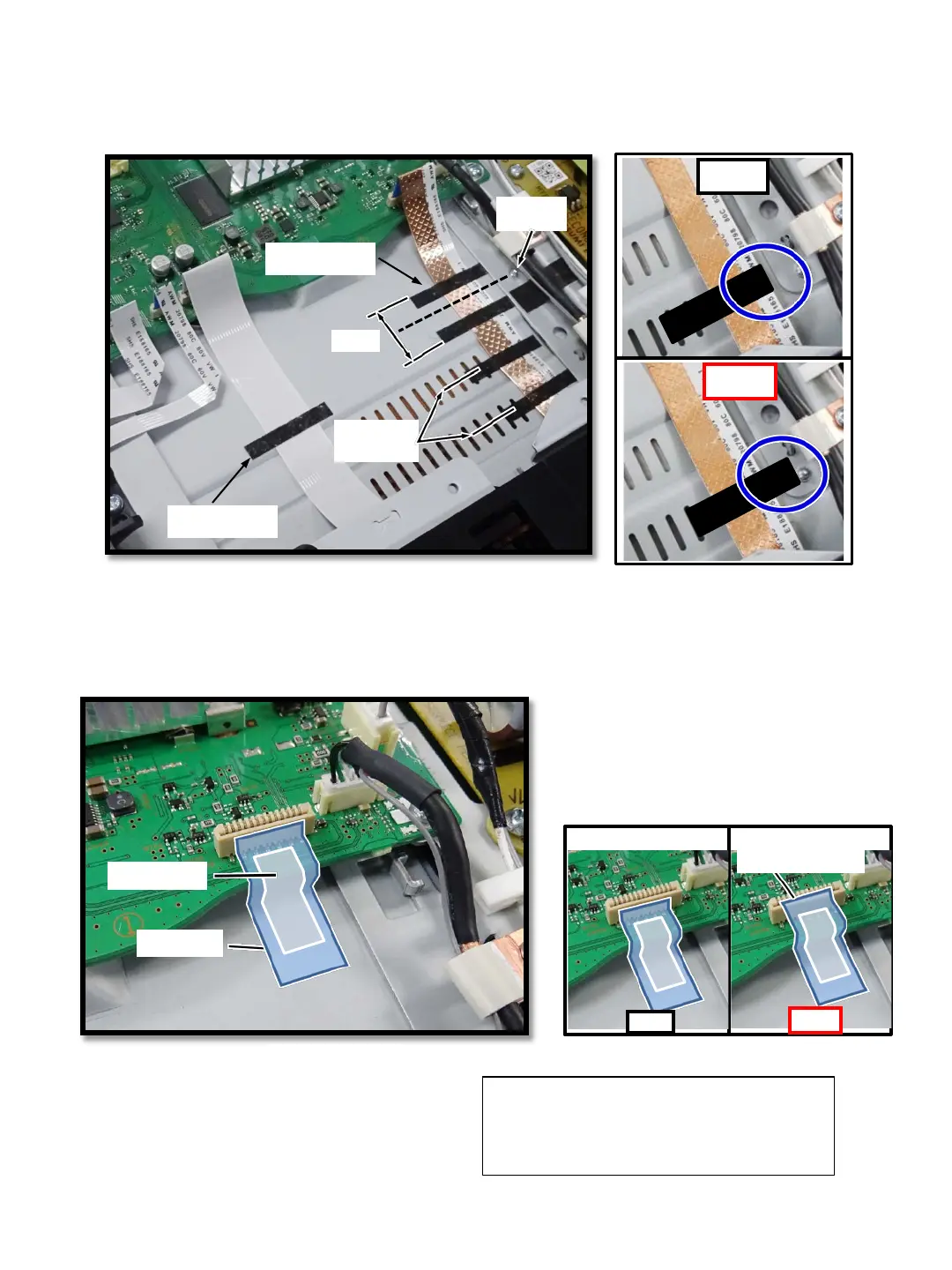

2-9 FFC /HARNESS CAUTION POINT
20mm
CENTER OF
2 HOLES
CENTER OF
SCREW
< NG >
< OK >
TEFLON TAPE
EMI TAPE
< NG >
< OK >
COVER CONNECTOR
HOLE
Figure : 2-9-1
Figure : 2-9-2
Note:
1) * - For UBP-X1000ES model only.
2) Hameron Tape is used to stick FFC/Harness to chassis.
Please attach Hameron tape at original location when
reassemble FFC/Harness.
*Hemaron tape
(30x5mm)x1pcs
Hemaron tape
(30x5mm)x4pcs
