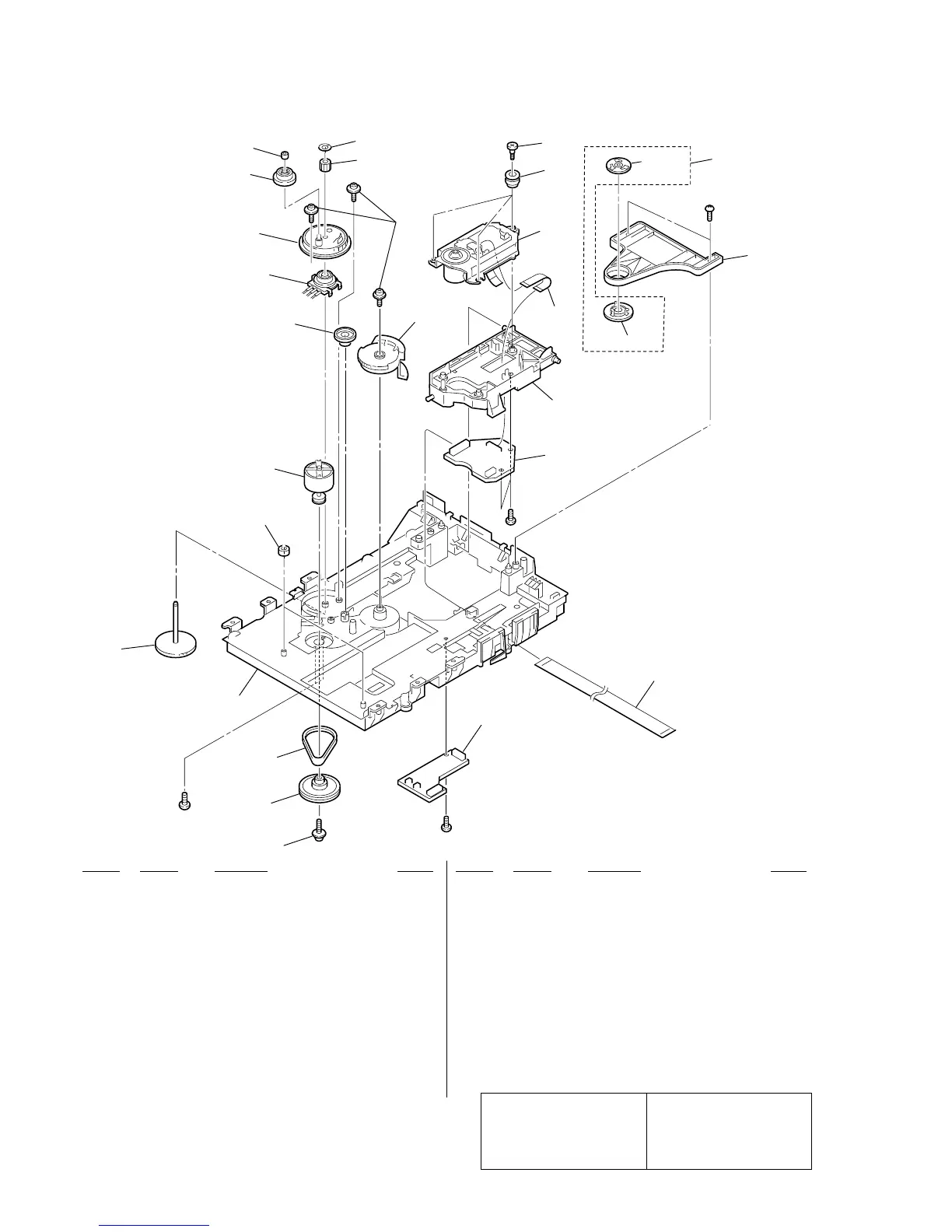

Sony SCD-CE595 - CD Mechanism Section (2) Exploded View

26
SCD-CE595
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
5-5. CD MECHANISM SECTION (2)
(CDM79C-DVBU51)
201 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
202 3-074-744-01 GEAR (LOADING A)
203 3-074-745-01 BELT (LOADING)
204 3-074-742-01 GEAR (SHAFT)
205 4-951-619-01 CUSHION (A)
206 3-074-735-01 GEAR (IDOLER)
207 1-829-172-11 WIRE (FLAT TYPE) (31 CORE)
208 3-074-741-01 GEAR (LOADING B)
209 3-074-738-01 GEAR (SWING)
210 3-074-739-01 COLLAR (SWING)
211 3-016-533-01 WASHER (FR), STOPPER
212 3-074-740-01 GEAR (LOADING C)
213 3-074-736-01 GEAR (CHUCK)
not supplied
not
supplied
not
supplied
not supplied
not supplied
M901
RE901
201
202
207
203
204
205
206
208
209
210
211
214
215
216
218
219
220
217
212
213
201
#8
#8
#7
#2
214 4-981-923-01 SCREW (M), STEP
215 3-053-847-31 INSULATOR
0 216 A-1067-676-A DEVICE, OPTICAL (DBU-3)
217 A-4736-882-A CHUCK ASSY
218 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE)
219 X-4955-252-3 HOLDER (BU) ASSY
220 A-4750-527-A RF BOARD, COMPLETE
M901 1-541-632-12 MOTOR, DC
RE901 1-418-746-11 ENCODER, ROTARY
#2 7-685-535-19 SCREW +BTP 2.6X10 TYPE2 N-S
#7 7-621-259-25 SCREW +P 2.6X4
#8 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
