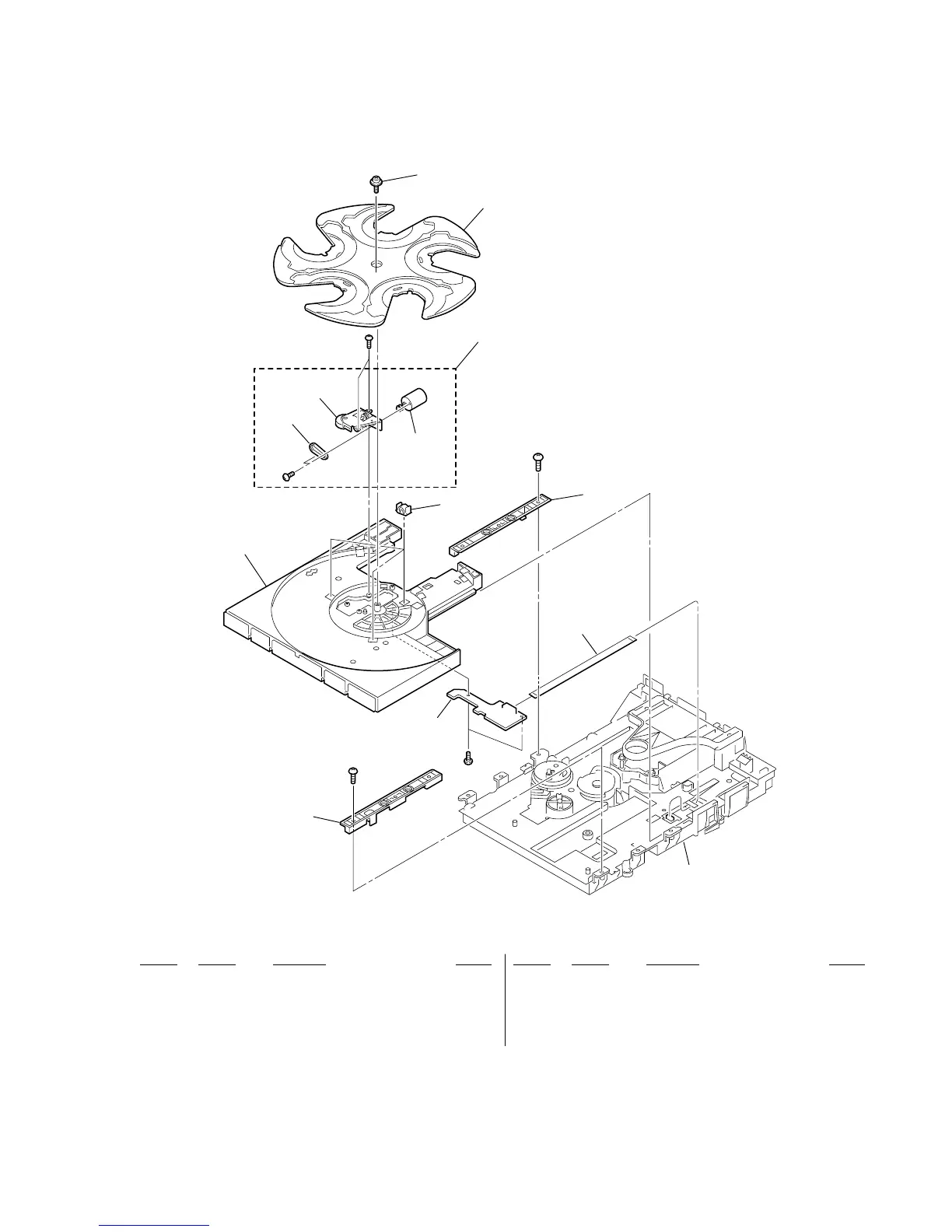

Sony SCD-CE595 - CD Mechanism Section (1) Exploded View

25
SCD-CE595
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
5-4. CD MECHANISM SECTION (1)
(CDM79C-DVBU51)
151 3-074-737-01 PLATE (GUIDE)
152 A-6060-642-A SE-130 BOARD, COMPLETE
153 3-074-716-01 TABLE
154 A-6060-640-A UNIT ASSY, TD
155 3-074-725-01 BELT, TD
not
supplied
not
supplied
not
supplied
CD mechanism section (2
)
(CDM79C-DVBU51)
156
157
154
153
152
158
155
#4
#6
#6
#6
#6
151
151
156 3-074-717-01 TRAY
157 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
158 1-823-921-11 FMS-18
#4 7-682-544-04 SCREW +P 3X3
#6 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
Ver. 1.2
