Sony SCD-CE595 - Exploded Views; Main Section Exploded View

22
SCD-CE595
4 4-951-620-01 SCREW (2.6X8), +BVTP
5 3-073-127-22 CASE, UPPER
#1 7-685-872-09 SCREW +BVTT 3X8
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark
1 X-4956-436-1 PANEL ASSY, LOADING
2 3-363-099-02 SCREW (CASE 3 TP2)

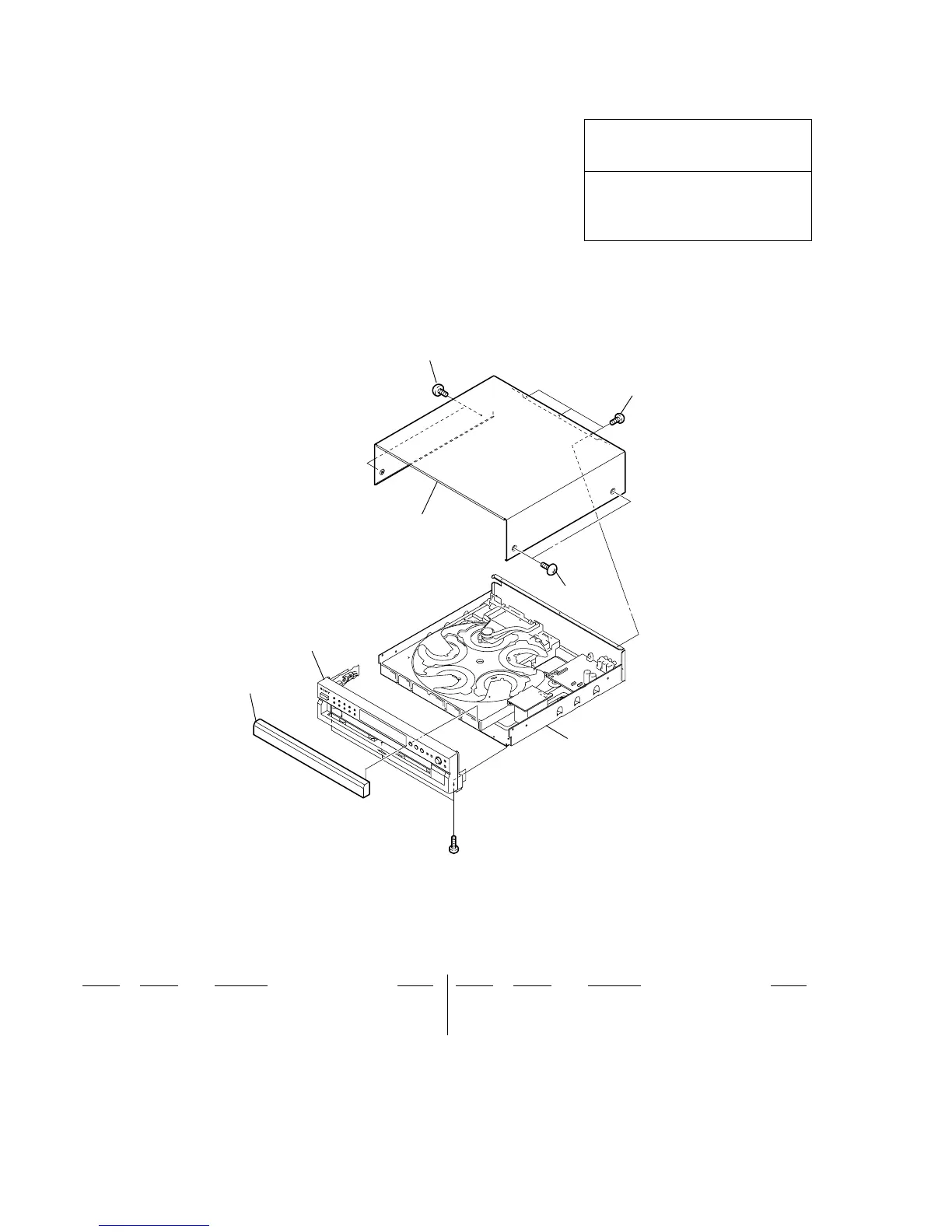

5-1. MAIN SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
2
4
2
1
5
front panel section
chassis section
#1
Ref. No. Part No. Description Remark
Ver. 1.3
