2-4

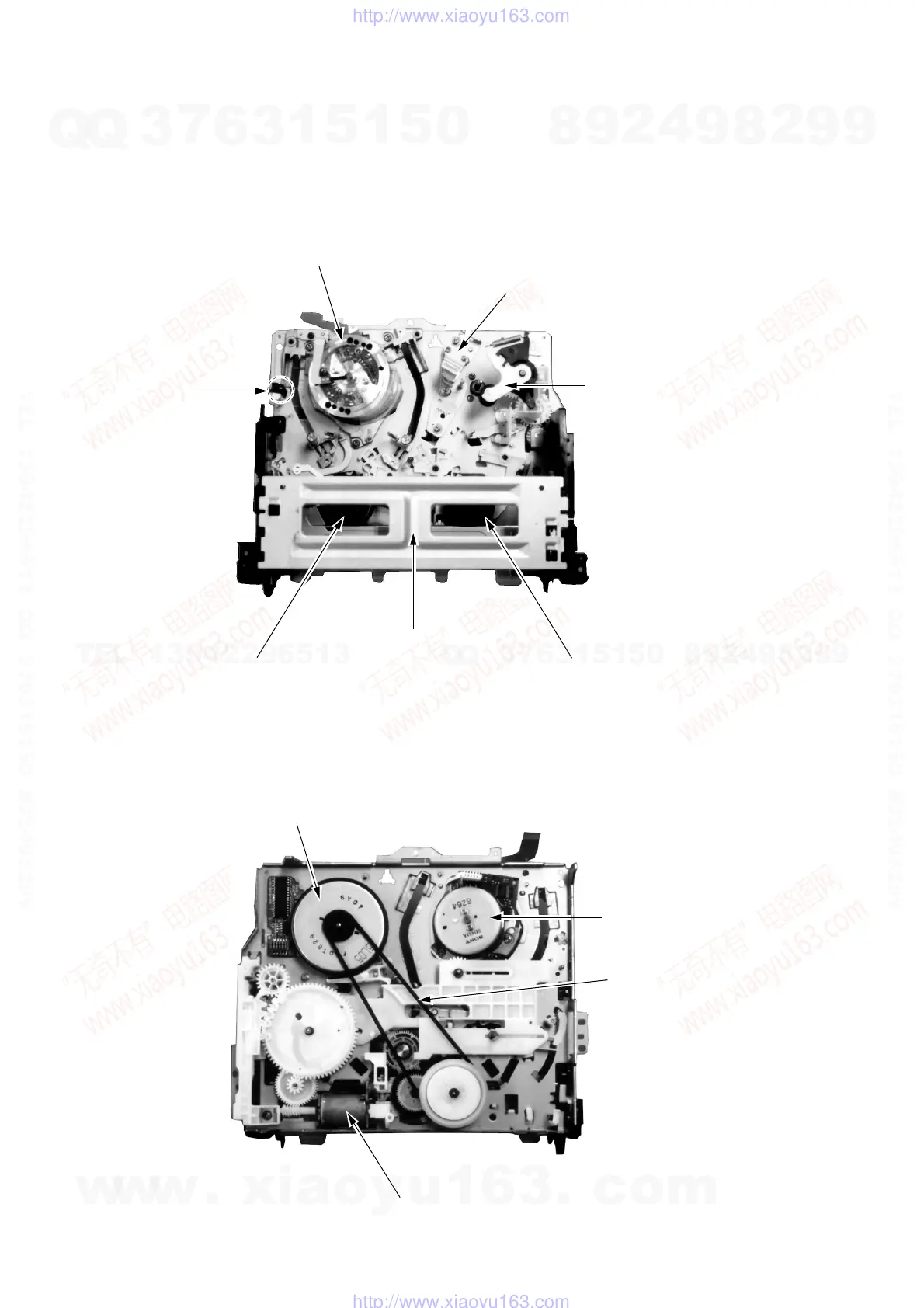

2-6. INTERNAL VIEWS
—Top View—
—Bottom View—
M901 (Note)
Upper drum assembly DZR-45-R
8-848-576-02 (HiFi)
Lower drum assembly DZL-51B/J-RP
8-848-666-11 (HiFi)
Drum Assembly DZH-73D-ZRB (MONO)
Drum Assembly DZH-94A/Z-RP (HiFi)
FE head
1-500-144-11
Reel (S) table
3-977-507-01
FL complete assembly
A-6759-619-C
Reel (T) table
3-977-508-01
Pinch press block assembl
A-6759-615-A
ACE head block assembly
A-6759-620-A
M902
DC motor (capstan)
1-698-971-11
M901 (Note)
Lower drum assembly
DZL-51B/J-RP
8-848-666-11 (HiFi)
Rubber belt
3-977-510-01
M903
Cam motor assembly
X-3947-577-1
Note : See page 7 for the note about drum
assembly for the HiFi models.
