7-1
SLV-478/677HF/678HF/688HF/L47/L48/L57/
L58/L67HF/L68HF/L77HF/L78HF/X50/X60HF
SECTION 7
REPAIR PARTS LIST
7-1. EXPLODED VIEWS
Note:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (#mark) list is given in the last of
this parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

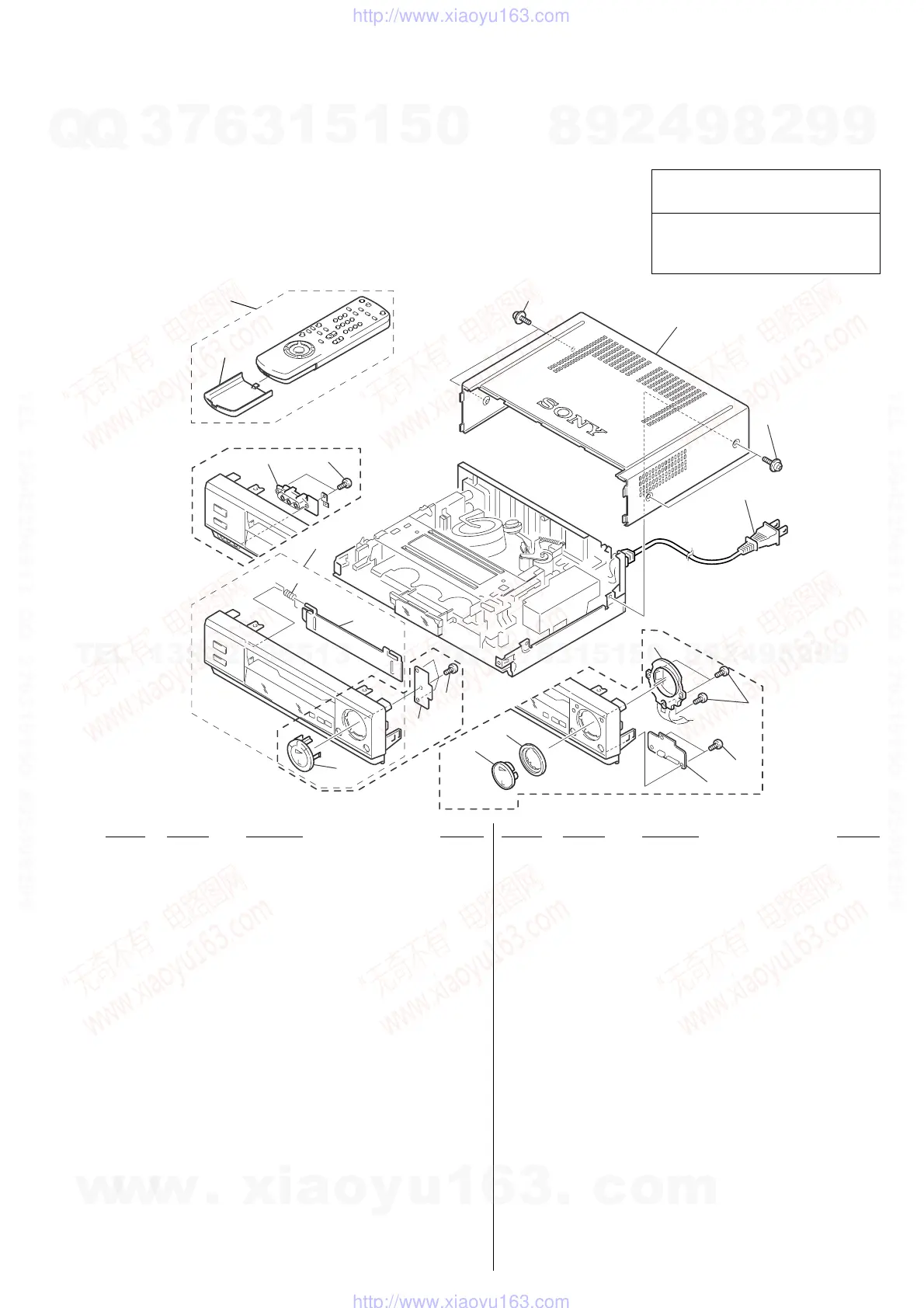

7-1-1. FRONT PANEL ASSEMBLY AND UPPER CASE SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3948-006-1 PANEL ASSY, FRONT (478)
1 X-3948-007-1 PANEL ASSY, FRONT (678HF)
1 X-3948-008-1 PANEL ASSY, FRONT (688HF)
1 X-3948-009-1 PANEL ASSY, FRONT (L47)
1 X-3948-010-1 PANEL ASSY, FRONT (L57)
1 X-3948-011-1 PANEL ASSY, FRONT (L67HF)
1 X-3948-012-1 PANEL ASSY, FRONT (L77HF)
1 X-3948-013-1 PANEL ASSY, FRONT (L78HF)
1 X-3948-014-1 PANEL ASSY, FRONT (L68HF)
1 X-3948-015-1 PANEL ASSY, FRONT (L58)
1 X-3948-016-1 PANEL ASSY, FRONT (L48)
1 X-3948-036-1 PANEL ASSY, FRONT (677HF)
1 X-3948-037-1 PANEL ASSY, FRONT (X60HF)
1 X-3948-038-1 PANEL ASSY, FRONT (X50)
3 3-953-432-01 SPRING (GE), FL
* 4 A-6794-483-A JK-161 BOARD, COMPLETE (688HF)
* 4 A-6794-508-A JK-161MX BOARD, COMPLETE (L57,L58,X50)
* 4 A-6794-510-A JK-161HX BOARD, COMPLETE (L77HF,L78HF)
5 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
6 3-710-901-11 SCREW, TAPPING
* 7 3-988-080-21 CASE, UPPER (478,677HF,678HF,688HF)
* 7 3-988-080-31 CASE, UPPER
(EXCEPT 478,677HF,678HF,688HF)
! 8 1-777-851-41 CORD, POWER (478,677HF,678HF,688HF)
! 8 1-777-854-41 CORD, POWER
(EXCEPT 478,677HF,678HF,688HF)
* 9 A-6794-482-A DS-79S BOARD, COMPLETE
(478,677HF,678HF,688HF)
* 9 A-6794-503-A DS-79SX BOARD, COMPLETE
(L47,L48,L67HFPA,L68HF,X60HF)
* 9 A-6794-509-A DS-79D BOARD, COMPLETE
(L57,L58,L77HF,L78HF,X50)
10 1-762-844-21 SWITCH, ROTARY (L57,L58,L77HF,L78HF,X50)
11 3-972-782-11 BUTTON, CENTER (L57.L77HF)
11 3-972-782-61 BUTTON, CENTER (L58,L78HF,X50)
12 3-979-480-01 RING, BP JOG (L58,L78HF,X50)
12 3-979-480-11 RING, BP JOG (L57.L77HF)
13 X-3946-598-1 BUTTON ASSY, FUNCTION (677HF)
13 X-3948-060-1 BUTTON ASSY, FUNCTION (L48,L68HF,X60HF)
13 X-3948-061-1 BUTTON ASSY, FUNCTION (L47,L67HF)
14 1-475-552-11 COMMANDER, STANDARD (RMT-V230)
(L47,L48)
14 1-475-553-11 COMMANDER, STANDARD (RMT-V231)
(L67HF,L68HF,X60HF)
14 1-475-553-21 COMMANDER, STANDARD (RMT-V231A)
(478,677HF,678HF)
14 1-475-553-31 COMMANDER, STANDARD (RMT-V231B)
(688HF)
14 1-475-554-11 COMMANDER, STANDARD (RMT-V232)
(L57,L58,L77HF,L78HF,X50)
15 3-709-128-01 COVER, BATTERY
(478,677HF,678HF,L67HF,L68HF,X60HF)
15 3-709-129-01 COVER, BATTERY (L57,L58,L77HF,L78HF)
15 3-709-133-01 COVER, BATTERY (L47,L48)
SLV-688HF/L57/L58/L77HF/L78HF/X50
SLV-L57/L58/L77HF/L78HF/X50
EXCEPT SLV-L57/L58/L77HF/L78HF/X50
14
7
6
6
8
15
1
3
9
13
5
4
5
11
12
10
5
9
5
not
supplied
