Bi icentitying the Parts and Controls
Refer to the pages indicated for details.

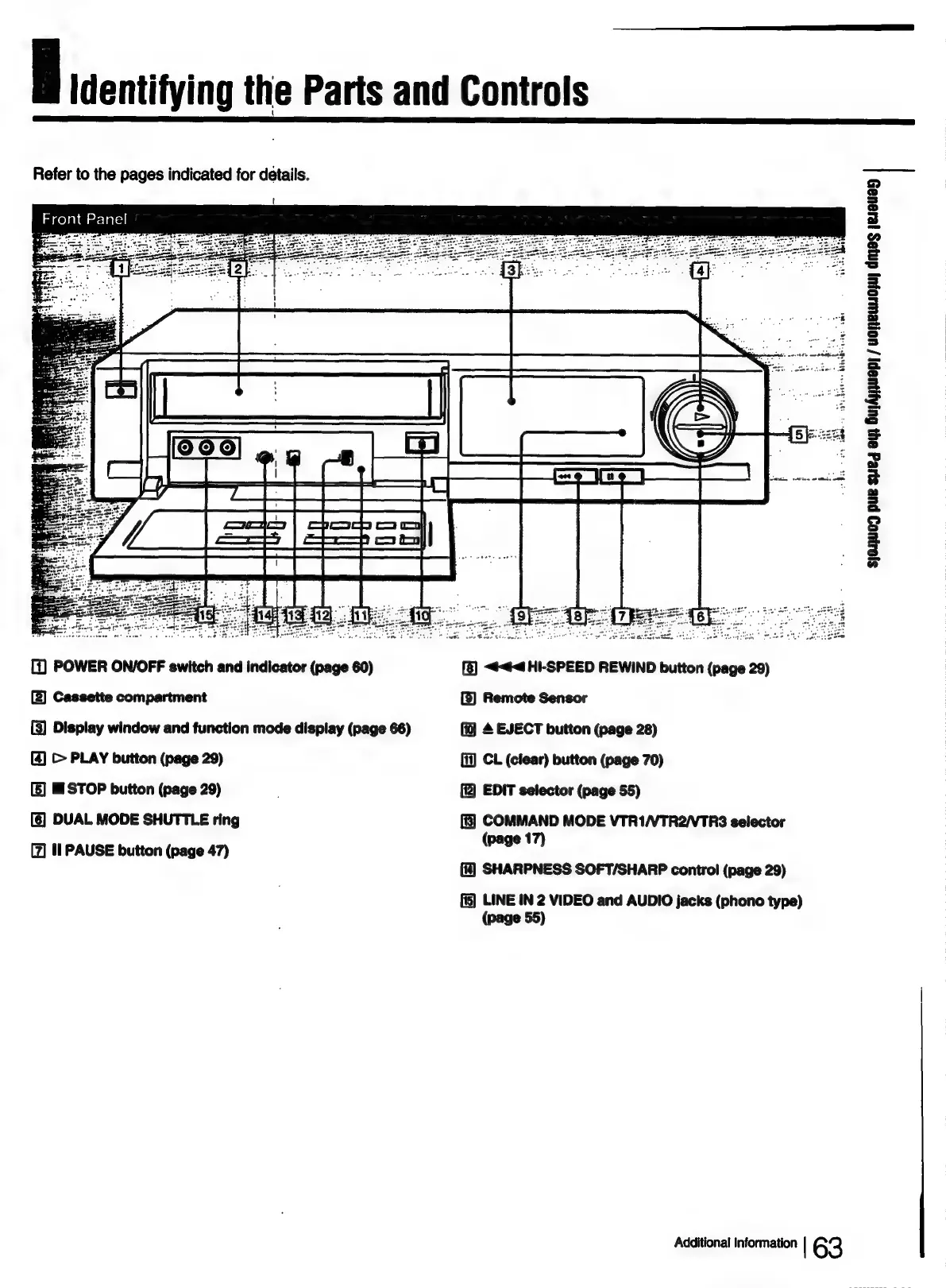

Front Panel
[) POWER ON/OFF switch and indicator (page 60)
[2] Cassette compartment
[§] Display window and function mode display (page 66)
[@] > PLAY button (page 29)
[5] H STOP button (page 29)
DUAL MODE SHUTTLE ring
[7] tl PAUSE button (page 47)
<4<4< HI-SPEED REWIND button (page 29)
Remote Sensor
4 EJECT button (page 28)
{i] CL (clear) button (page 70)
EDIT selector (page 55)
COMMAND MODE VTR1/VTR2/VTR3 selector
(page 17)
SHARPNESS SOFT/SHARP control (page 29)
LINE IN 2 VIDEO and AUDIO jacks (phono type)
(page 55)
Additional Information | 63
