Sony SLV-E325EG - SECTION 5 REPAIR PARTS LIST; 5-1. Exploded Views

5-1
SECTION 5
REPAIR PARTS LIST
5-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
SLV-E325EG/E475EG/E570EE/E570EG/E715B/E717VC/E720B/E720BZ/E720EE/
E720EG/E720EX/E720NC/E720NP/E720UX/E720VC/E720VP/E725NC

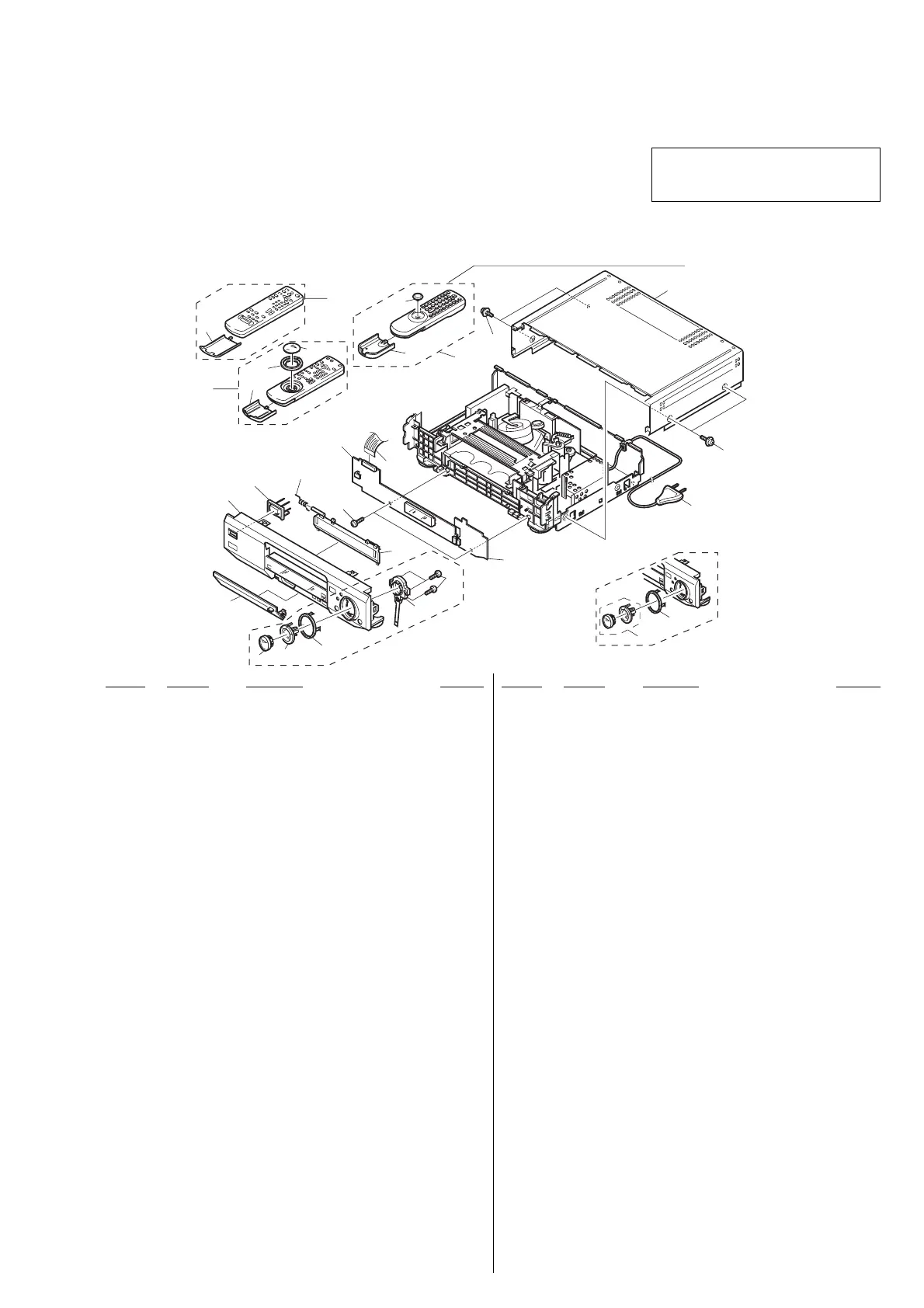

5-1-1. FRONT PANEL ASSEMBLY AND CASE
1 3-972-782-11 BUTTON, CENTER(570)
2 3-973-077-11 RING, CHANGE SPEED(570)
* 3 3-972-781-21 PLATE, RING ORNAMENTAL(EXCEPT 570)
3 3-974-511-01 PLATE, RING ORNAMENTAL(570)
4 3-970-162-31 DOOR (A), JACK
(EXCEPT 325,570,715B,717VC,720B,720BZ)
4 3-970-162-91 DOOR (A), JACK(720B,720BZ)
4 3-974-145-71 DOOR (A), JACK(570)
4 3-974-145-81 DOOR (A), JACK(325)
4 3-974-145-91 DOOR (A), JACK(717VC,725NC)
4 3-975-692-01 DOOR (A), JACK(715B)
5 X-3946-637-1 PANEL ASSY, FRONT(720VC,720VP)
5 X-3946-993-1 PANEL ASSY, FRONT(720B,720BZ)
5 X-3946-994-1 PANEL ASSY, FRONT(720NP)
5 X-3946-995-1 PANEL ASSY, FRONT(720NC)
5 X-3946-996-1 PANEL ASSY, FRONT(720EX,720UX)
5 X-3946-997-1 PANEL ASSY, FRONT(720EG)
5 X-3946-998-1 PANEL ASSY, FRONT(720EE)
5 X-3946-999-1 PANEL ASSY, FRONT(570EG)
5 X-3947-000-1 PANEL ASSY, FRONT(570EE)
5 X-3947-001-1 PANEL ASSY, FRONT(475)
5 X-3947-002-1 PANEL ASSY, FRONT(325)
5 X-3947-233-1 PANEL ASSY, FRONT(717VC)
5 X-3947-234-1 PANEL ASSY, FRONT(715B)
5 X-3947-235-1 PANEL ASSY, FRONT(725)
6 3-953-432-01 SPRING (GE), FL
7 3-972-883-01 DOOR, CASSETTE
8 3-970-608-21 SUMITITE (B3), +BV
9 3-966-213-01 BUTTON, POWER
* 10 A-6791-182-A FR-119 BOARD, COMPLETE(720VP)
* 10 A-6791-184-A FR-119 BOARD, COMPLETE(720UX)
* 10 A-6791-188-A FR-119 BOARD, COMPLETE(717VC,720VC)
* 10 A-6791-191-A FR-119 BOARD, COMPLETE(715B,720B)
* 10 A-6791-193-A FR-119 BOARD, COMPLETE(720EE)
* 10 A-6791-195-A FR-119 BOARD, COMPLETE(720EX)
* 10 A-6791-197-A FR-119 BOARD, COMPLETE(720NP)
* 10 A-6791-199-A FR-119 BOARD, COMPLETE(720NC,725)
* 10 A-6791-202-A FR-119 BOARD, COMPLETE(570EG)
* 10 A-6791-205-A FR-119 BOARD, COMPLETE(570EE)
* 10 A-6791-208-A FR-119 BOARD, COMPLETE(720EG)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 10 A-6791-209-A FR-119 BOARD, COMPLETE(720BZ)
* 10 A-6791-213-A FR-119 BOARD, COMPLETE(325)
* 10 A-6791-216-A FR-119 BOARD, COMPLETE(475)
11 1-762-844-21 SWITCH, ROTARY (570)
12 3-968-554-01 SCREW (WN1411 D2.5 EJOT K25)(570)
13 3-363-099-01 SCREW (CASE 3 TP2)
* 14 3-972-887-01 CASE (LS), UPPER (EXCEPT 715B,717VC,725)
* 14 3-972-887-11 CASE (LS), UPPER (715B,717VC,725)
! 15 1-782-012-11 CORD, POWER
* 16 A-6790-203-A DM-62 BOARD, COMPLETE
17 1-777-960-11 CABLE, FLAT (FFM-13) 29P
18 X-3946-983-1 BUTTON ASSY, FUNCTION(720B,720BZ)
18 X-3946-992-1 BUTTON ASSY, FUNCTION
(EXCEPT 570,715B,717VC,720B,720BZ,725)
18 X-3947-231-1 BUTTON ASSY, FUNCTION(717VC,725)
18 X-3947-232-1 BUTTON ASSY, FUNCTION(715B)
19 1-475-024-11 REMOTE COMMANDER (RMT-V197)
(720EG,720NC,720NP,720VC,720VP,725)
19 1-475-024-21 REMOTE COMMANDER (RMT-V197A)
(720EX,720UX)
19 1-475-024-31 REMOTE COMMANDER (RMT-V197B)
(720B,720BZ)
20 3-709-131-01 HEAD (ENGLISH), JOY STICK
(720EG,720EX,720NC,720NP,720UX,720VC,720VP,725)
20 3-709-132-01 HEAD (FRENCH), JOY STICK (720B,720BZ)
21 3-709-129-01 COVER, BATTERY
(720B,720BZ,720EG,720EX,720NC,720NP,720UX,720VC,720VP,725)
22 1-475-030-11 REMOTE COMMANDER (RMT-V199) (570EE)
22 1-475-030-21 REMOTE COMMANDER (RMT-V199A)(570EG)
23 3-972-850-01 BUTTON, FUNCTION (570EG,570EE)
24 3-973-077-31 RING, CHANGE SPEED(570EE,570EG)
25 3-709-126-01 COVER, BATTERY(570EG,570EE)
26 1-475-025-11 REMOTE COMMANDER (RMT-V198)
(475,720EE)
26 1-475-025-21 REMOTE COMMANDER (RMT-V198A)(325)
26 1-475-067-21 REMOTE COMMANDER (RMT-V198K)(715B)
26 1-475-067-11 REMOTE COMMANDER (RMT-V198J)(717VC)
27 3-709-128-01 COVER, BATTERY(325,475,715B,717VC,720EE)
4
1
2
3
11
10
12
16
15
18
3
13
13
14
17
5
9
8
7
6
EXCEPT E570EE,E570EG
E570EE,E570EG
19
21
20
26
27
22
24
23
25
E570
E720 SERIES
(EXCEPT E720EE ),E725N
C
E325,E475,E715B,E717VC,E720EE
