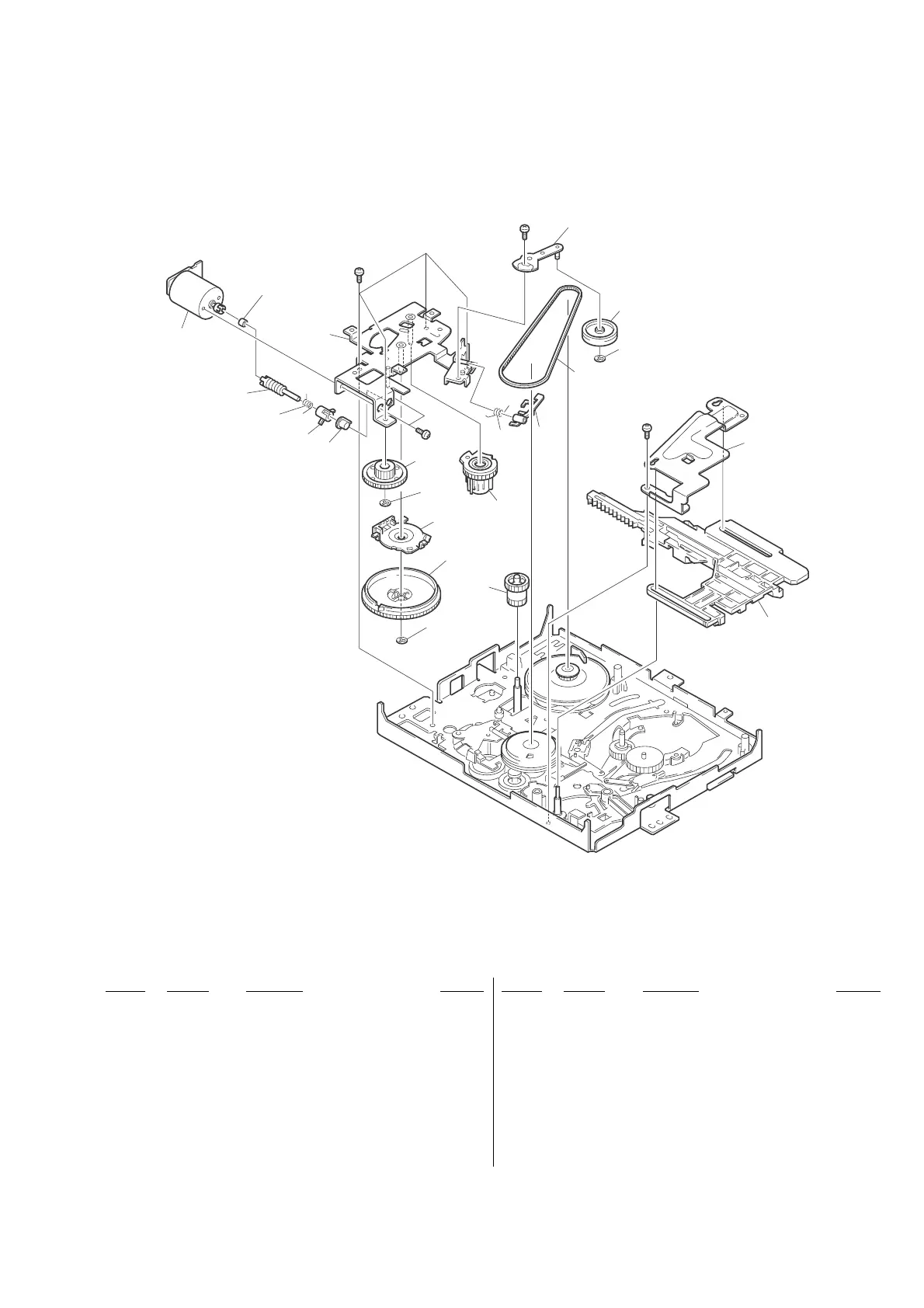

5-1-5. MECHANISM DECK ASSEMBLY-3
252 3-959-840-11 RUBBER, JOINT
253 3-958-159-01 WORM
254 3-958-460-01 SPRING, ONE-WAY
255 3-958-160-01 PROPELLOR
256 3-958-155-01 BEARING, CAM MOTOR
* 257 X-3943-884-1 CHASSIS ASSY, CAM MOTOR
258 3-958-157-02 WHEEL, WORM
259 3-669-595-00 WASHER (2), STOPPER
260 1-762-076-11 SWITCH, ROTARY
261 3-958-161-07 GEAR, CAM
Ref. No. Part No. Description
Remarks
Ref. No. Part No. Description
Remarks
262 3-958-156-03 GEAR, FL DRIVING
263 3-958-445-01 SPRING,TORSIONCOIL(CAP BRAKE)
264 X-3943-888-1 BRAKE ASSY, CAP
265 X-3943-889-1 ARM ASSY, TENSION VEHICLE
266 3-958-361-01 BELT, TIMING
267 3-958-448-01 WHEEL, TENSION
* 268 3-959-763-01 RETAINER
269 3-958-163-04 SLIDER, MAIN
270 3-958-162-02 GEAR,UPPER/LOWER COMMUNICATION
M903 X-3943-883-1 MOTOR ASSY, CAM
252
257
253
254
255
256
265
267
259
266
263
264
262
258
259
260
261
270
268
269
259
M903
#6
#6
#6
#8
To Next Page
