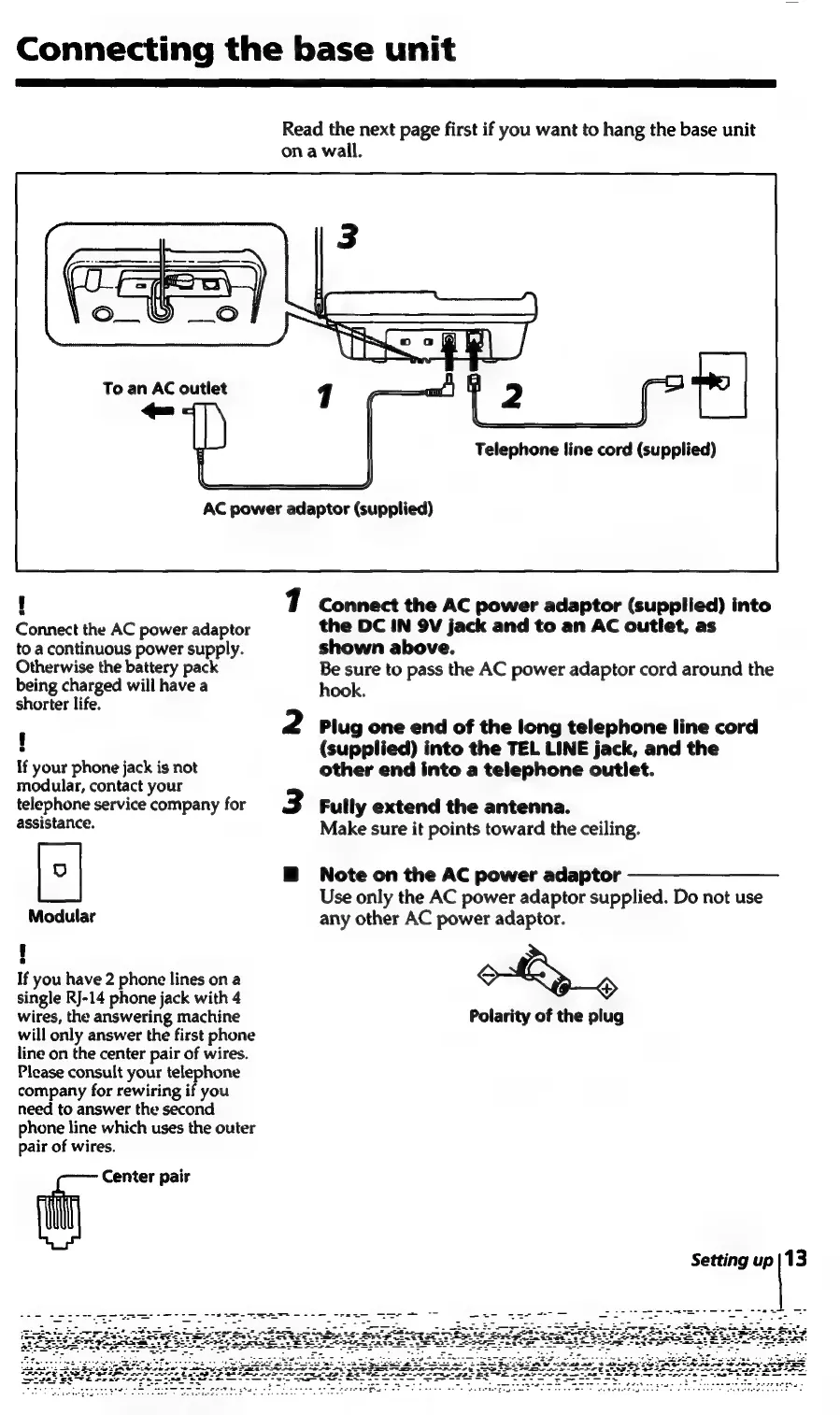

Connecting the base unit
To an AC outlet
pa
Read the next page first if you want to hang the base unit
on a wall.
Telephone line cord (supplied)
AC power adaptor (supplied)
Connect the AC power adaptor
to a continuous power supply.
Otherwise the battery pack
being charged will have a
shorter life.
s
If your phone jack is not
modular, contact your
telephone service company for
assistance.
a
Modular
'
If you have 2 phone lines on a
single RJ-14 phone jack with 4
wires, the answering machine
will only answer the first phone
line on the center pair of wires.
Please consult your telephone
company for rewiring if you
need to answer the second
phone line which uses the outer
pair of wires.
Center pair
1 Connect the AC power adaptor (supplied) into
the DC IN 9V jack and to an AC outlet, as
shown above.
Be sure to pass the AC power adaptor cord around the
hook.
Plug one end of the long telephone line cord
(supplied) into the TEL LINE jack, and the
other end into a telephone outlet.
Fully extend the antenna.
Make sure it points toward the ceiling.
Note on the AC power adaptor
Use only the AC power adaptor supplied. Do not use
any other AC power adaptor.
ots 6
Polarity of the plug
Setting up 3
