Sony SS-CHP7 - Disassembly - Inner Panels; Panel Board Disassembly (3-3); Back Panel Section Disassembly (3-4)

10
HCD-HP7

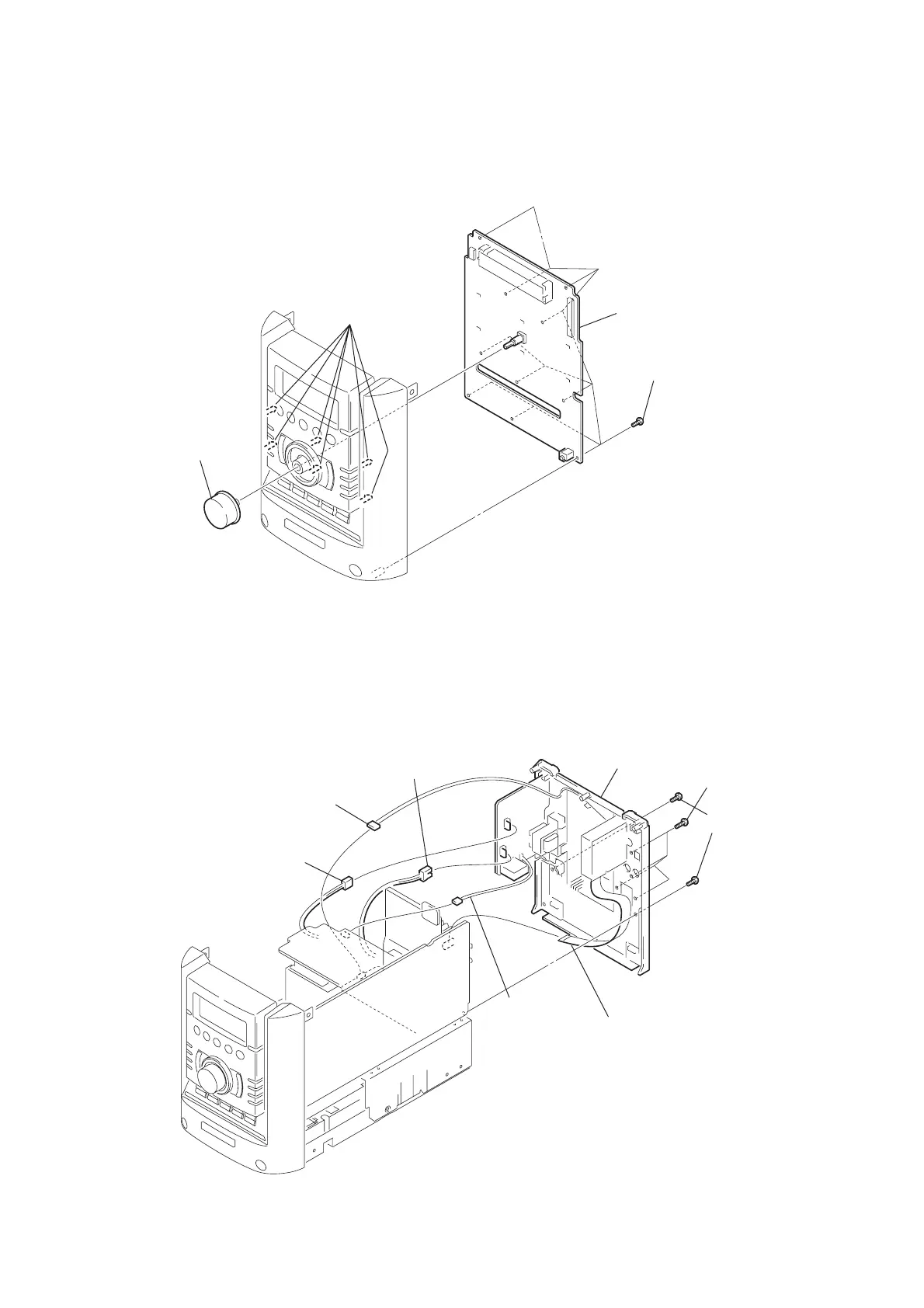

3-3. Panel Board
3-4. Back Panel Section
2 ten screws
(BVTP2.6 × 8
)
1 knob (VOL)
3 six claws
4 PANEL board
8 back panel section
3 two screws
(BVTP3 × 8)
2 four screws
(BVTP3 × 10
)
6 connector
(CN908)
5 connector
(CN905)
7 connector
(CN904)
4 connector
(CN503)
1 w ire (flat type)
11p (CN101)
