Sony SS-CHP7 - Disassembly - Switch Boards; SW Board and Bracket Assembly Disassembly (3-12)

14
HCD-HP7

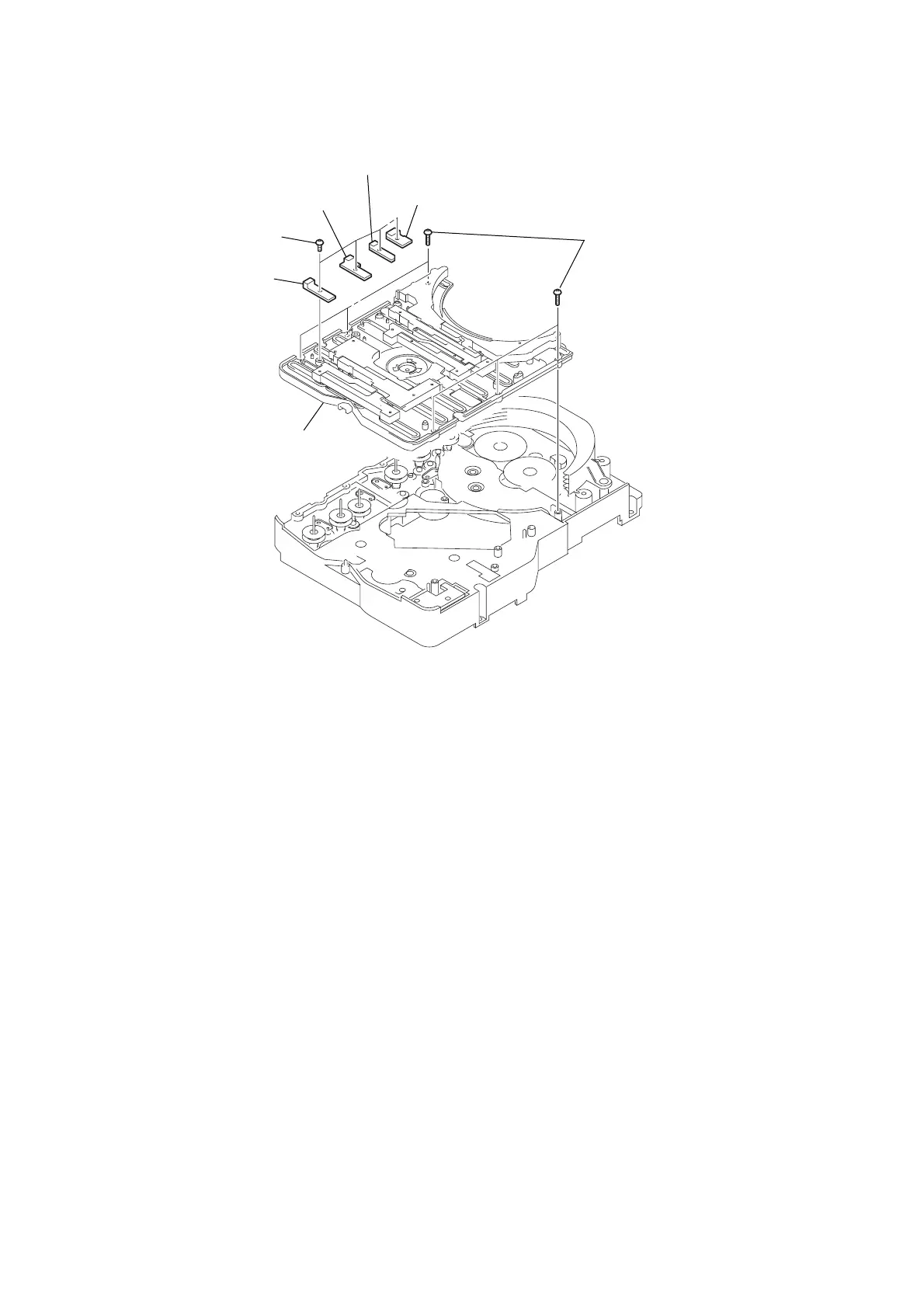

3-12. SW Board, Bracket (Top) Assy
6 six screws
(BVTP2.6 × 8
)
5 SW (4) board
4 SW (3) board
3 SW (2) board
2 SW (1) board
7 bracket (top) assy
1 four screws
(BTP2.6 × 6)
Ver 1.1 2003.11
