Sony SS-CHP7 - Disassembly - Main and Power Boards; Main Board Disassembly (3-5); Power AMP Board and Transformer Disassembly (3-6)

11
HCD-HP7

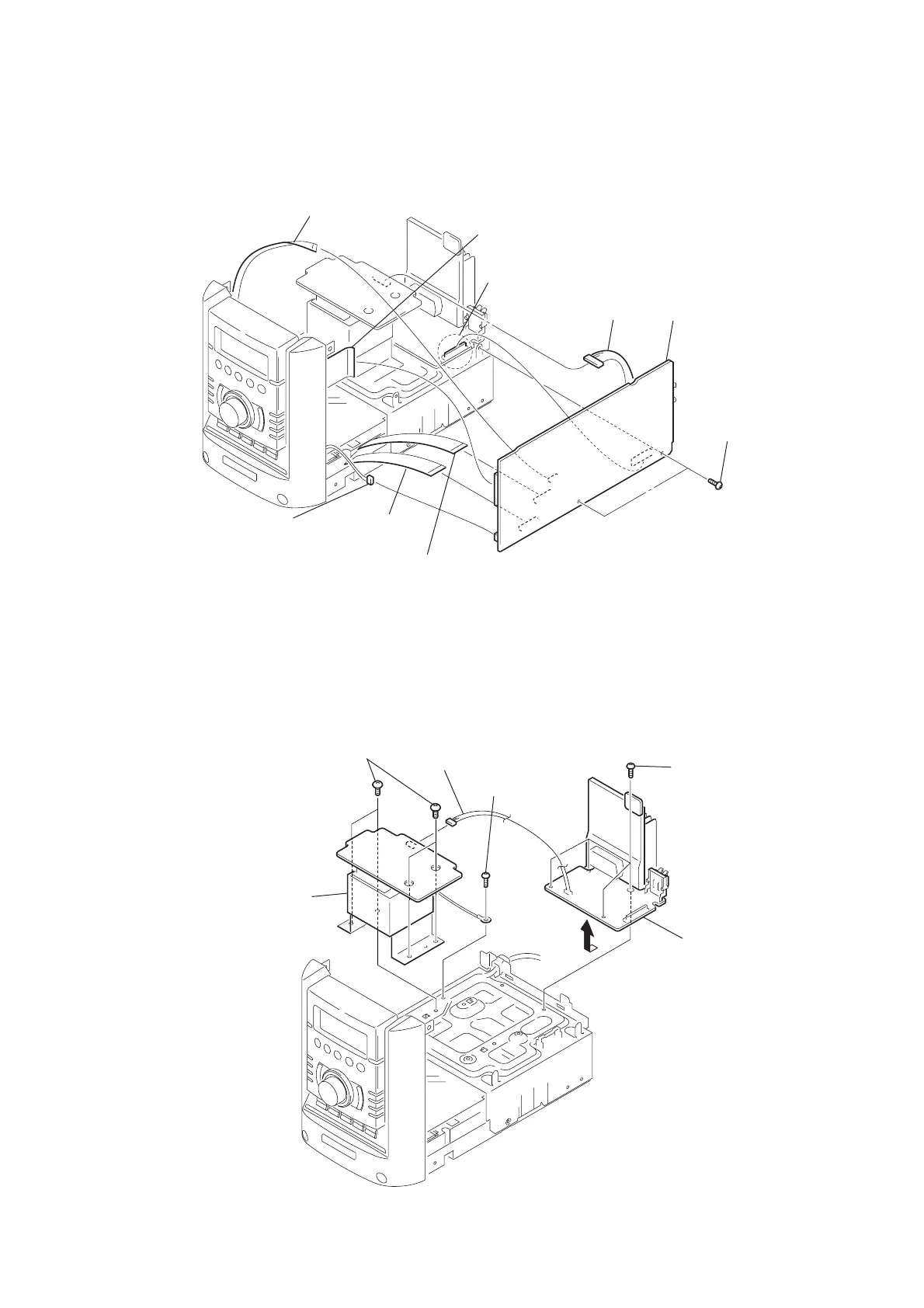

3-5. MAIN Board
3-6. PWR AMP Board, Power Transformer
3 connector
(CN404)
2 two screws
(BVTP3 × 8
)
9 MAIN board
6 w ire (flat type)
19p (CN301)
7 w ire (flat type)
27p (CN302)
1 connector
(CN907)
5 w ire (flat type)
9p (CN303)
4 w ire (flat type)
37p (CN402)
8 connector
(CN305)
2 screw
(BVTP3 × 8)
1 connector
(CN902)
3 four screws
(BVTP3 × 8)
4 PWR AMP boar
d
5 four screws
(BVTT4 × 8)
6 power transformer
