16
HCD-HP7

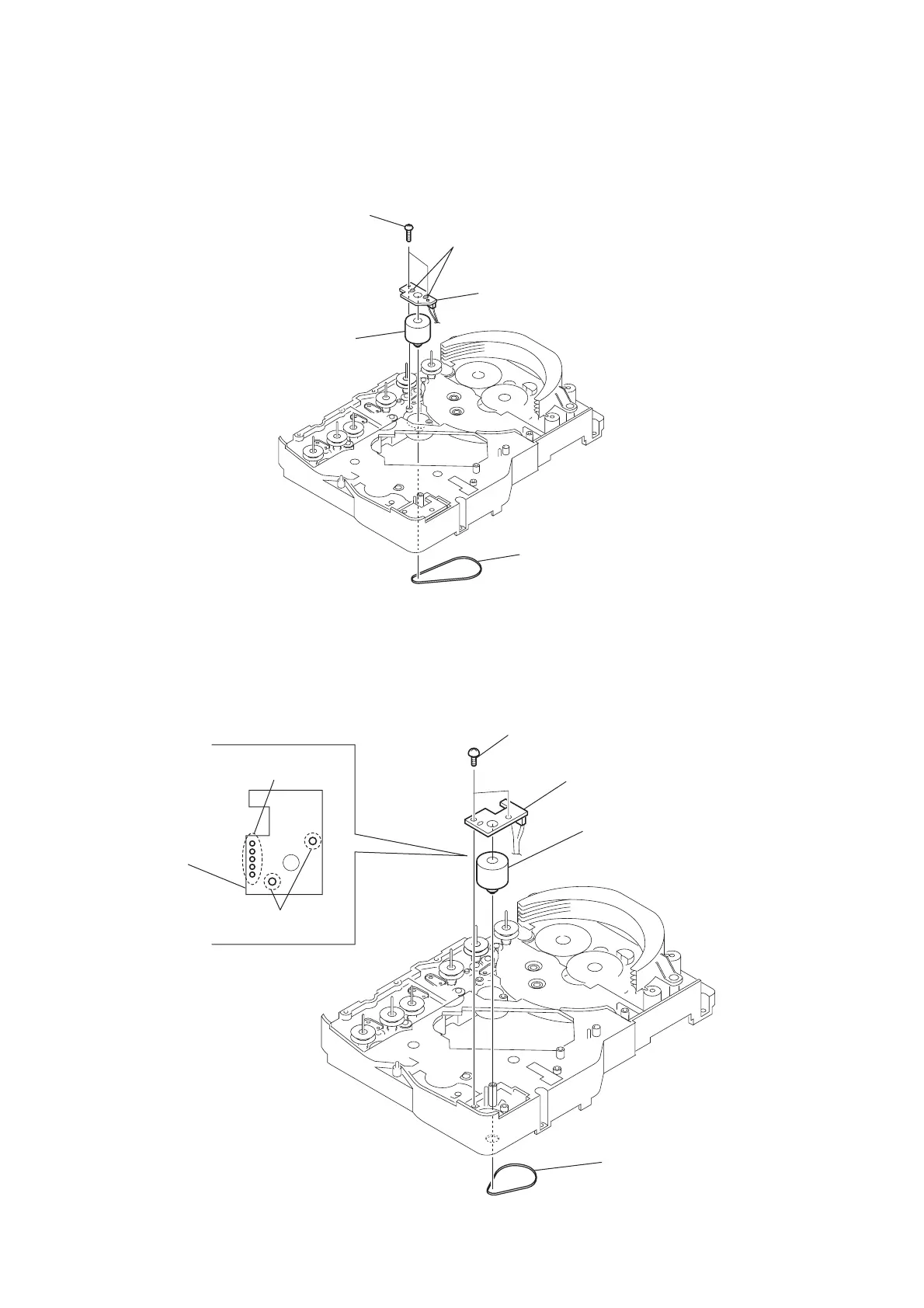

3-15. Motor (Roller) Assy (Roller)(M781)
3-16. Motor (Mode) Assy (Mode)(M771)
1 belt (roller V)
4 ROLLER MOTOR boar
d
2 Remove two solders.
3 two screws
5 motor (roller) assy
(roller)(M781)
1 Remove five solders
of rotary encoder.
2 Remove two solders
of motor (M771)
MODE MOTOR
board
3 two screws
(BVTP2.6
× 8)
4 MODE MOTOR board
5 belt (mode V)
6 motor (mode) assy
(mode) (M771)
