Sony SS-CHP7 - Assembly Procedures - Rotary Encoder and Stocker; Installing Rotary Encoder and Stocker Gear (4-5); Installing the Stocker Assembly (4-6)

21
HCD-HP7

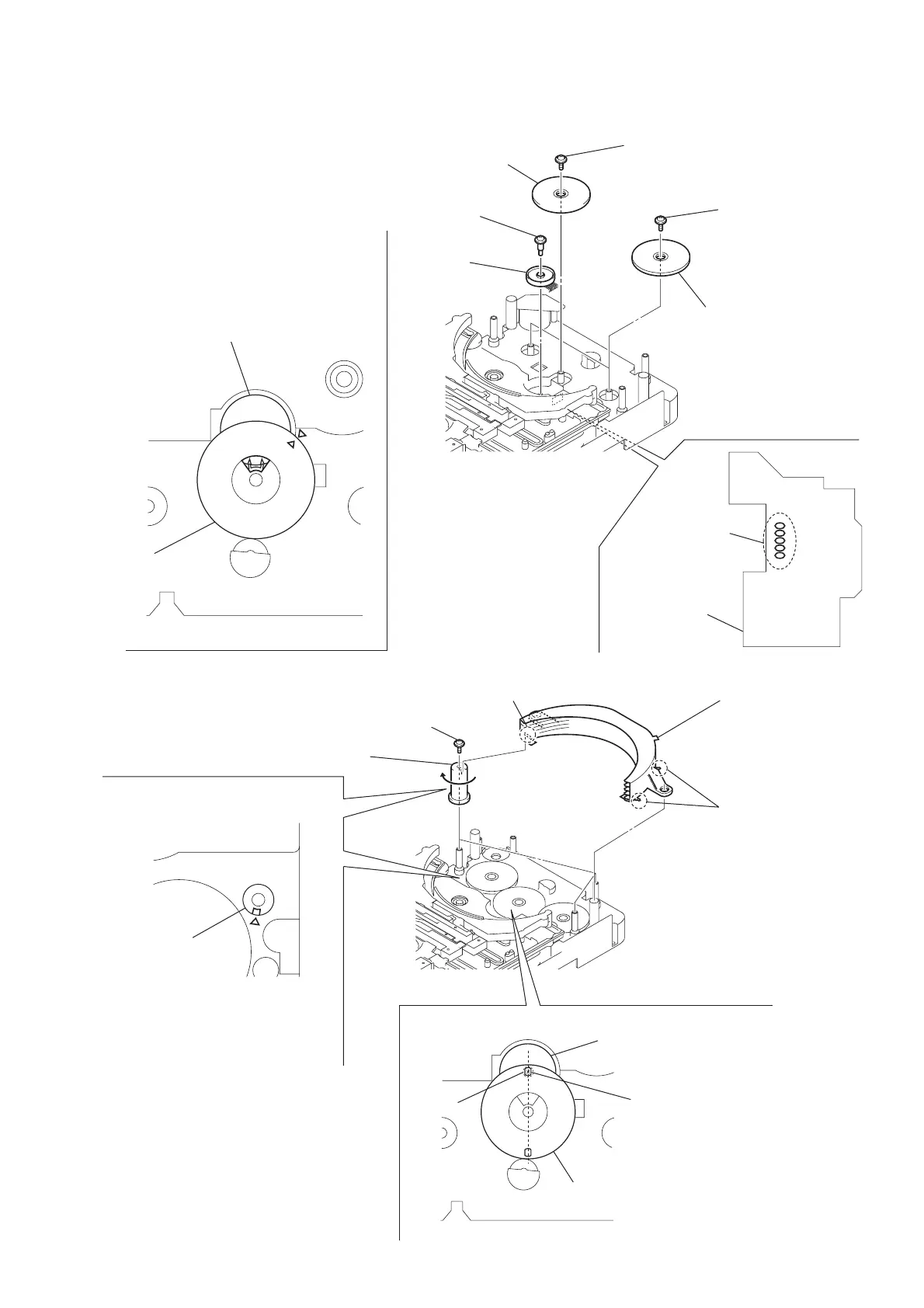

4-5. How to Install the Rotary Encoder (S702), Gear (Stocker Communication)
4-6. How to Install the Stocker Assy
2 five solders
6 two gears
(stocker communication)
4 gear
(stocker communication)
CONNECTOR board
7 two screws
(PTPWH2.6
× 8)
5 screw
(PTPWH2.6
× 8)
3 screw
(PWH2
× 6)
rotary encoder
(S702)
gear
(stocker
communication)
– rear –
1 rotary encoder
(S702)
Engage the rotary encoder (S702)
and the gear (stocker communication)
as shown below in the figure.
2 three cams
(stocker U/D)
3 three screws
(PTPWH2.6
× 8)
boss
boss
rotary encoder
(S702)
Install the stocker assy
fitting three bosses into the
each groove of cam (stocke
r
U/D) then fix by rotating
the cams in the direction
of arrow.
hole
gear
(stocker communication)
– rear –
screw
1 Position the hole on the gear
(stocker communication) on the
screw of the rotary encoder (S702).
To install three cams
(stocker U/D), align each groove
of the cam (stocker U/D)
with each
f mark on the
chassis as shown in the figure.
cam
(stocker U/D)
