Sony STR-D2010 - Chassis Assembly

STR-D2010

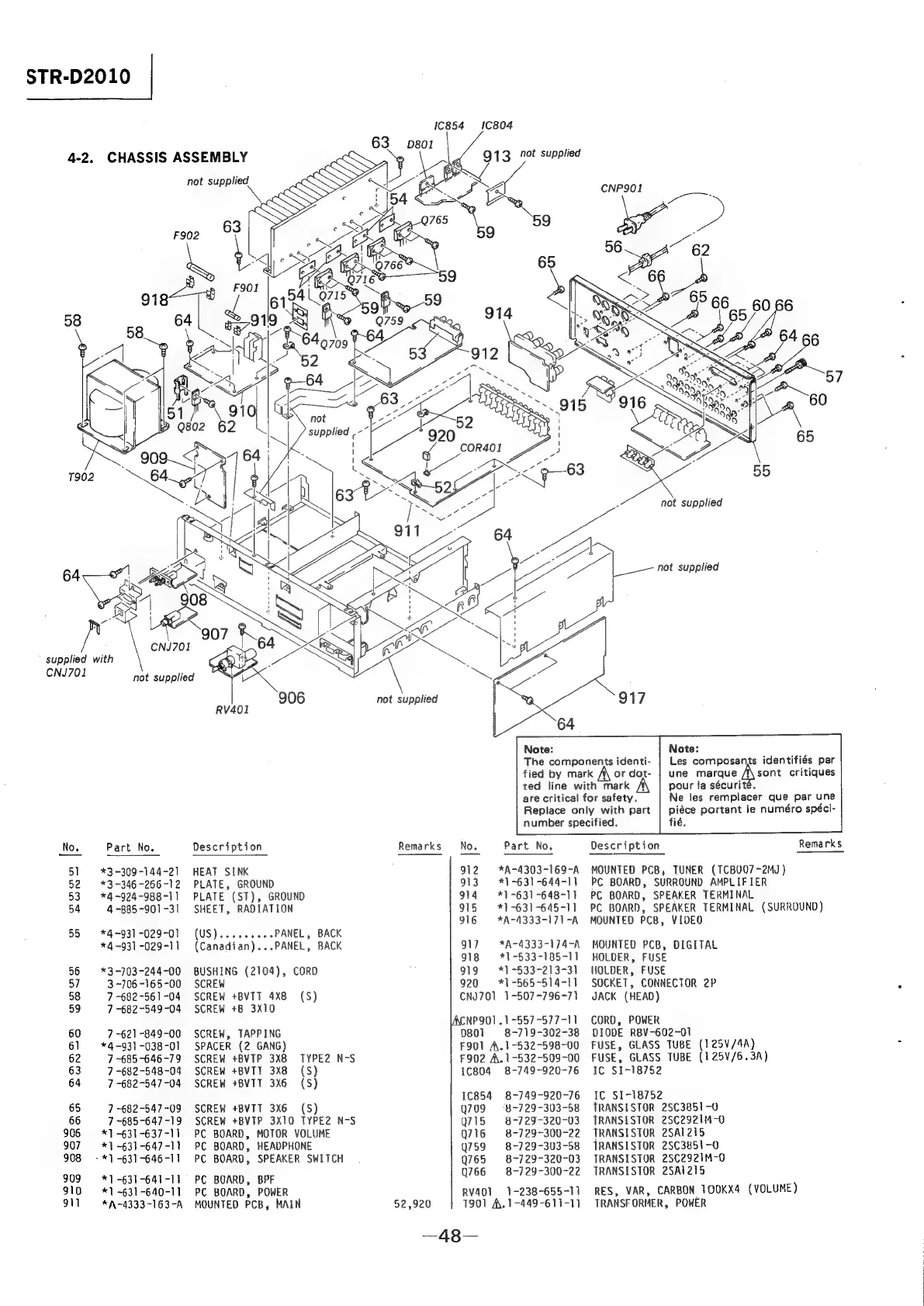

4-2. CHASSIS ASSEMBLY
64
supplied with
Bee
Q802
1C854
not supplied
10804
913 not supplied
CNP901
not supplied
not supplied
CNJ701
not supplied 917
Note: Note:
The components identi- | Les composants identifiés par
fied by mark or dot- | une marque sont critiques
ted line with mark pour fa sécurité.
are critical for safety. Ne les remplacer que par une
Replace only with part | piéce portant le numéro spéci-
number specified. fié.
Now
Part
No.
Description
Remarks
No.
Part
No.
Description
Remarks
5] *3-309-144-21 HEAT SINK 912 *A-4303-169-A MOUNTED PCB, TUNER (TCBUO7-2Md )
52
*3~-346-266-12
PLATE,
GROUND
913
*1-631-644-11
PC
BOARD,
SURROUND
AMPLIFIER
53 *4~-924-988-11 PLATE (ST), GROUND 914 *1-631-648-11 PC BOARD, SPEAKER TERMINAL
54 4-885-901-31 SHEET, RADIATION 915 *1-631-645-11 PC BOARD, SPEAKER TERMINAL (SURROUND)
916 *A-4333-171-A MOUNTED PCB, VIDEO
55 *4-931-029-01 (US).........PANEL, BACK
*4-931-029-11 (Canadian)...PANEL, BACK 917 *A~-4333-174-A MOUNTED PCB, DIGITAL
918 *1-533-185-11 HOLDER, FUSE
56 *3-703-244-00 BUSHING (2104), CORD 919 *]-§33-213-31 WOLDER, FUSE
57 3-706-165-00 SCREW 920 *1-565-514-11 SOCKET, CONNECTOR 2P
58 7 -682-561-04 SCREW +BVTT 4X8 (S) CNJ701 1-507-796-71 JACK (HEAD)
59 7 -682~549-04 SCREW +B 3X10
NP901.1~-557-577-11 CORD, POWER
60 7 -621-849-00 SCREW, TAPPING 0801 8-719-302-38 DIODE RBV-602-01
61
*4-931-038-01
SPACER
(2
GANG)
F901
A.1-532-598-U0
FUSE,
GLASS
TUBE
(125V/4A)
62 7 -685-646-79 SCREW +BVTP 3X8 TYPE2 N-S F902 A.1-532-509-00 FUSE, GLASS TUBE (1 25V/6.3A)
63 7 -682-548-04 SCREW +BVTT 3X8 (S) {C804 8-749-920-76 IC S1-18752
64 7-682-547-04 SCREW +BVTT 3X6 (S)
1C854 8-749-920-76 IC S1-18752
65 7 ~682-547-09 SCREW +BVTT 3X6 (S) Q709 =: 8-729-303-58 TRANSISTOR 25C3851-0
66 7-685-647-19 SCREW +BVTP 3X10 TYPE2 N-S Q715 8-729-320-03 TRANSISTOR 2S5C¢2921M-0
906 *1-631-637-11 PC BOARD, MOTOR VOLUME Q716 8-729-300-22 TRANSISTOR 2SA1215
907
*1-631-647-11
PC
BOARD,
HEADPHONE
Q759
8
-729-303-58
TRANSISTOR
25C3851-0
908
=
*1
-631-646-11
PC
BOARD,
SPEAKER
SWITCH
Q765
8-729-320-03
TRANSISTOR
2SC2921M~0
909 *1-631-641-11 PC BOARD, BPE Q766 8-729-300-22 TRANSISTOR 2SA1}215
910 *1~§31-640-11 PC BOARD, POWER RV401_ 1-238-655-11 RES, VAR, CARBON 1OOKX4 (VOLUME )
911 *A-4333-163-A MOUNTED PCB, MAIN 52,920 T901 A.1-449-611-11 TRANSFORMER, POWER
