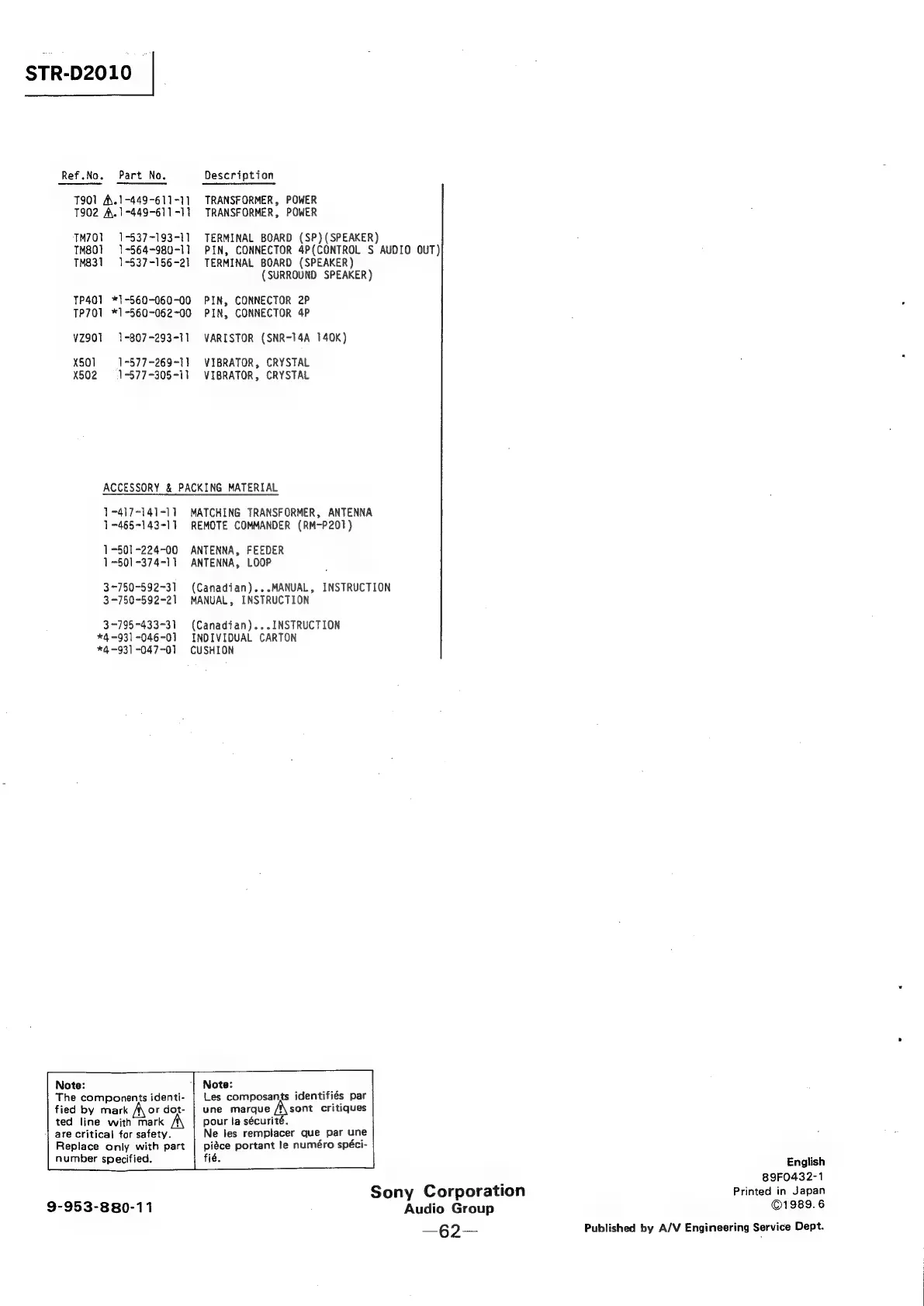

Sony STR-D2010 - Page 50

STR-D2010
Ref.No. Part No. Description
T901 A.1-449-611-1] TRANSFORMER, POWER
7902 A.17449-611-11 TRANSFORMER, POWER
TM701 1-537-193-11 TERMINAL BOARD (SP) (SPEAKER)
TM801 1-564-980-1]1 PIN, CONNECTOR 4P(CONTROL S AUDIO OUT)
TM831 1-537-156-21 TERMINAL BOARD (SPEAKER)
(SURROUND SPEAKER)
TP401 *1-560-060-00 PIN, CONNECTOR 2P
TP701 *1-560-062-00 PIN, CONNECTOR 4P
VZ901 1-807-293-11 VARISTOR (SNR-14A 140K)
x50] 1-577-269-11 VIBRATOR, CRYSTAL
X502) =: 1-577-305-11 VIBRATOR, CRYSTAL
ACCESSORY & PACKING MATERIAL
17417-141-11 MATCHING TRANSFORMER, ANTENNA
1-465-143-1171 REMOTE COMMANDER (RM-P20T)
1-501-224-00 ANTENNA, FEEDER
1-501-374-11 ANTENNA, LOOP
3~750-592-31 (Canadian)...MANUAL, INSTRUCTION
3-750-592-21 MANUAL, INSTRUCTION
3-795-433-31 (Canadian)... INSTRUCTION
*4-931-046-01 INDIVIDUAL CARTON
*4-931-047-01 CUSHION
Note: ‘| Note:
The components identi- | Les composants identifiés par
fied by mark A\or dot- | une marque /f\sont critiques
ted line with mark pour la sécurité.
are critical for safety. Ne les remplacer que par une
Replace only with part | piéce portant le numéro speci-
number
specified.
fié.
