Getting Started

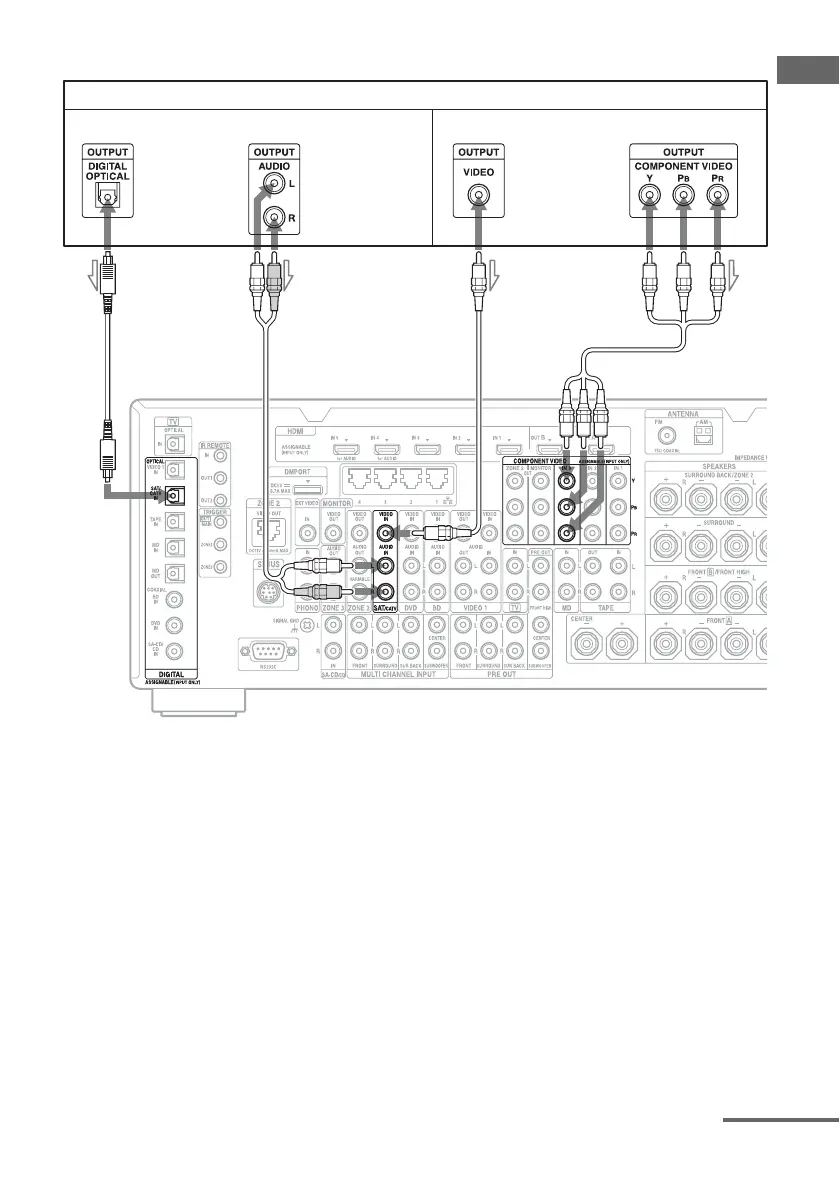

To connect a satellite tuner, cable box

A Optical digital cord (not supplied)

B Audio cord (not supplied)

C Video cord (not supplied)

D Component video cord (not supplied)

Note

Before connecting cords, make sure to disconnect

the AC power cord (mains lead).

Satellite tuner, Cable box

AB C D

Audio signals Video signals

or or

continued
