Connect the supplied AM loop antenna and FM wire antenna.
* The shape of the connector varies depending on the area code.
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
• Do not use the U SIGNAL GND terminal for grounding the receiver.
2: Connecting the antennas
DIGITAL
ANTENNA ANALOG VIDEO
COMPONENT VIDEO
SA-CD/
CD
TV/SAT
IN
IN
PHONO
IN
OUT
OUT
IN
IN
IN
OUT
SURR
FRONT
SUB WOOFER CENTER
SA-CD/
CD
IN
IN
OUT
MD/
TAPE
DVD
IN
MONITOR
OUT
DVD
IN
TV/
SAT
IN
MD
IN
DVD
MD
OUT
AM
L
R
L
R
L
R
L
R
L
R
L
R
Y
SIGNAL
GND
OPTICAL
MONITOR
VIDEO
1
VIDEO
2
DVD
TV/
SAT
COAXIAL
MULTI CH IN AUDIO VIDEO S-VIDEO
COAXIAL IN
CONTROL
A1 II
P B /C B
/B−Y
P
R /C R
/R−Y
*

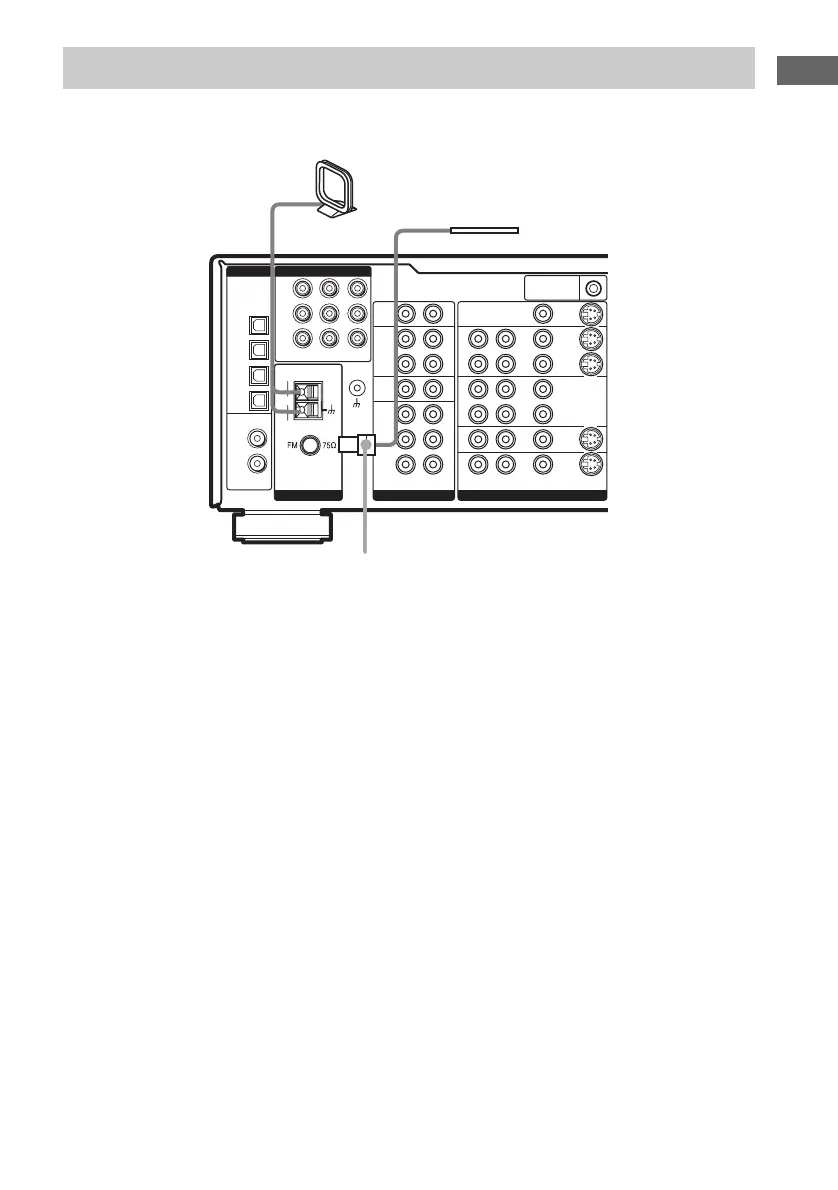

AM loop antenna
(supplied)
FM wire antenna
(supplied)

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
