Additional Information
Main unit
A.F.D. qg (30, 32, 54)
DIRECT q; (29)
DISPLAY 7 (26, 55)
Display 5 (27)
INPUT MODE 8 (35)
INPUT SELECTOR qs (21, 22,
23, 29, 35, 38, 41)
IR receptor 1 (45, 55)
MAIN MENU 3 (17, 35, 37, 41)
MASTER VOLUME –/+ 9 (20,
21)
MEMORY/ENTER 4 (16, 17,
23, 41)
MENU ws (17, 19, 35, 37, 41)
MOVIE qf (31, 32, 54)
MULTI CHANNEL DECODING
indicator 6 (21)
MULTI CH IN qa (21)
MUSIC qd (32, 54)
PHONES jack wd (53)
PRESET TUNING –/+ ql (23)
SPEAKERS (OFF/A/B/A+B) wf
(15, 42, 54)
SURR BACK DECODING qj
(33)
TUNING –/+ qk (22)
VIDEO 3 INPUT jacks wa (12)
2CH qh (29, 32)
–/+ w; (17, 35, 37, 41)
?/1 (power) 2 (16, 17, 36)

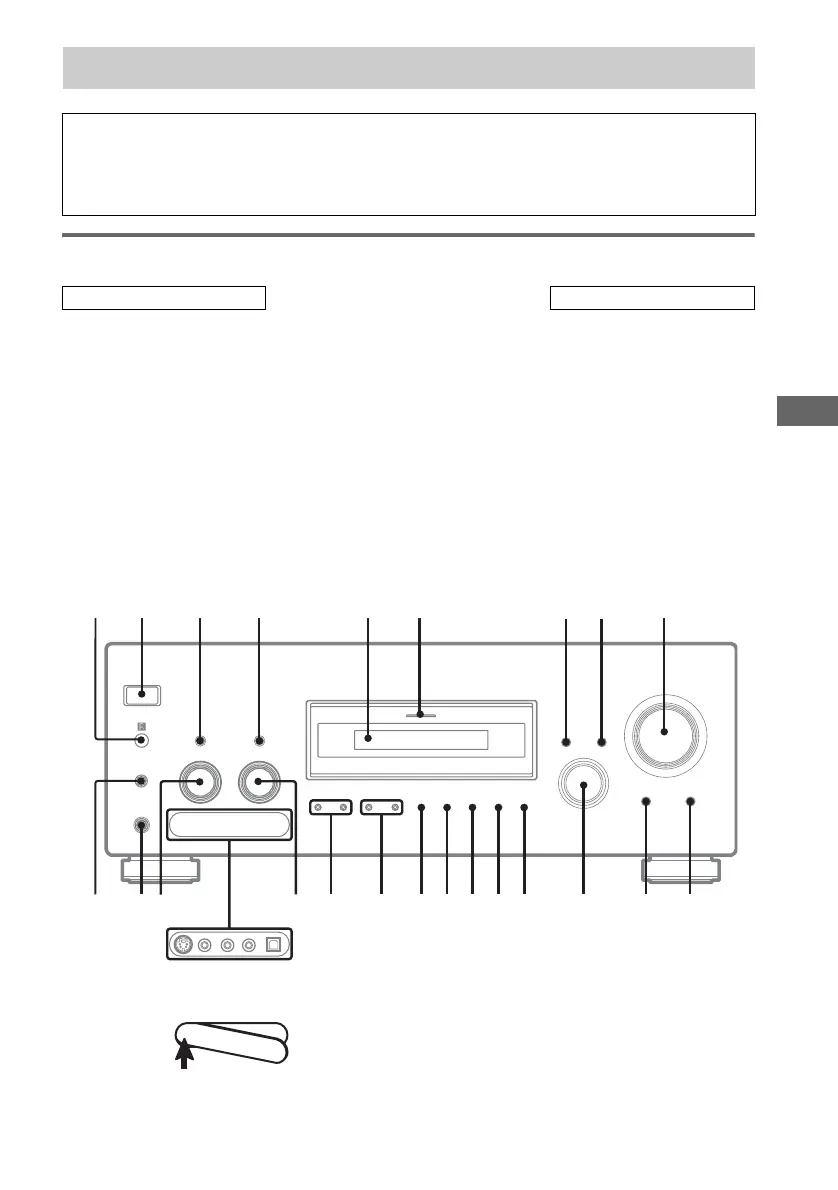

List of button locations and reference pages
How to use this page
Use this page to find the location of buttons and other
parts of the system that are mentioned in the text.
Ill
us
t
ra
ti
on num
b
er
r
DISPLAY 7 (26, 55)
RR
Name of button/part Reference page
ALPHABETICAL ORDER
NUMBERS AND SYMBOLS
P
U
S
H
2
8
96534
7
1
wawf wdws w; qk qj qh qg qf qd qs q;qaql
To remove the cover
Press PUSH to remove the cover. When you remove the
cover, keep the cover out of reach of the children.

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
