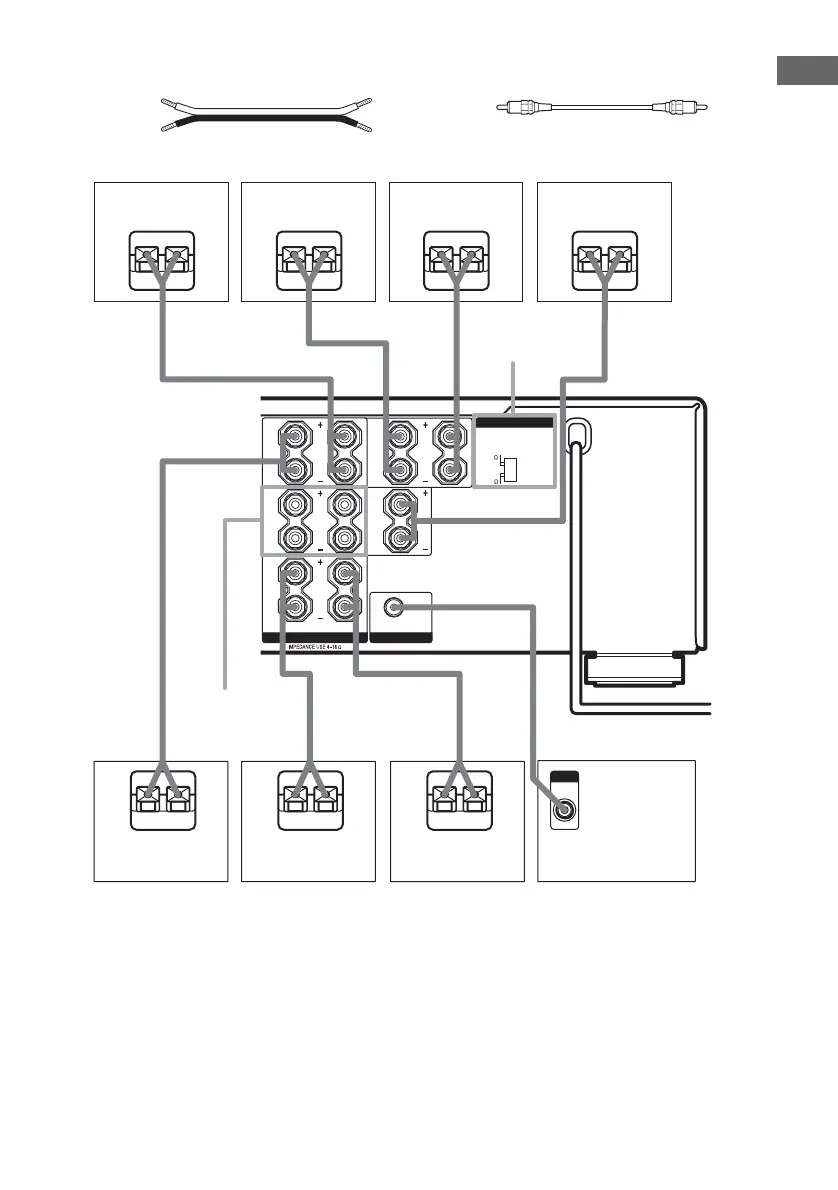

Required cords
A Speaker cords (not supplied)
(+)
B Monaural audio cord (not supplied)
Black
(–)
* If you have an additional front speaker system, connect them to the SPEAKERS FRONT B terminals. You can
select the front speakers you want to use with SPEAKERS (OFF/A/B/A+B) button. For details, see “Selecting the
speaker system” (page 42).
** If you connect only one surround back speaker, connect it to the SPEAKERS SURR BACK L terminal.
SPEAKERS SUB WOOFER
AC OUTLET
IMPEDANCE SELECTOR
AUDIO OUT
L
R
L
R
L
R
L
R
FRONT
B
CENTER
4
8
Ee
AA
Ee
A
Ee
A
Ee
SPEAKERS
FRONT B*
IMPEDANCE
SELECTOR
E e
A
E e
A
INPUT
AUDIO
IN
B
E e
A
FRONT
A
SURR
SURR
BACK
Surround speaker
(Right)
Surround speaker
(Left)
Sub woofer
Surround back
speaker (Right)**
Surround back
speaker (Left)**
Center speaker
Front speaker
(Left)
Front speaker
(Right)

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
