4
GB
Before you get started

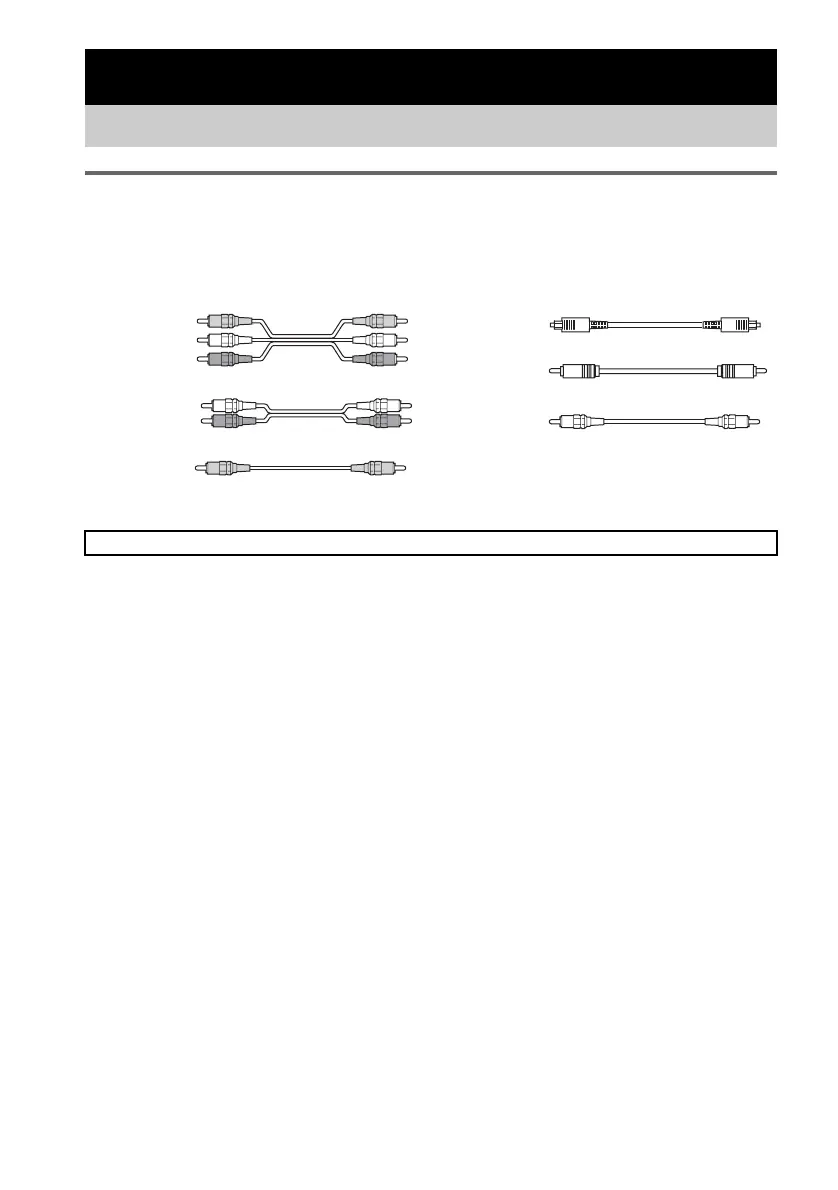

The hookup diagrams in this chapter assume the use of the following optional connection cords ((a) to
(f), not supplied).
(a) Audio/video cord
Yellow (video)
White (L/audio)
Red (R/audio)
(b) Audio cord
White (L)
Red (R)
(c) Video cord
Yellow
(d) Optical digital cord
(e) Coaxial digital cord
(f) Monaural audio cord
Black
Tip
The audio cord (b) can be split into two monaural
audio cords (f).
Notes
• Be sure to make connections firmly to avoid humming and noise.
• When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jack on the
components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.
• When connecting optical digital cords, insert the cord plugs in straight until they click into place.
• Do not bend or tie optical digital cords.
Hooking up Components
Required cords
Turn off the power to all components before making any connections.
To Next Page
