Hooking up Components
7
GB

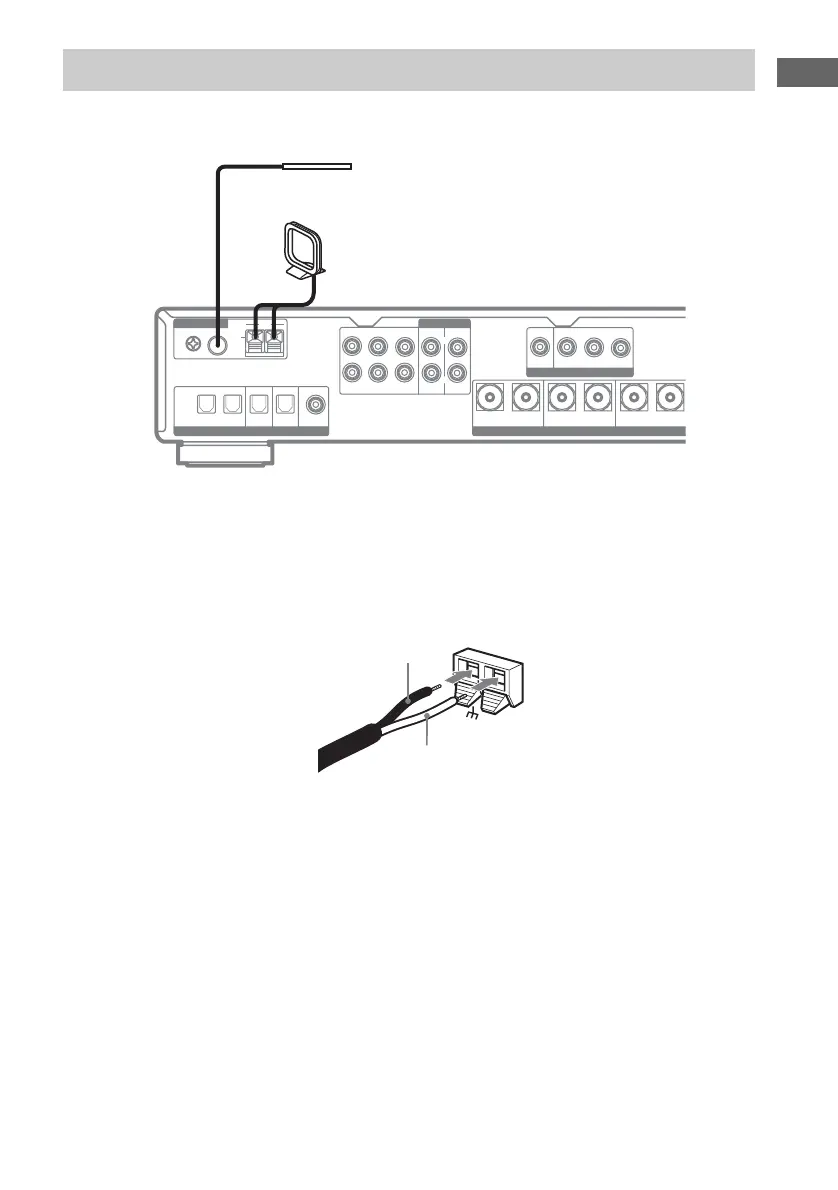

Connect the supplied AM loop antenna and FM wire antenna as shown below.
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
• When you connect the supplied AM loop antenna, connect the black cord (A) to the
U terminal, and the white cord
(B) to the other terminal.
Connecting the antennas
MONITOR
IN
DVD
IN
DVD
IN
TV/SAT
IN
HDD/MD
OUT
HDD/MD
COAXIALOPTICAL
SURROUND CENTER
DVD DVDTV/SATVIDEO VIDEO
SUB WOOFER
IN IN
INININOUT
FRONT
R
L
R
L
MULTI CH IN
DIGITAL SPEAKER
COAXIAL
75Ω
AM
FM
U
+–
SURROUND BACK
+–
SURROUND R
+–
SURROUND L
VIDEO
ANALOGANTENNA
AM loop antenna
(supplied)
FM wire antenna
(supplied)
A
B
AM
To Next Page
