Sony STR-DB900 Operating Instructions

Hooking up Components
5
GB
If you connect your TV to the MONITOR jack, you can watch video images from the selected input
source (page 17).
For details on the required cords ((a) to (f)), see page 4.
* Use digital connections for audio signals. Connect the digital output jack of your satellite tuner to this
system’s TV/SAT OPT IN jack (see page 6).
**If you have the sound of the DVD player, VCR or satellite tuner going through the TV monitor, connect
the analog audio output jacks of the TV monitor to the ANALOG VIDEO IN L/R jacks. The sound of the
DVD player, VCR or satellite tuner will output to the speakers connected to the receiver.

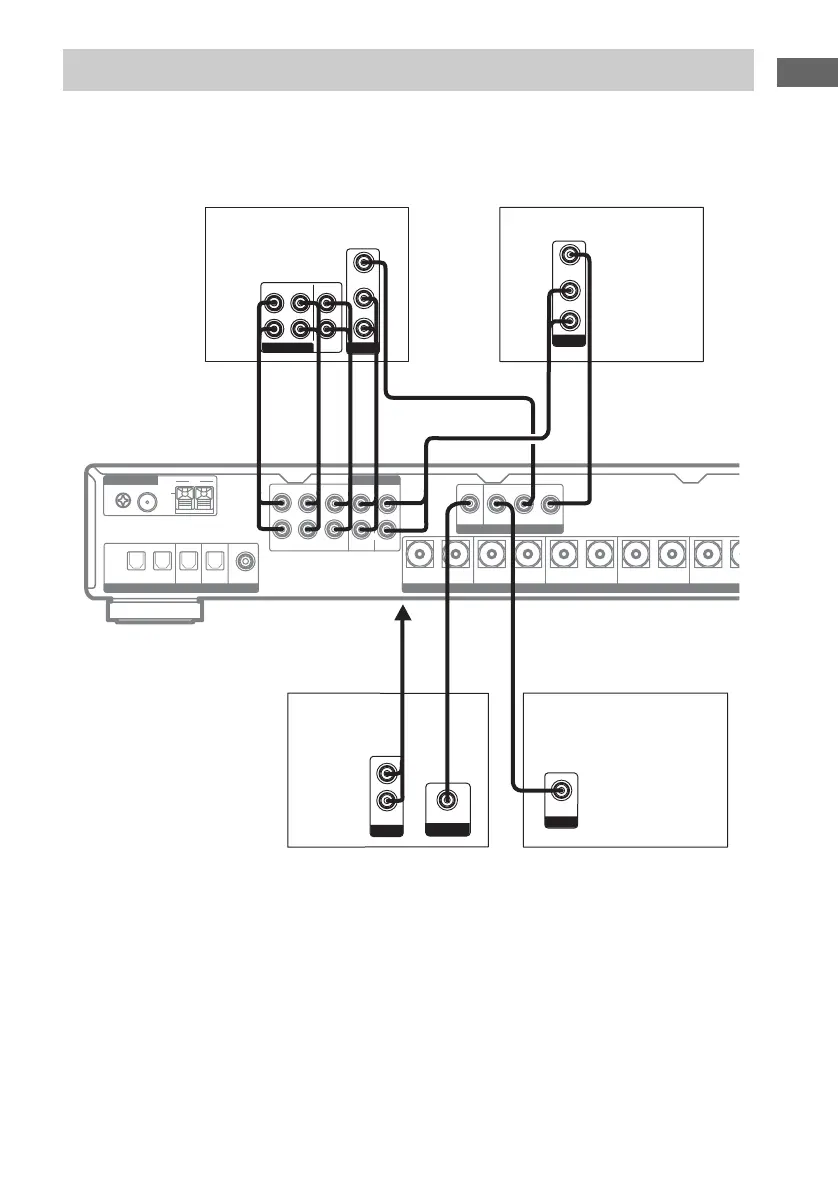

Connecting analog components
INPUT
MONITOR IN
(a)
(a)
(a)
(c)
(c)
AUDIO OUT
VIDEO OUT
OUTPUT
L
R
VIDEO OUT
OUTPUT
AUDIO OUT
VIDEO OUT
OUTPUT
L
R
L
R
MULTI CH OUT
FRONT SURROUND CENTER
SUB
WOOFER
(b)
(b) (f)
(a)
AUDIO OUT
OUTPUT
L
R
(a)**
MONITOR
IN
DVD
IN
DVD
IN
TV/SAT
IN
HDD/MD
OUT
HDD/MD
COAXIALOPTICAL
SURROUND CENTER
DVD DVDTV/SATVIDEO VIDEO
SUB WOOFER IN IN
INININOUT
FRONT
R
L
R
L
MULTI CH IN
DIGITAL SPEAKERS IMPEDANCE USE 4-16 Ω
COAXIAL 75Ω
AM
FM
U
+–
SURROUND BACK
+–
SURROUND R
+–
SURROUND L
+–
CENTER
–
FRONT R
VIDEO
ANALOGANTENNA
TV monitor
DVD player
Satellite tuner*
VCR
**
To the ANALOG VIDEO
IN L/R jacks
