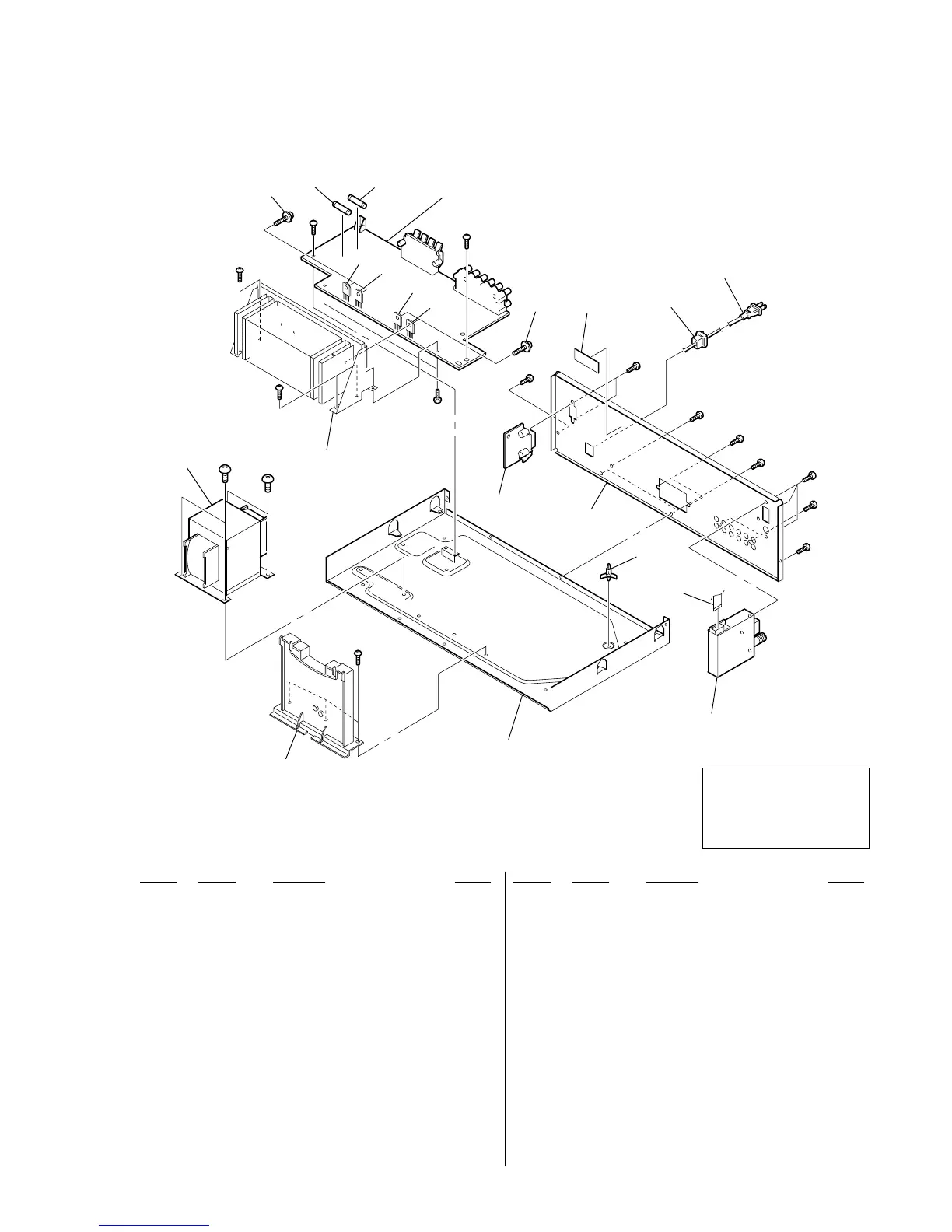

Sony STR-DE185 - Chassis Exploded View

23
STR-DE185
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-905-609-01 SCREW (TRANSISTOR)
102 A-4727-875-A MAIN BOARD, COMPLETE (US)
102 A-4727-881-A MAIN BOARD, COMPLETE (AEP,UK)
* 103 3-703-044-26 LABEL, CAUTION (US)
104 3-703-244-00 BUSHING (FBS001), CORD
0 105 1-769-744-11 CORD, POWER (AEP,UK)
0 105 1-783-820-11 CORD, POWER (US)
106 1-683-818-11 OUTLET BOARD
107 4-238-277-01 PANEL (DE1), BACK (US)
107 4-238-277-11 PANEL (DE1), BACK (AEP)
107 4-238-277-21 PANEL (DE1), BACK (UK)
108 4-924-098-01 HOLDER, PC BOARD
109 1-769-943-11 WIRE (FLAT TYPE) (11 CORE) (US)
109 1-773-007-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
0 F901 1-532-464-31 FUSE (T2.5A/250V) (AEP,UK)
0 F901 1-576-109-11 FUSE (5A/125V) (US)
5-3. CHASSIS SECTION
101
101
102
103
104
105
106
107
108
109
T901
#3
#3
#2
#2
#1
F902
F901
#1
#2
Q703
Q704
Q753
Q754
#1
#1
#1
#1
#1
#1
#1
#1
TM301
#1
not supplied
not supplied
not supplied
0 F902 1-532-464-31 FUSE (T2.5A/250V) (AEP,UK)
0 F902 1-576-109-11 FUSE (5A/125V) (US)
Q703 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q704 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q753 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q754 8-749-010-26 TRANSISTOR MP1620-OPY-M
0 T901 1-437-625-11 TRANSFORMER, POWER (US)
0 T901 1-437-626-11 TRANSFORMER, POWER (AEP,UK)
TM301 1-693-533-11 TUNER (FM/AM) (ANTENNA) (AEP,UK)
TM301 1-693-534-71 TUNER (FM/AM) (ANTENNA) (US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
#3 7-685-880-09 SCREW +BVTT 4X6 (S)
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
