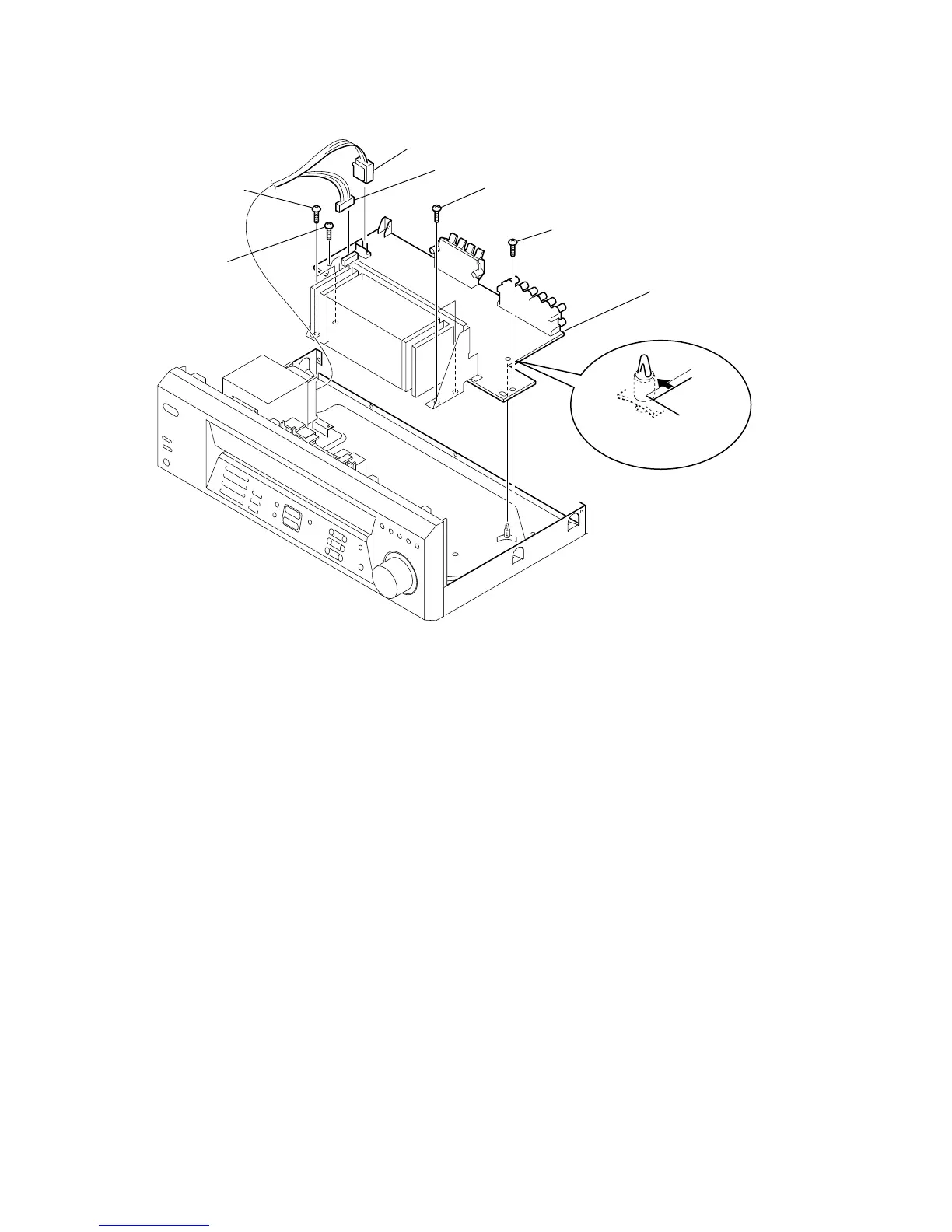

2-4. MAIN BOARD
4
two screws
(BVTP3 x 8)
5
screw
(BVTP3 x 8)
8
MAIN board
6
screw
(BVTP3 x 8)
7
3
two screws
(BVTP3 x 8)
1
CNP904
2
CNP905
