Sony STR-DE445 - Printed Wiring Board - Digital Section

STR-DE445/DE545/SE501
10 10

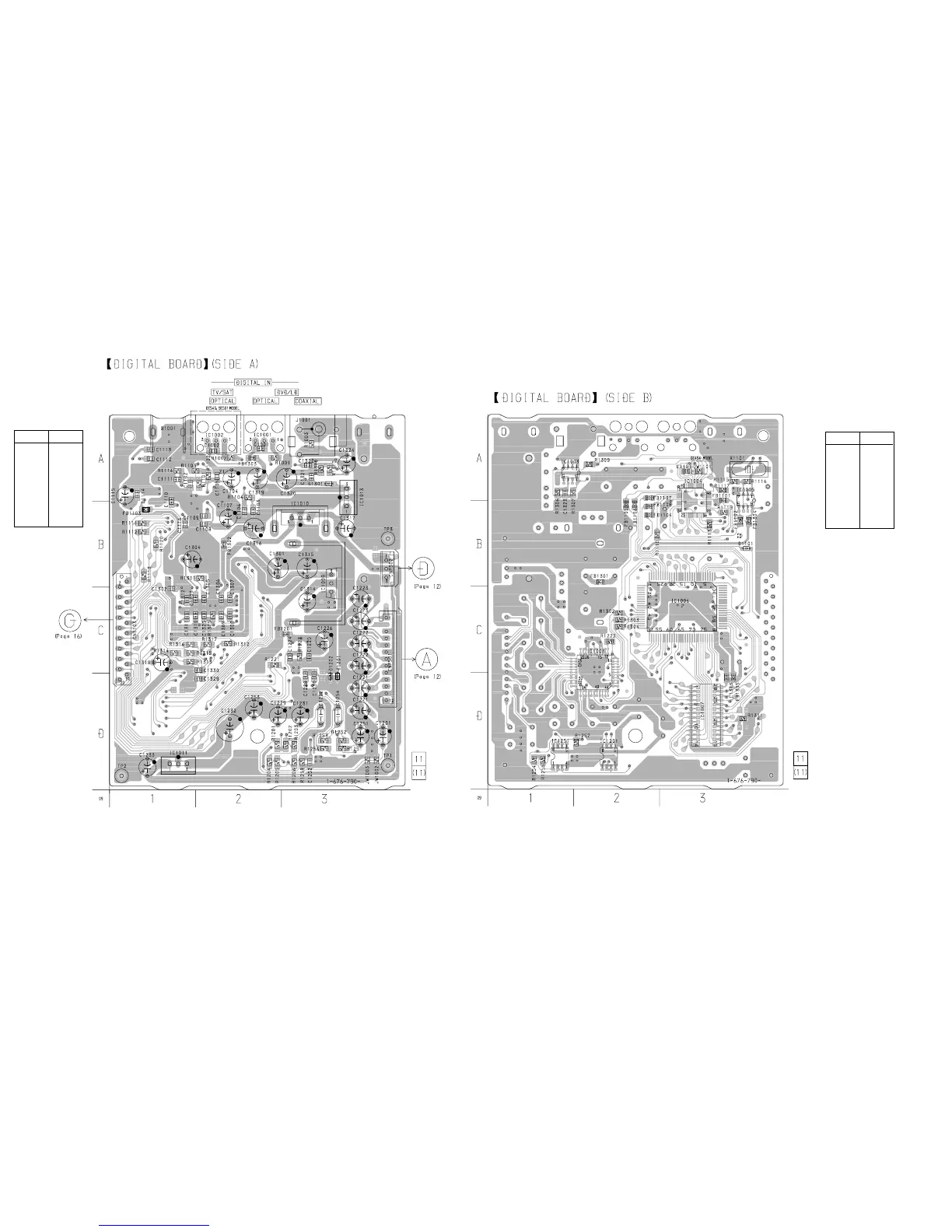

3-3. PRINTED WIRING BOARD — DIGITAL SECTION —
• See page 7 for Circuit Boards Location.
Ref. No. Location
D1201 C-3
D1202 C-3
D1301 A-3
IC1001 A-2
IC1002 A-2
IC1009 B-3
IC1010 B-3
IC1011 D-1
IC1013 B-3
• Semiconductor
Location
Ref. No. Location
D1101 B-3
IC1003 A-1
IC1004 A-3
IC1005 A-3
IC1006 C-3
IC1007 D-3
IC1008 C-2
IC1201 D-2
IC1251 D-1
• Semiconductor
Location
