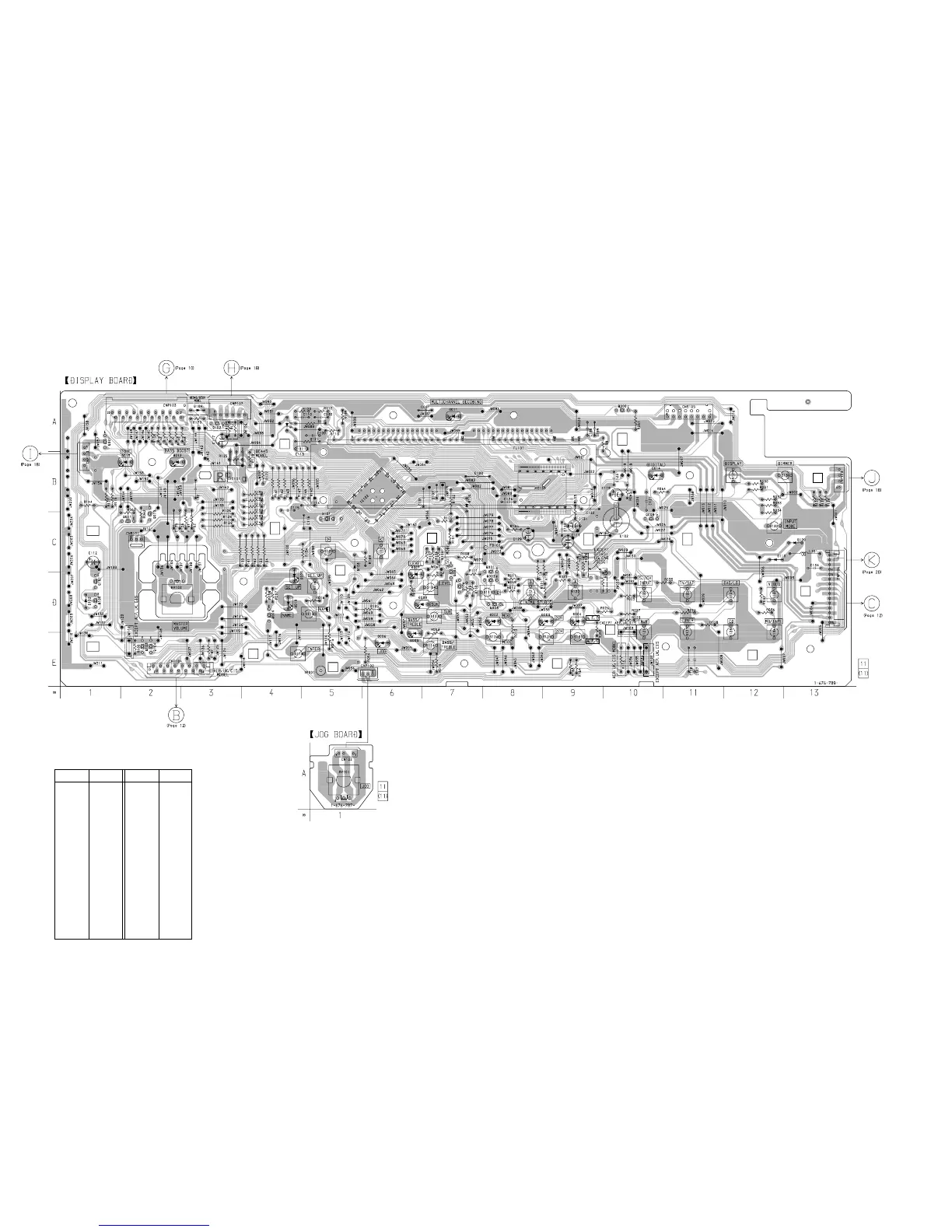

3-9. PRINTED WIRING BOARD — DISPLAY SECTION —
• See page 7 for Circuit Boards Location.
D002 D-8
D003 D-9
D004 D-9
D005 E-6
D006 E-6
D007 C-6
D008 D-6
D009 D-4
D010 D-4
D011 A-7
D012 B-2
D013 B-2
D014 B-10
D100 B-7
D101 A-4
D102 D-1
D103 C-5
D104 A-3
D109 C-13
D110 C-12
Ref. No. Location
• Semiconductor
Location
Ref. No. Location
IC101 B-3
IC102 B-5
IC103 B-8
Q001 C-8
Q002 D-8
Q003 D-8
Q004 D-4
Q005 C-7
Q006 D-7
Q007 A-1
Q008 A-10
Q009 C-10
Q010 C-2
Q011 C-2
Q100 D-1
Q101 D-1
Q102 A-3
Q103 E-2
Q104 E-2
