Sony STR-DE445 - General Information and Controls; Front Panel Controls

4
SECTION 1
GENERAL
1 @/1 button
2 INPUT MODE button
3 DIMMER button
4 DISPLAY button
5 5.1CH INPUT button
6 CHINEMA STUDIO A button
CHINEMA STUDIO B button
CHINEMA STUDIO C button
7 MULTI CHANNEL DECODING indicator
8 <, > buttons
9 BASS BOOST indicator
TONE indicator
0 PRESET TUNING +/– buttons
TUNING +/– buttons
FM/AM button
FM MODE button
RDS EON button (AEP, UK, CIS model)
RDS PTY button (AEP, UK, CIS model)
qa SHIFT button
MEMORY button
qs TONE button
qd BASS BOOST button
qf MUTING button
qg MASTER VOLUME knob
qh SET UP button
qj NAME button
qk ENTER button
ql Jog dial
w; BASS/TREBLE button
wa SUR button
ws LEVEL button
wd A.F.D button/indicator
2CH button/indicator
MODE button/indicator
wf VIDEO button
DVD/LD button
TV/SAT button
MD/TAPE button
CD button
TUNER button
AUX button
wg PHONES jack
wh SPEAKER A button
SPEAKER B button (DE545, SE501 model)
FRONT PANEL
12345 67 8 9 0qa
qsqdqfqgqkql qjqhwswdwf
wg
wh
waw;

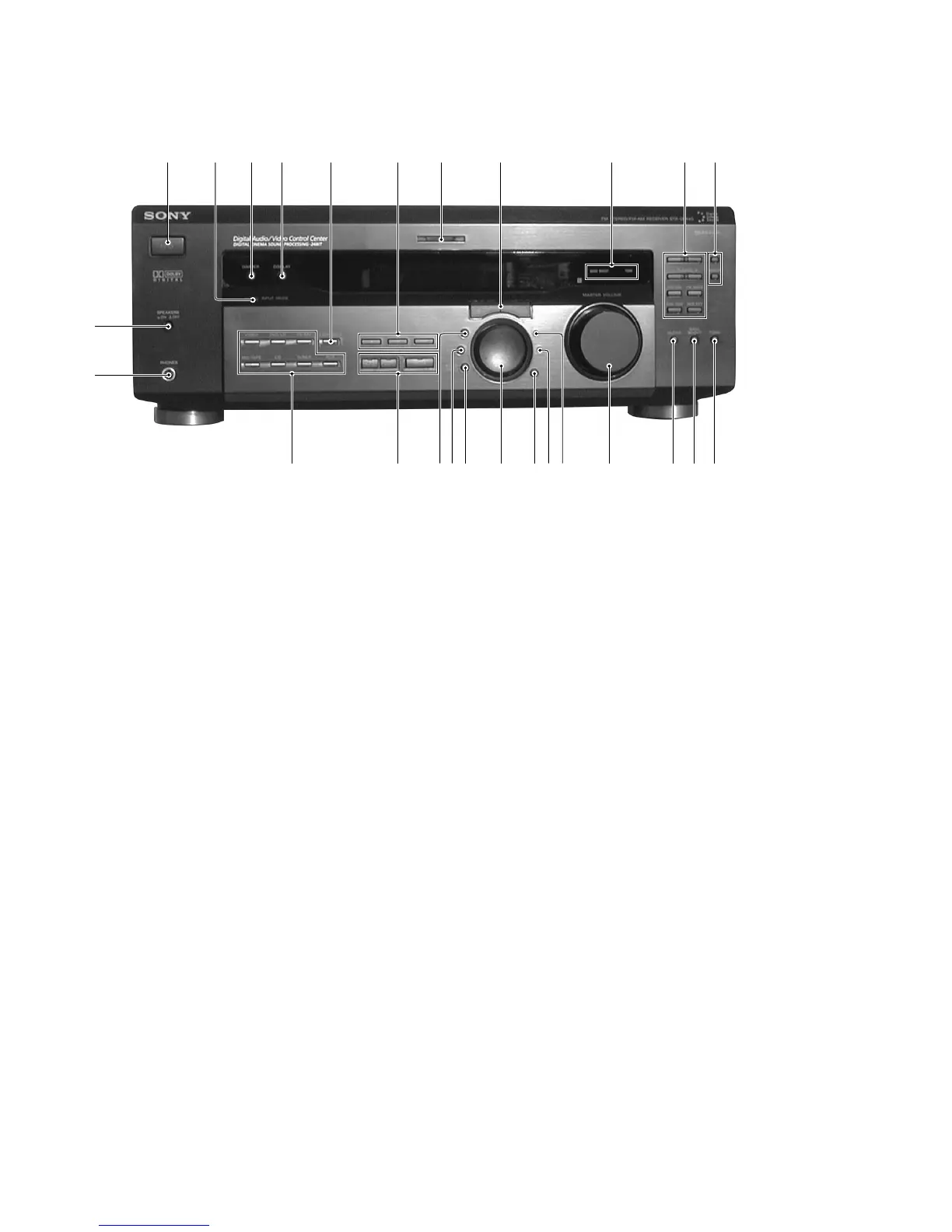

PHOTO: STR-DE445
