Sony STR-DE495 - 5 Exploded Views; Case Section

36
STR-DE495/DE595
SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark

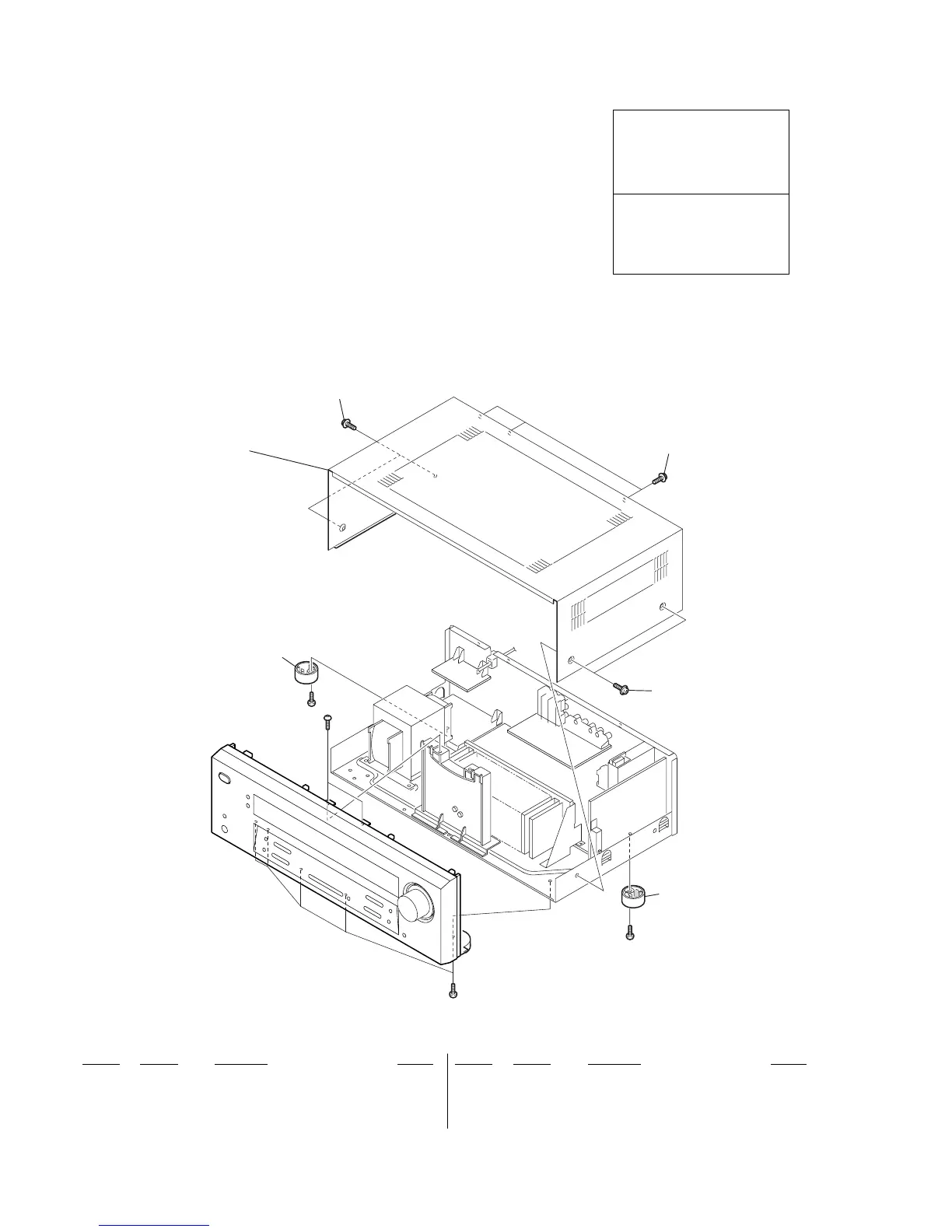

5-1. CASE SECTION
Ref. No. Part No. Description Remark
1 4-245-939-01 CASE (BLACK)...(BLACK)
1 4-245-939-21 CASE (SILVER)...(SILVER)
1 4-245-939-41 CASE (GOLD)...(GOLD)
2 X-4953-448-1 FOOT ASSY
3 4-210-291-01 SCREW (CASE 3 TP2) (BLACK)...(BLACK)
3 4-210-291-11 SCREW (CASE 3 TP2) (SILVER)...(SILVER,GOLD)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
R
R
•Abbreviation
CND : Canadian model
AUS: Australian model
MX : Mexican model
SP : Singapore model
E2 : AC 120 V area in E model
AR : Argentine model
KR : Korean model
TW : Taiwan model
1
3
3
3
2
2
#1
#1
#1
#1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ver 1.1
