Sony STR-DE495 - Chassis Section-2

39
STR-DE495/DE595
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 1-686-904-11 STANDBY BOARD
152 A-4731-280-A MAIN BOARD, COMPLETE
(DE495:AEP,UK,AUS,KR,TW)
152 A-4732-423-A MAIN BOARD, COMPLETE (DE595:US,CND)
152 A-4732-595-A MAIN BOARD, COMPLETE
(DE595:AEP,UK,AUS,KR,TW)
152 A-4732-608-A MAIN BOARD, COMPLETE
(DE595:E2,MX,SP,MY,AR)
152 A-4732-632-A MAIN BOARD, COMPLETE (DE495:SP,MY)
153 3-905-609-01 SCREW (TRANSISTOR)
154 3-701-946-27 LABEL, FUSE RATING (DE495:TW)
0 F901 1-532-464-31 FUSE (T2.5AL/250V) (EXCEPT US,CND,MX,TW)
0 F901 1-576-109-11 FUSE (5A/125V) (DE495:TW)
0 F901 1-576-193-11 FUSE (6.3A/125V) (DE595:US,CND,MX,TW)
Q503 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q504 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q603 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q604 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q653 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q654 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q703 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q704 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q753 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q754 8-749-010-26 TRANSISTOR MP1620-OPY-M
0 T901 1-437-996-11 TRANSFORMER, POWER
(DE495:AEP,UK,KR,SP,MY)
0 T901 1-437-999-11 TRANSFORMER, POWER (DE495:AUS)
0 T901 1-439-549-11 TRANSFORMER, POWER (DE595:US,MX)
0 T901 1-439-550-11 TRANSFORMER, POWER
(DE595:AEP,UK,AUS,AR,KR)
0 T901 1-439-551-11 TRANSFORMER, POWER (DE595:SP,MY)
0 T901 1-439-552-11 TRANSFORMER, POWER (DE595:TW)
0 T901 1-439-553-11 TRANSFORMER, POWER (DE595:E2)
0 T901 1-439-609-11 TRANSFORMER, POWER (DE595:CND)
0 T901 1-439-640-11 TRANSFORMER, POWER (DE495:TW)
#2 7-685-880-09 SCREW +BVTT 4X6 (S)
#3 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
153
151
154
152
T901
#2
#2
#3
#3
#3
#3
#1
F901
not supplied
not supplied
not supplied
Q604
Q603
Q754
Q753
Q654
Q653
Q704
Q703
Q504
Q503

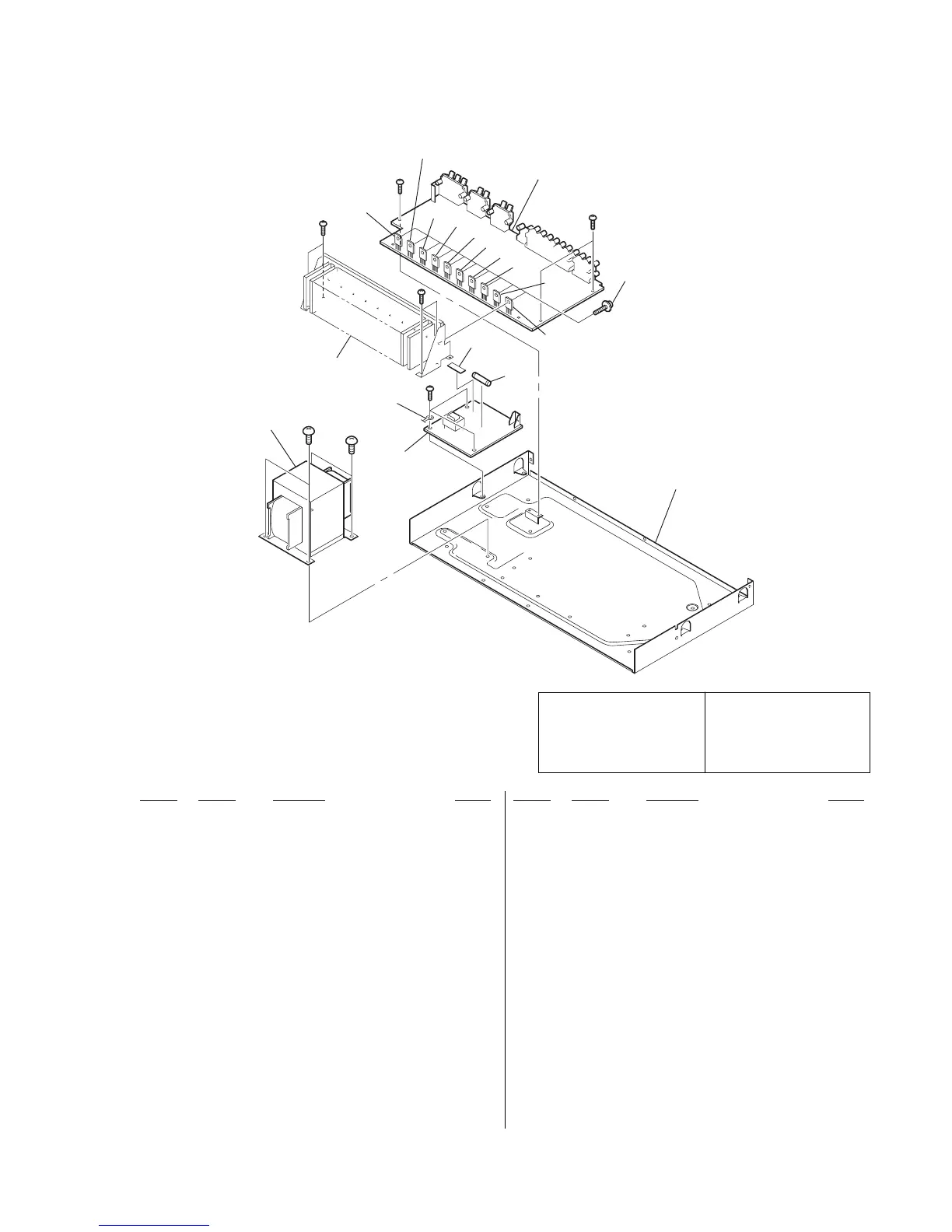

5-4. CHASSIS SECTION-2
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ver 1.1
