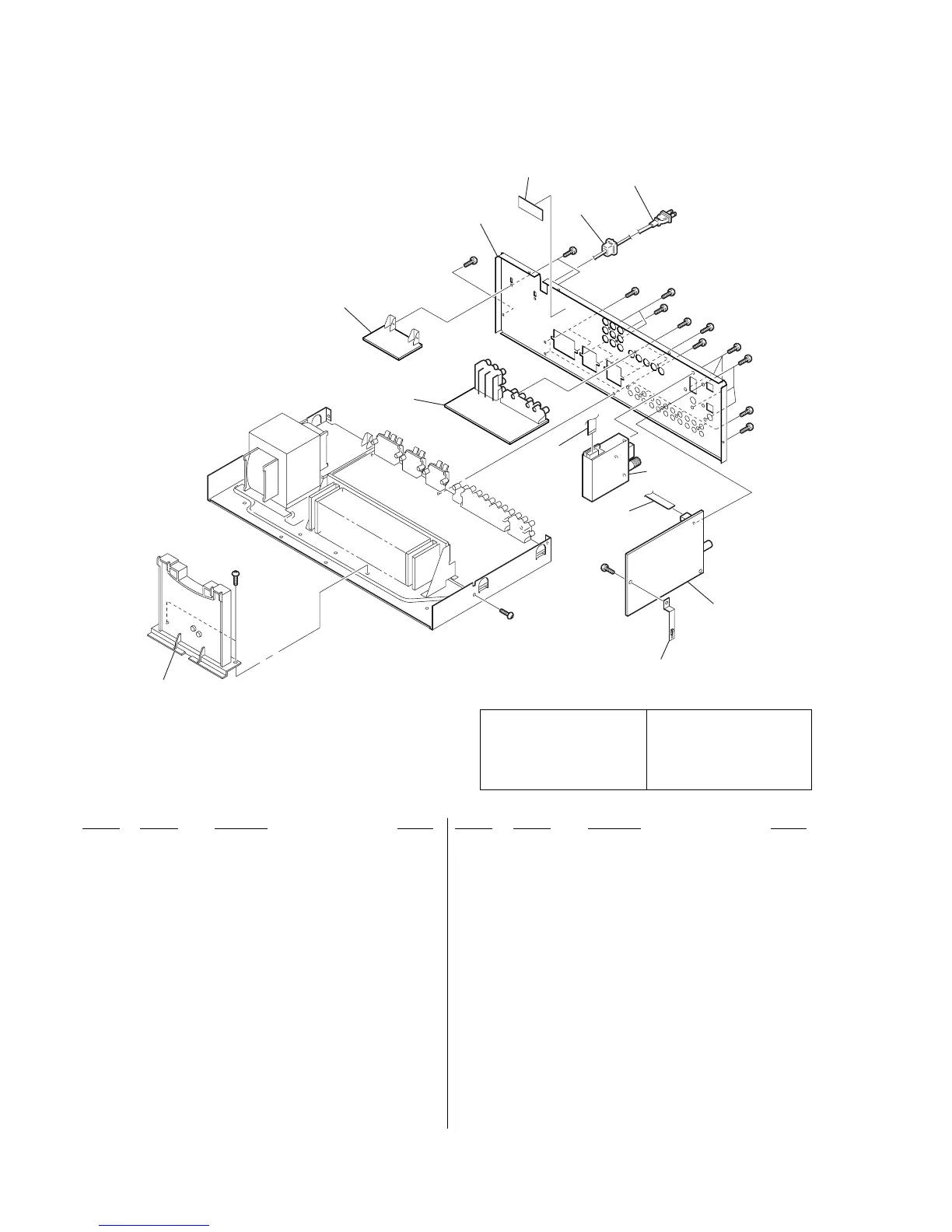

5-3. CHASSIS SECTION-1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-4732-412-A DIGITAL BOARD, COMPLETE (DE595:US,CND)
101 A-4732-431-A DIGITAL BOARD, COMPLETE (DE495:AEP,UK)
101 A-4732-594-A DIGITAL BOARD, COMPLETE (DE595:AUS)
101 A-4732-607-A DIGITAL BOARD, COMPLETE (DE595:SP,MY,KR)
101 A-4732-612-A DIGITAL BOARD, COMPLETE (DE595:E2)
101 A-4732-615-A DIGITAL BOARD, COMPLETE (DE595:MX,AR)
101 A-4732-625-A DIGITAL BOARD, COMPLETE (DE595:AEP,UK)
101 A-4732-631-A DIGITAL BOARD, COMPLETE (DE495:KR,SP,MY)
101 A-4734-333-A DIGITAL BOARD, COMPLETE (DE595:TW)
101 A-4734-359-A DIGITAL BOARD, COMPLETE (DE495:TW)
101 A-4734-763-A DIGITAL BOARD, COMPLETE (DE495:AUS)
* 102 3-703-044-26 LABEL, CAUTION (US,CND)
0 103 1-696-847-11 CORD, POWER (AUS)
0 103 1-769-079-22 CORD, POWER (KR)
0 103 1-777-071-23 CORD, POWER (AEP,UK,E2,SP,MY)
0 103 1-783-532-11 CORD, POWER (US,CND,MX,TW)
0 103 1-783-941-12 CORD, POWER (AR)
* 104 3-703-244-00 BUSHING (2104), CORD
105 1-769-937-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP,UK)
105 1-773-001-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
106 1-575-662-31 WIRE (FLAT TYPE) (5 CORE)
107 A-4731-175-A VIDEO BOARD, COMPLETE
(DE495,DE595:AEP,UK)
107 1-686-905-11 VIDEO BOARD (EXCEPT DE495,DE595:AEP,UK)
TM301 1-693-577-22 TUNER PACK (ANTENNA) (US,CND,E2,MX,AR)
TM301 1-693-578-21 TUNER PACK (ANTENNA) (AEP,UK)
TM301 1-693-580-22 TUNER PACK (ANTENNA) (AUS,SP,MY,KR,TW)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
102
104
103
101
105
107
106
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
TM301
#3
not supplied
not supplied
not supplied
(BRIDGEABLE board)
not supplied
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
