Sony STR-DE845 - Printed Wiring Boards OSD;OSD JOINT (H) Boards (DE945)

2222
STR-DE845/DE945

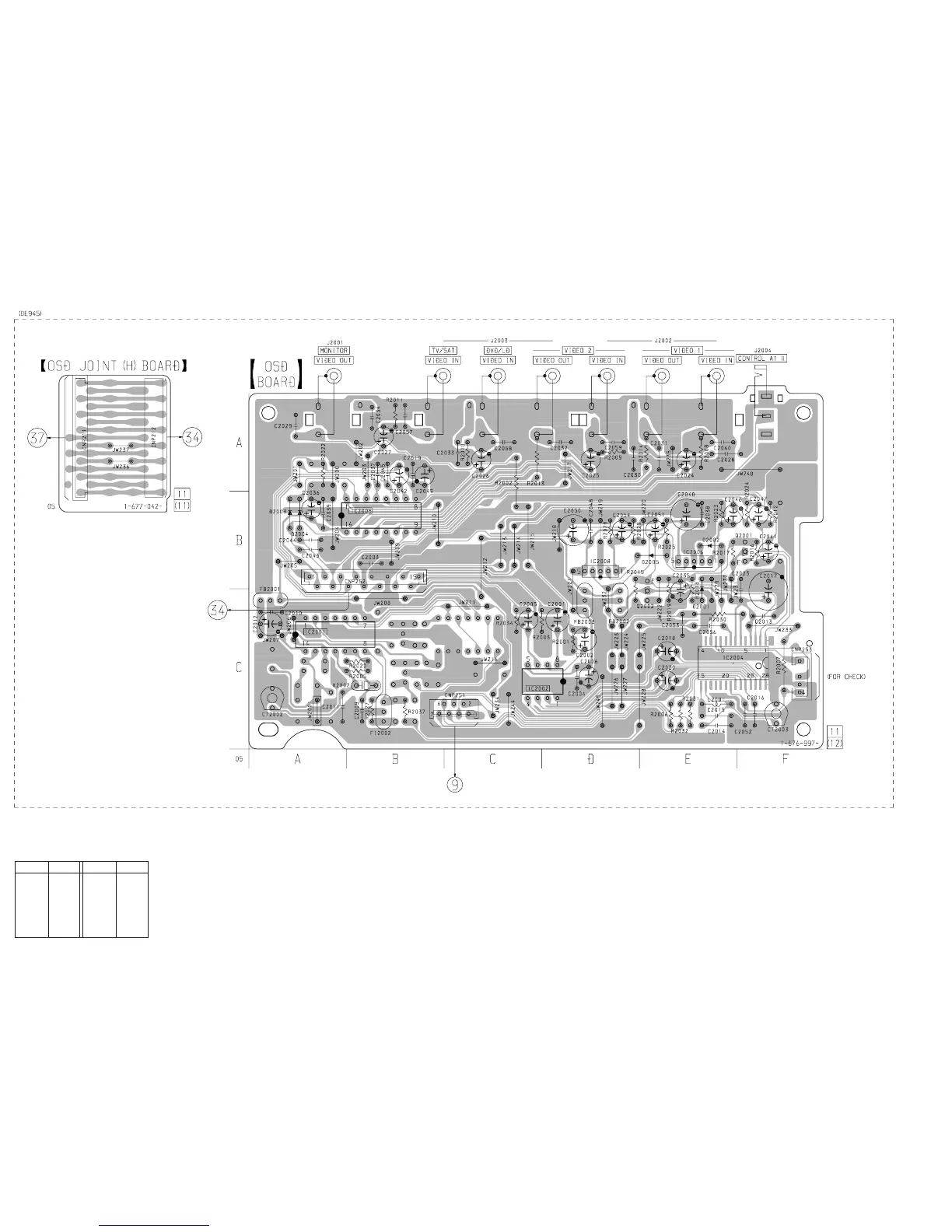

4-12. PRINTED WIRING BOARDS – OSD/OSD JOINT (H) Boards (DE945) – • See page 14 for Circuit Boards Location.
IC2004 C-5
IC2005 B-2
IC2006 B-5
IC2007
IC2008 B-4
Q2001 B-6
Q2002 C-5
Ref. No. Location
Ref. No. Location
D2001 C-5
D2002 B-5
D2003 B-1
D2004 B-1
D2005 B-5
IC2001 C-1
IC2002 C-3
• Semiconductor Location
(Page 26)
(Page 28)
TO
OSD JOINT (H)
BOARD
TO
OSD
BOARD
