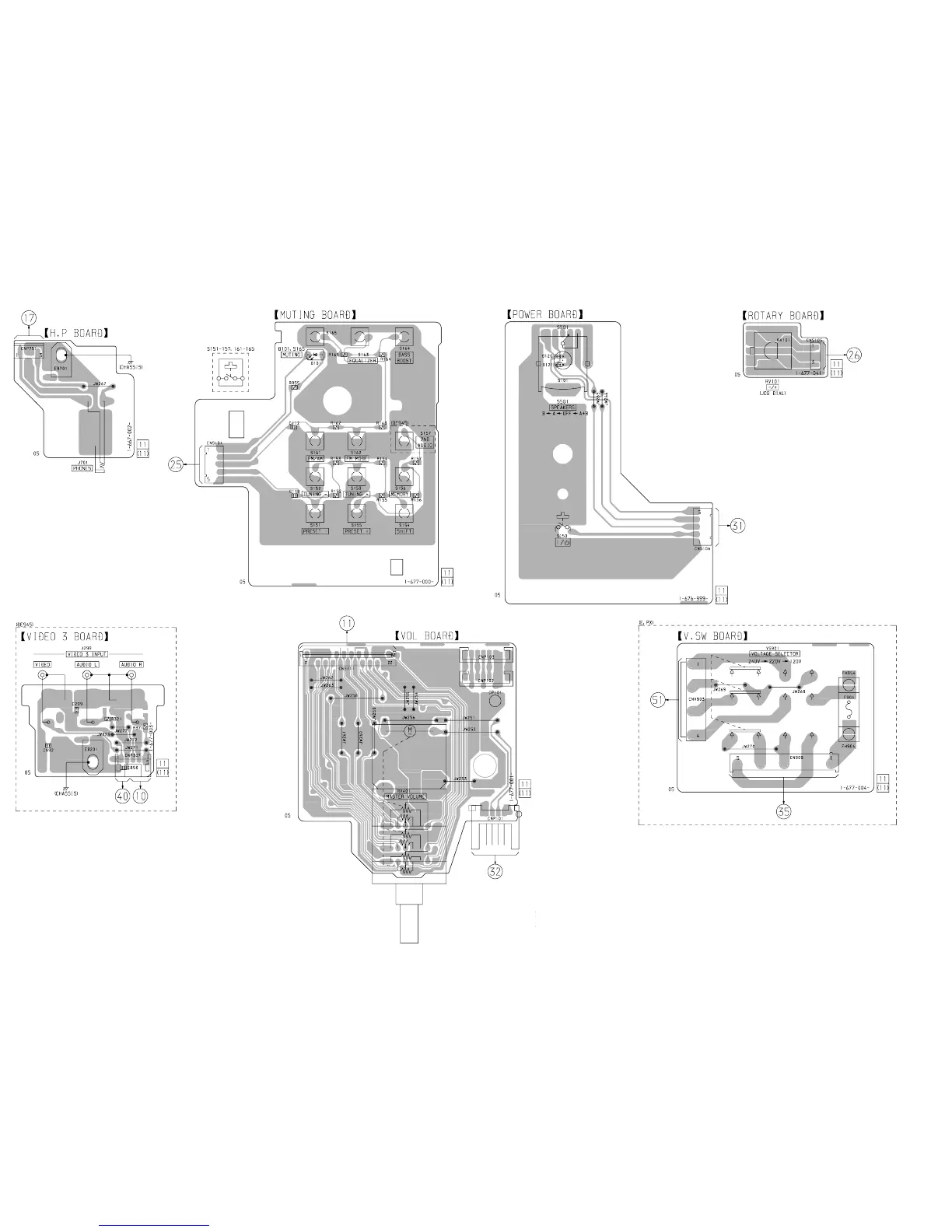

4-24. PRINTED WIRING BOARDS – H.P/MUTING/POWER/ROTARY/VIDEO 3 (DE945)/VOL/V. SWITCH (E) Boards – • See page 14 for Circuit Boards Location.
(Page 30)
(Page 28)
(Page 26)
(Page
30)
(Page 30)
(Page 28)
(Page 40)
(Page 38)
(Page 28)
(Page 28)
