Sony STR-DE845 - Printed Wiring Board - MAIN Board

3030
STR-DE845/DE945

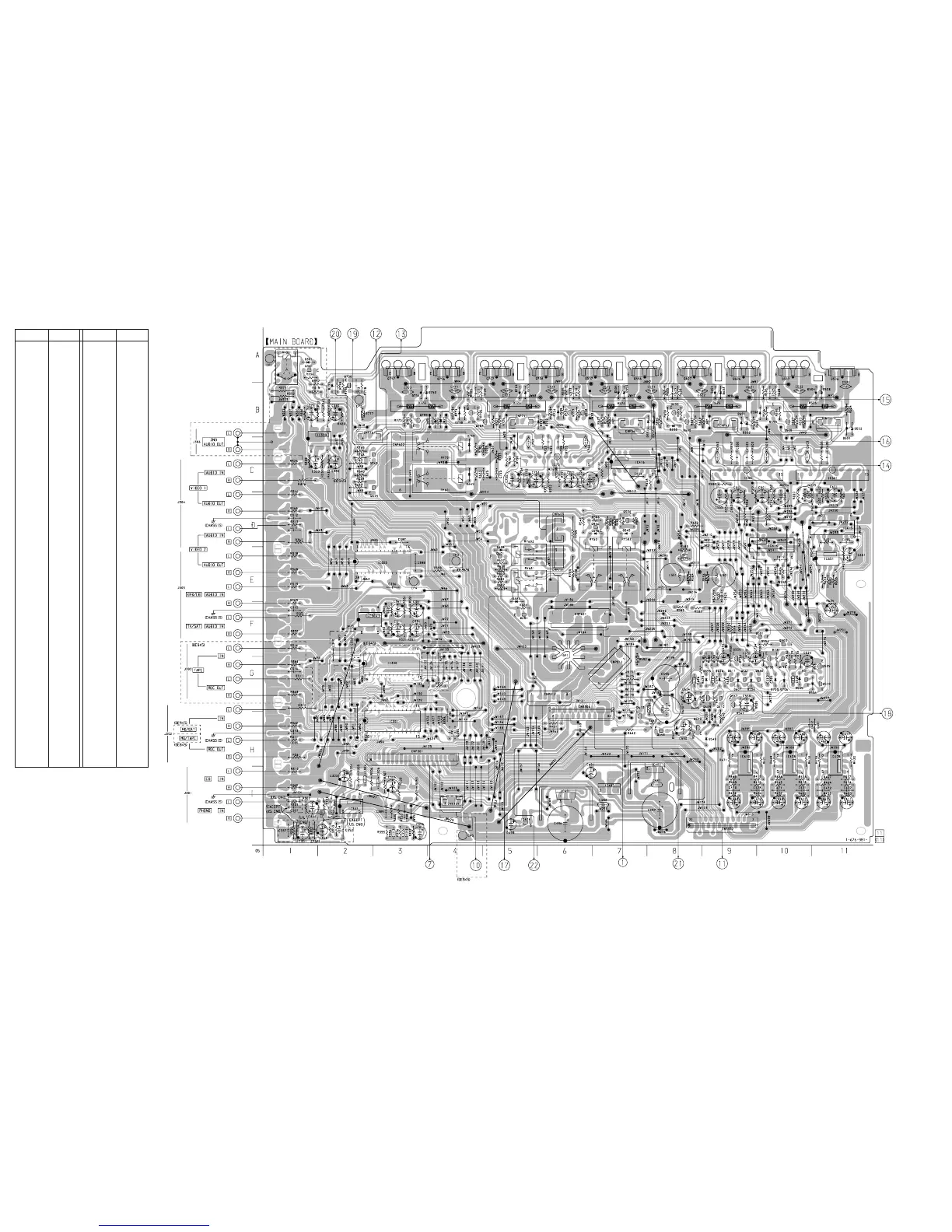

4-20. PRINTED WIRING BOARD – MAIN Board – • See page 14 for Circuit Boards Location.
IC408 H-10
IC409 H-11
IC410 H-9
IC414 D-10
IC415 D-11
IC416 C-7
IC501 C-9
IC601 C-11
IC651 E-11
IC701 C-6
Q301 A-1
Q501 F-10
Q503 F-10
Q506 A-11
Q507 A-10
Q508 B-10
Q509 G-11
Q510 G-11
Q511 G-10
Q546 D-7
Q547 G-9
Q548 H-8
Q549 H-8
Q556 A-7
Q557 A-7
Q558 B-6
Q559 G-9
Q560 G-10
Q561 G-9
Q596 D-7
Q598 B-10
Q599 B-6
Q601 E-5
Q606 A-9
Q607 A-8
Q608 B-8
Q609 G-9
Q610 G-9
Q611 G-9
Q613 H-7
Q645 C-3
Q681 F-5
Q698 B-8
Q706 A-6
Q707 A-5
Q708 B-5
Q709 G-10
Q710 G-10
Q745 C-3
Q756 A-4
Q757 A-3
Q758 B-2
Q798 B-4
Q799 B-3
Ref. No. LocationRef. No. Location
D301 A-1
D501 B-11
D502 B-11
D503 B-11
D504 B-11
D505 G-10
D506 G-11
D545 D-7
D546 D-7
D547 H-8
D548 H-9
D549 H-9
D551 B-8
D552 B-8
D553 B-7
D554 B-7
D555 G-9
D556 G-9
D598 B-10
D599 B-6
D601 B-9
D602 B-9
D603 B-9
D604 B-9
D605 G-8
D606 G-9
D607 G-9
D608 E-5
D649 C-4
D681 E-5
D698 B-8
D701 B-6
D702 B-6
D703 B-5
D704 B-5
D705 G-10
D706 G-10
D749 C-4
D751 B-4
D752 B-4
D753 B-3
D754 B-3
D798 B-4
D799 B-2
IC301 H-3
IC302 I-2
IC303 E-3
IC304 F-2
IC309 C-2
IC330 G-3
IC401 I-6
IC402 I-8
IC404 I-5
IC405 I-7
• Semiconductor Location
(Page 40)
(Page 40) (Page 36)(Page 36)
(Page
36)
(Page
36)
(Page
36)
(Page 40)
(Page 24)
(Page
34)
(Page 34)
(Page 38)
(Page 19)
(Page 38)
(Page 34)
