Sony STR-DE845 - SECTION 5 EXPLODED VIEWS; Front Panel Assembly

56

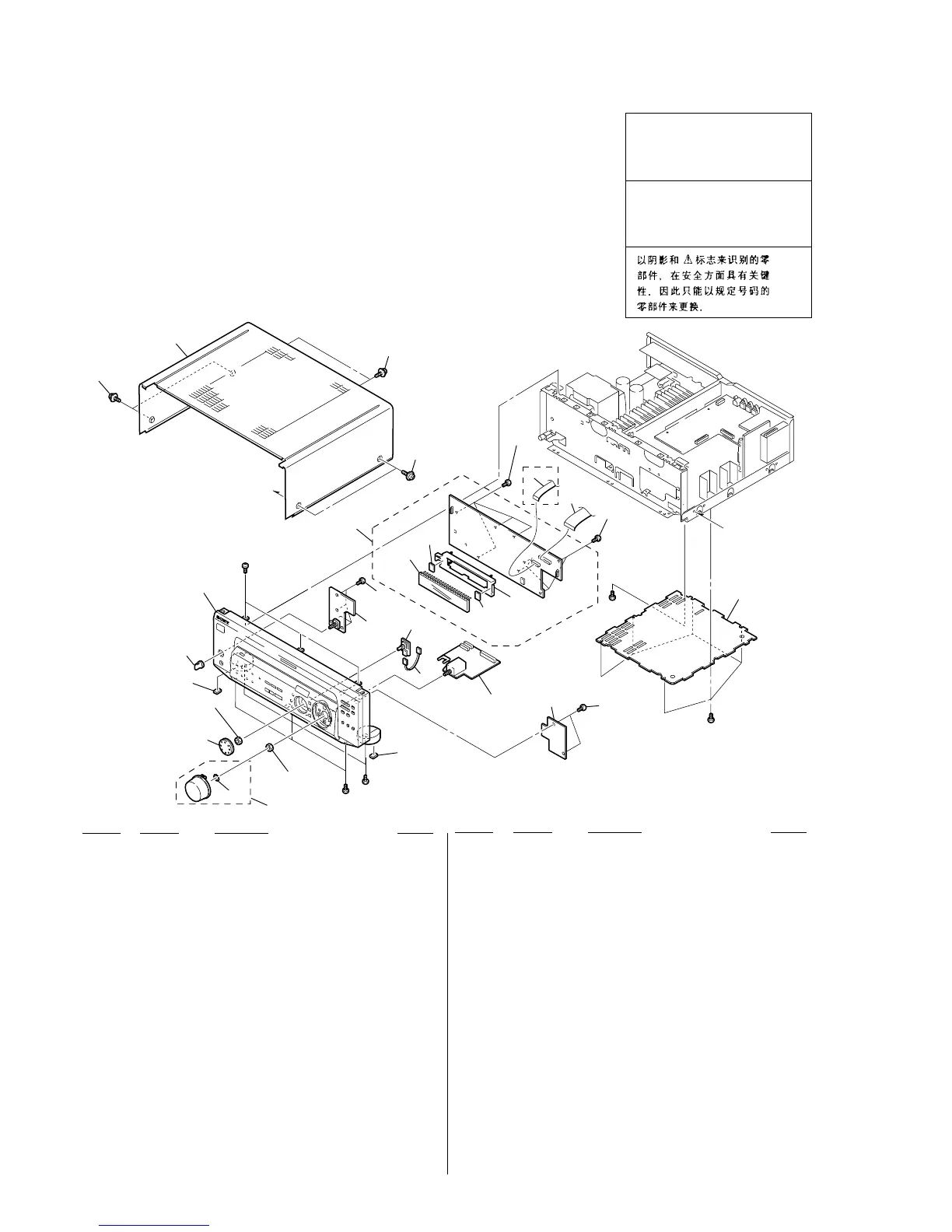

(1) FRONT PANEL SECTION
SECTION 5
EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
A
A
supplied with
RV101
supplied with
RV401
#1
#1
#1
#1
FL101
#1
1
8
20
11
11
11
15
14
17
17
18
16
21
10
11
12
12
13
12
6
2
3
4
4
9
5
7
DE945
1 X-4951-035-1 KNOB (VOL) ASSY (BLACK)
(US, CND, E, AUS, PX)
1 X-4951-269-1 KNOB (VOL) ASSY (GOLD) (MY, SP, CH)
2 3-350-426-01 SPRING, RING
3 4-226-799-01 KNOB (JOG) (BLACK) (US, CND, E, AUS, PX)
3 4-226-799-11 KNOB (JOG) (GOLD) (MY, SP, CH)
4 4-977-358-11 CUSHION
5 1-773-054-11 WIRE (FLAT TYPE) (17 CORE)
(E, AUS, CH, PX)
5 1-773-160-11 WIRE (FLAT TYPE) (21 CORE) (US, CND)
(260mm)
6 4-957-383-01 KNOB (F14) (BLACK) (US, CND, E, AUS)
6 4-957-383-11 KNOB (F14) (GOLD) (MY, SP, CH)
7 1-769-888-11 WIRE (FLAT TYPE) (7 CORE) (DE945)
8 X-4952-754-1 PANEL ASSY, FRONT (DE945)
8 X-4952-755-1 PANEL ASSY, FRONT (BLACK)
(845: US, CND, E, AUS, PX)
8 X-4952-756-1 PANEL ASSY, FRONT (GOLD) (MY, SP, CH)
* 9 1-690-880-31 LEAD (WITH CONNECTOR)
10 1-676-999-11 POWER BOARD
11 4-951-620-01 SCREW (2.6X8), +BVTP
12 4-210-291-01 SCREW (CASE 3 TP2) (BLACK)
(EXCEPT MY, SP, CH)
12 4-210-291-11 SCREW (CASE 3 TP2) (GOLD) (MY, SP, CH)
* 13 4-229-547-01 CASE (414532) (GOLD) (MY, SP, CH)
* 13 4-979-945-01 CASE (414532) (BLACK) (E, AUS, PX)
* 13 4-982-682-01 CASE (414532) (US, CND)
14 A-4428-772-A DISPLAY BOARD, COMPLETE (845: US, CND)
14 A-4428-796-A DISPLAY BOARD, COMPLETE
(MY, SP, AUS, CH)
14 A-4428-804-A DISPLAY BOARD, COMPLETE (E, PX)
14 A-4428-814-A DISPLAY BOARD, COMPLETE (DE945)
* 15 4-979-946-01 PLATE (432), BOTTOM
16 1-677-041-11 ROTARY BOARD
* 17 4-955-901-01 CUSHION (FL)
* 18 4-990-797-01 HOLDER (FL)
20 1-677-000-11 MUTING BOARD
21 1-677-001-11 VOL BOARD
FL101 1-517-781-21 INDICATOR, FLUORESCENT
