STR-DK5
1616
STR-DK5
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
All resistors are in and
1
/
4
W or less unless otherwise
specified.
f
: internal component.
2 : nonflammable resistor.
5 : fusible resistor.
C : panel designation.
A : B+ Line.
B : B– Line.
•Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
: Impossible to measure
•Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
Circled numbers refer to waveforms.
Signal path.
F : TUNER (FM/AM)
L : VIDEO (AUDIO)
J : CD (ANALOG)
c : CD (DIGITAL)
Abbreviation
RU: Russia model
for printed wiring boards:
X : parts extracted from the component side.
f
: internal component.
: Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
• Waveforms
— DIGITAL Board —
C
B
These are omitted.
E
Q
B
These are omitted.
C
Q
Q
E
BCE
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.

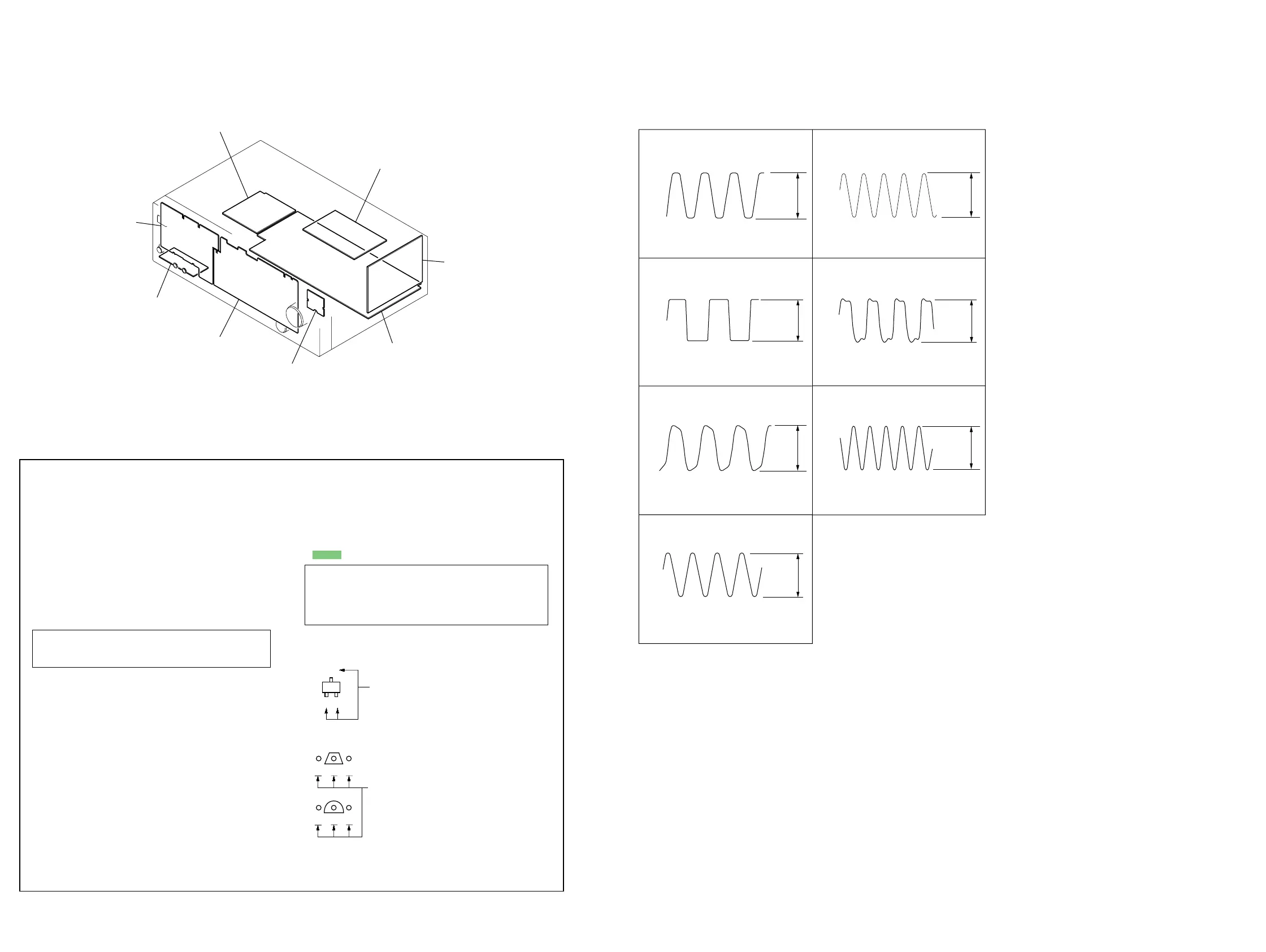

4-6. CIRCUIT BOARDS LOCATION
MIC TONE board
STANDBY board
KARAOKE board
DIGITAL boar
d
MAIN board
MIC AMP board
DISPLAY board
VOLUME board
1
IC1301 qd (CKOUT)
2.2 Vp-p
2.4 Vp-p
1V/DIV, 50nsec/DIV
3
IC1301 wa (XOUT)
1V/DIV, 50nsec/DIV
4
IC1501 9 (MCLK1)
0.8 Vp-p
1V/DIV, 50nsec/DIV
2
IC1301 qf (BCK)
3.3 Vp-p
1V/DIV, 0.2
µ
s/DIV
13.9 MHz
12.288 MHz
3.07 MHz
12.288 MHz
5
IC1501 qs (MCLK2)
1.1 Vp-p
1.2 Vp-p
1V/DIV, 50nsec/DIV
7
IC1101 id (X1)
1V/DIV, 50nsec/DIV
6
IC1501 qf (SCKOUT)
2.9 Vp-p
1V/DIV, 50nsec/DIV
24 MHz
12.288 MHz
13.9 MHz
