Sony STR-DK5 - Section 2: Disassembly Procedures; Component Board Disassembly

6
STR-DK5
Note : This set can be disassemble according to the following sequence.
SECTION 2
DISASSEMBLY
2-1. CASE
Note : Follow the disassembly procedure in the numerical order given.
2-1. CASE
(Page 6)
2-2. FRONT PANEL SECTION
(Page 7)
2-3. BACK PANEL SECTION
(Page 7)
SET
2-6. STANDBY BOARD
(Page 9)
2-4. DIGITAL BOARD
(Page 8)
2-5. MAIN BOARD
(Page 8)

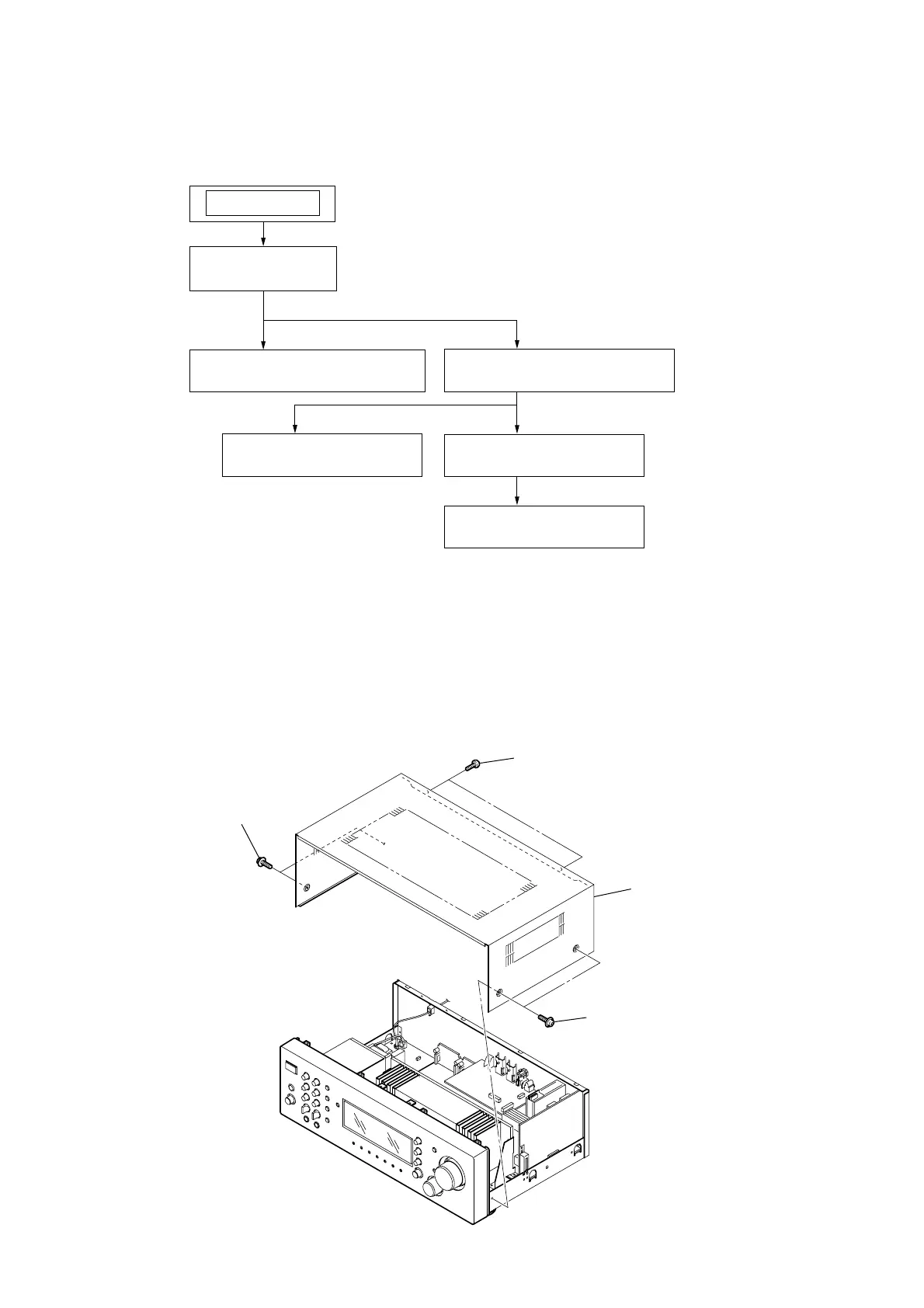

1 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
3 two screws
(+BVTP 3
× 8)
4 cas
e
Ver. 1.1
