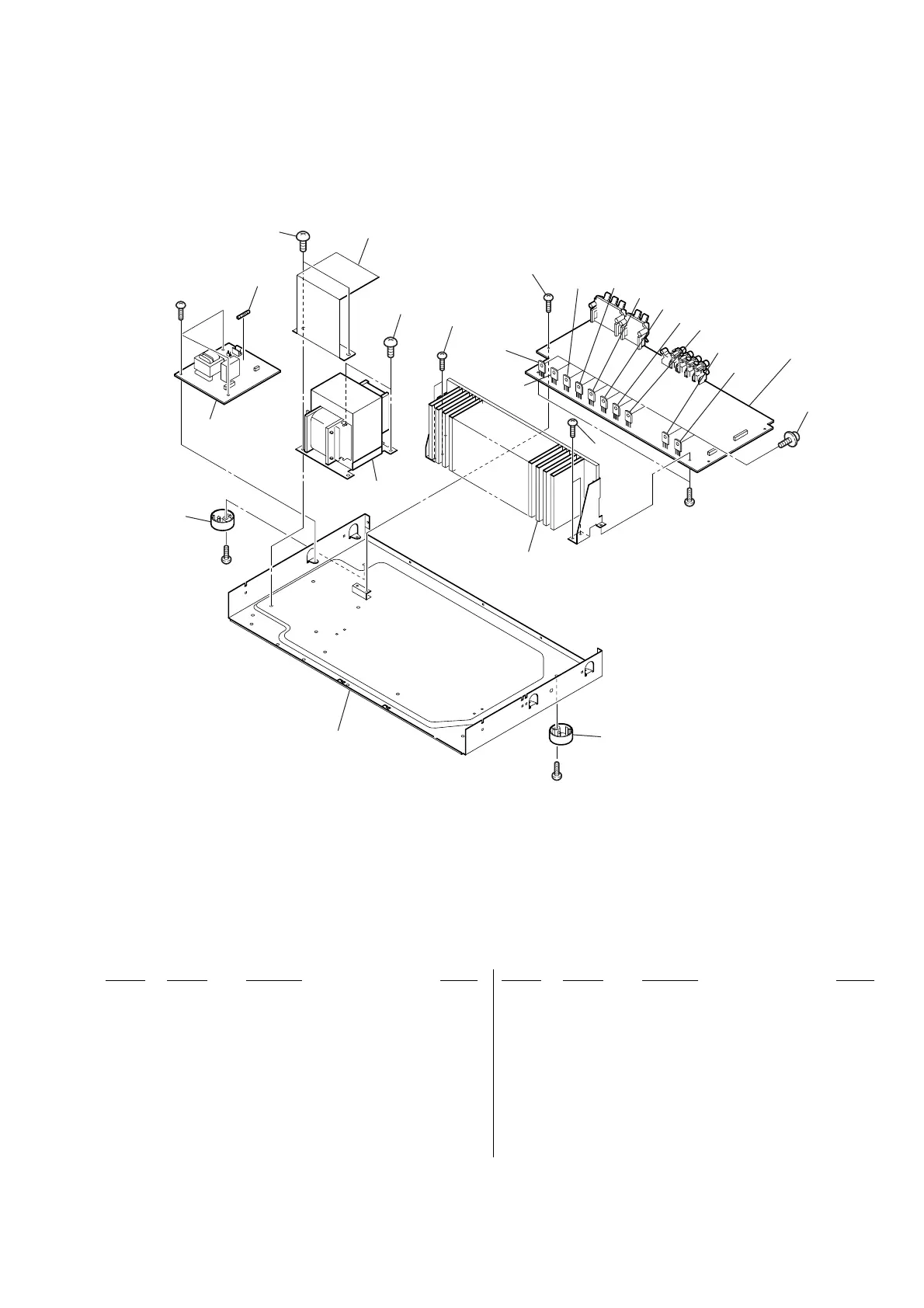

5-4. CHASSIS SECTION
151 X-4953-448-1 FOOT ASSY
152 4-900-386-01 SCREW
153 3-077-331-21 +BV3 (3-CR)
154 A-1148-070-A MAIN BOARD, COMPLETE (EXCEPT RU)
154 A-1192-325-A MAIN BOARD, COMPLETE (RU)
155 3-905-609-01 SCREW (TRANSISTOR)
0 F901 1-532-464-33 FUSE (T2.5AL/250V)
Q503 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q504 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q553 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q554 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q603 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q604 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q653 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q654 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q703 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q704 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 T901 1-443-914-11 TRANSFORMER, POWER (MAIN)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
151
151
152
152
153
153
154
155
153
not supplied
not supplied
not supplied
not supplied
(STANDBY board)
T901
Q654
Q653
Q554 Q553
Q604
Q603
Q504
Q503
Q704
Q703
F901
#1
#1
#1
#1
