Sony STR-K650P - Printed Wiring Board - DIGITAL Board (SIDE A)

1010
STR-K650P
• See page 7 for Circuit Boards Location.

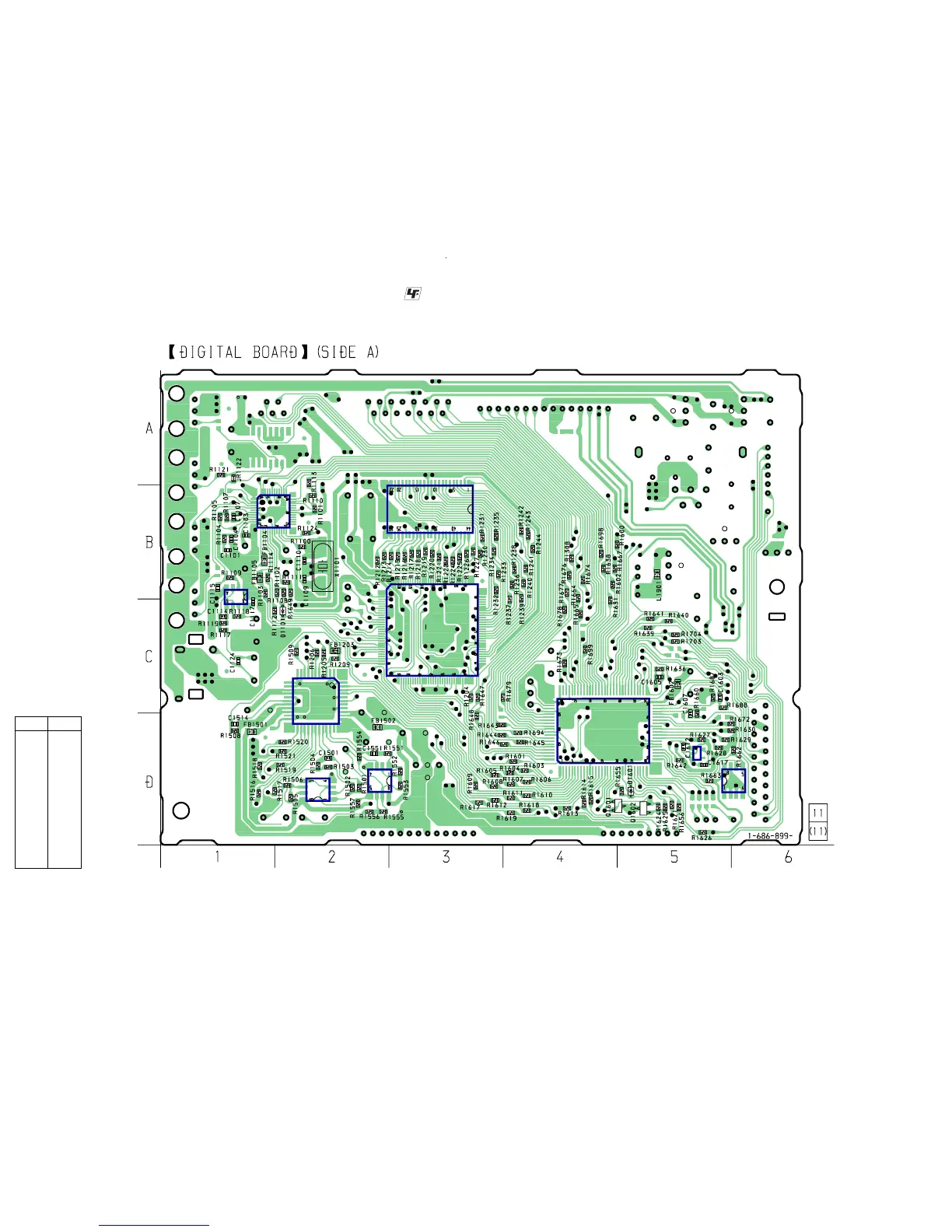

3-3. Printed Wiring Board – DIGITAL Board (SIDE A) –
• : Uses unleaded solder.
Ref. No. Location
D1101 C-2
D1601 D-5
IC1101 B-2
IC1102 B-1
IC1201 C-3
IC1202 B-3
IC1501 D-2
IC1502 D-2
IC1552 D-2
IC1601 D-4
IC1602 D-5
IC1604 D-5
Q1601 D-4
Q1602 D-5
• Semiconductor
Location
IC1601
IC1201
IC1202
IC1501
IC1101
IC1102
IC1552
IC1604
IC1602
IC1502
11 1
23
12
22
44
34
33
5
4
E
E
