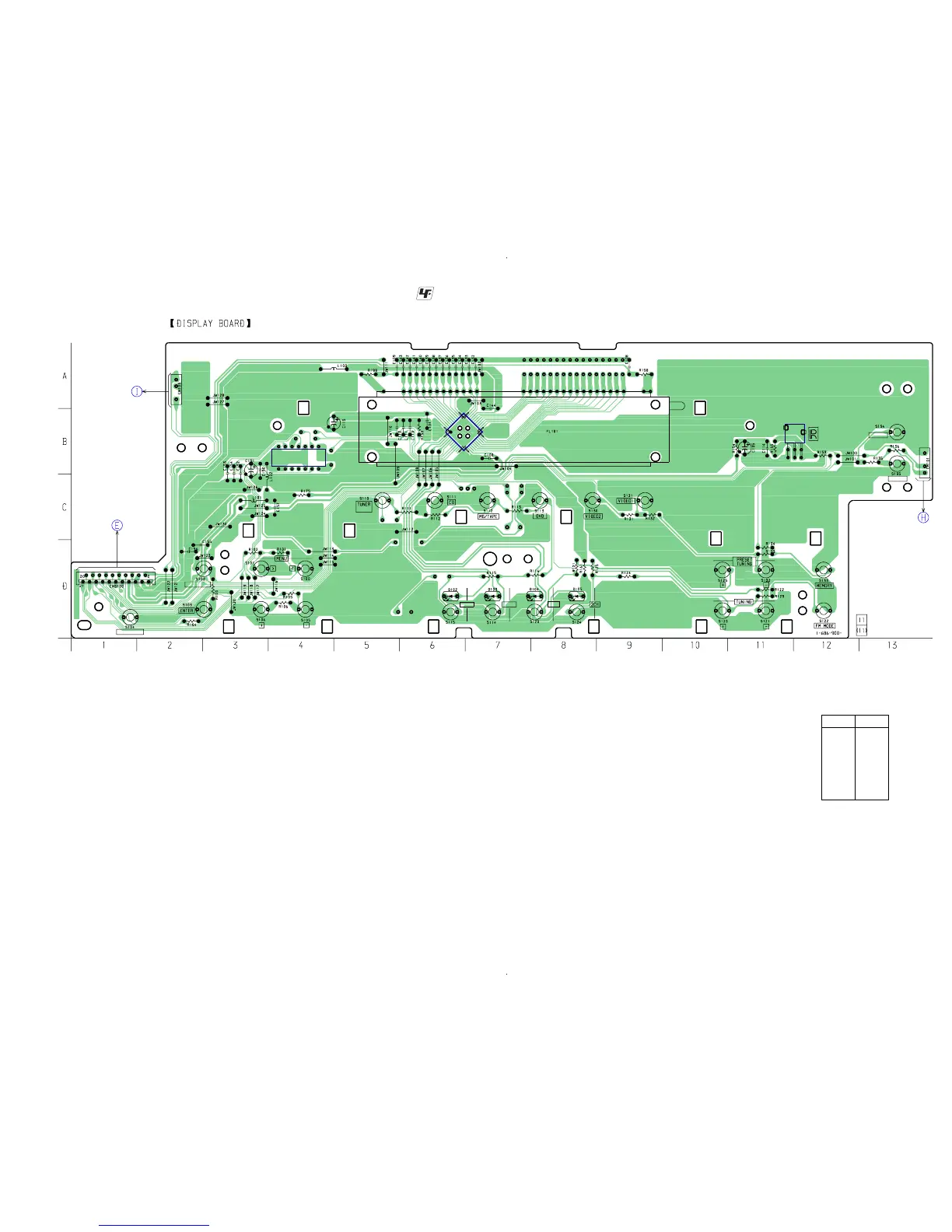

3-12. Printed Wiring Board – DISPLAY Board –
• : Uses unleaded solder.
Ref. No. Location
D102 D-6
D103 D-7
D104 D-8
D105 D-8
IC100 B-6
IC101 B-4
IC102 B-11
• Semiconductor
Location
IC100
IC102
IC101
TO
VOLUME
BOARD
CNP104
(Page 21)
TO
DIGITAL
BOARD
CNS4
(Page 11)
TO
POWER
BOARD
CNP102
(Page 21)
FM/AM
FLUORESCENT
INDICATOR TUBE
MOVIE
A.F.D.
MUSIC
INPUT MODE
MAIN MENU
DISPLAY
DIMMER
