Sony STR-K650P - Printed Wiring Board - DIGITAL Board (SIDE B)

1111
STR-K650P
IC1503
IC1904
IC1901
IC1902
IC1105
IC1903
TUNER
PACK
TO
MAIN
BOARD
CNP911
(Page 14)
TO
VIDEO
BOARD
CNS250
(Page 21)
TO
MAIN
BOARD
CNP501
(Page 14)
TO
STANDBY
BOARD
CNP912
(Page 18)
TO
MAIN
BOARD
CNP502
(Page 14)
TO
DISPLAY
BOARD
CNS100
(Page 19)
FOR
FLASH
PROGRAMING
OPTICAL
COAXIAL
FM 75Ω
COAXIAL
AM
I
ANTENNA
3
1
7
1
1
1
1
3
3
1
3
54
3
13
1
3
114
11
• See page 7 for Circuit Boards Location.

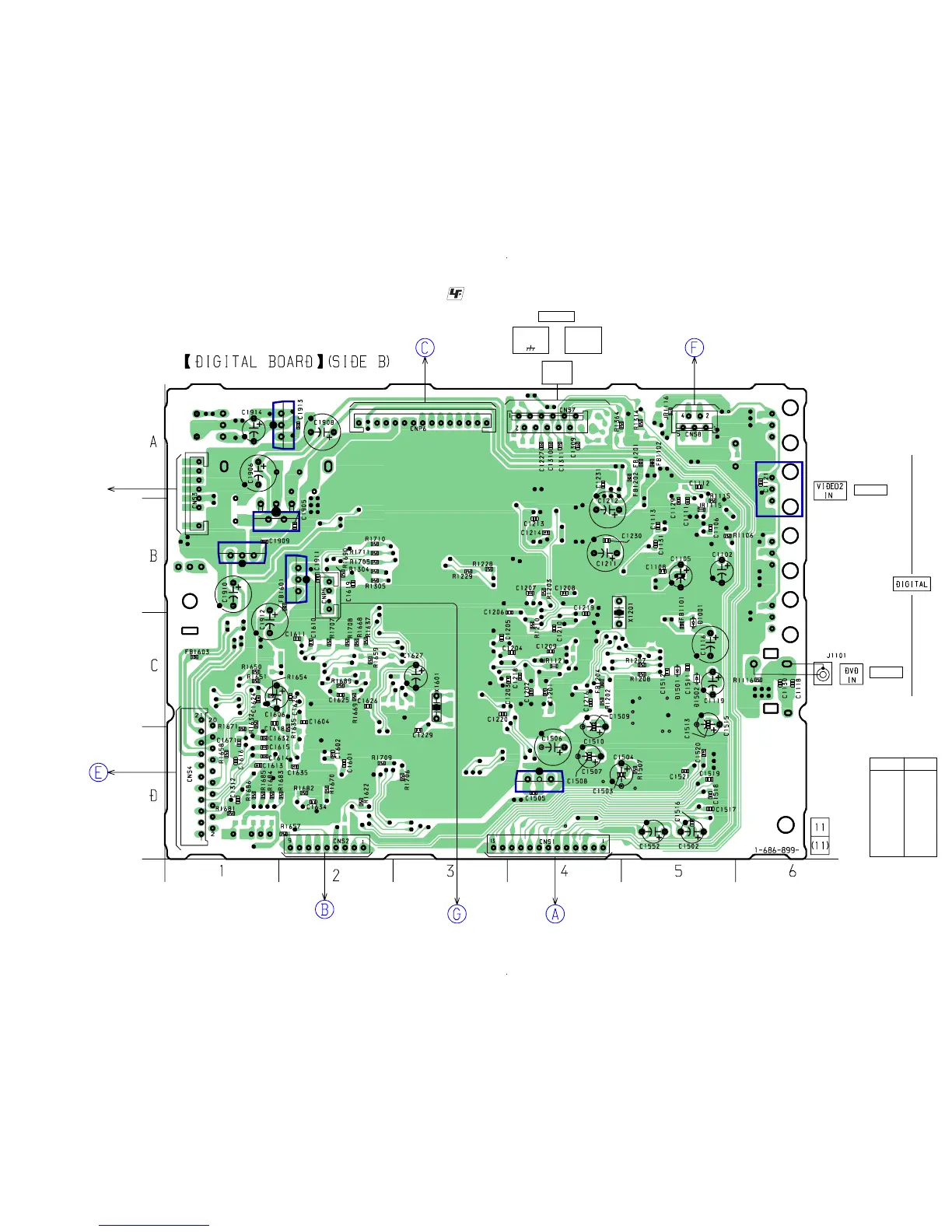

3-4. Printed Wiring Board – DIGITAL Board (SIDE B) –
• : Uses unleaded solder.
Ref. No. Location
D1001 C-5
D1501 C-5
D1502 C-5
IC1105 A-6
IC1503 D-4
IC1901 B-1
IC1902 A-1
IC1903 B-1
IC1904 B-1
• Semiconductor
Location
