Sony STR-K650P - Chassis Section

28
STR-K650P
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

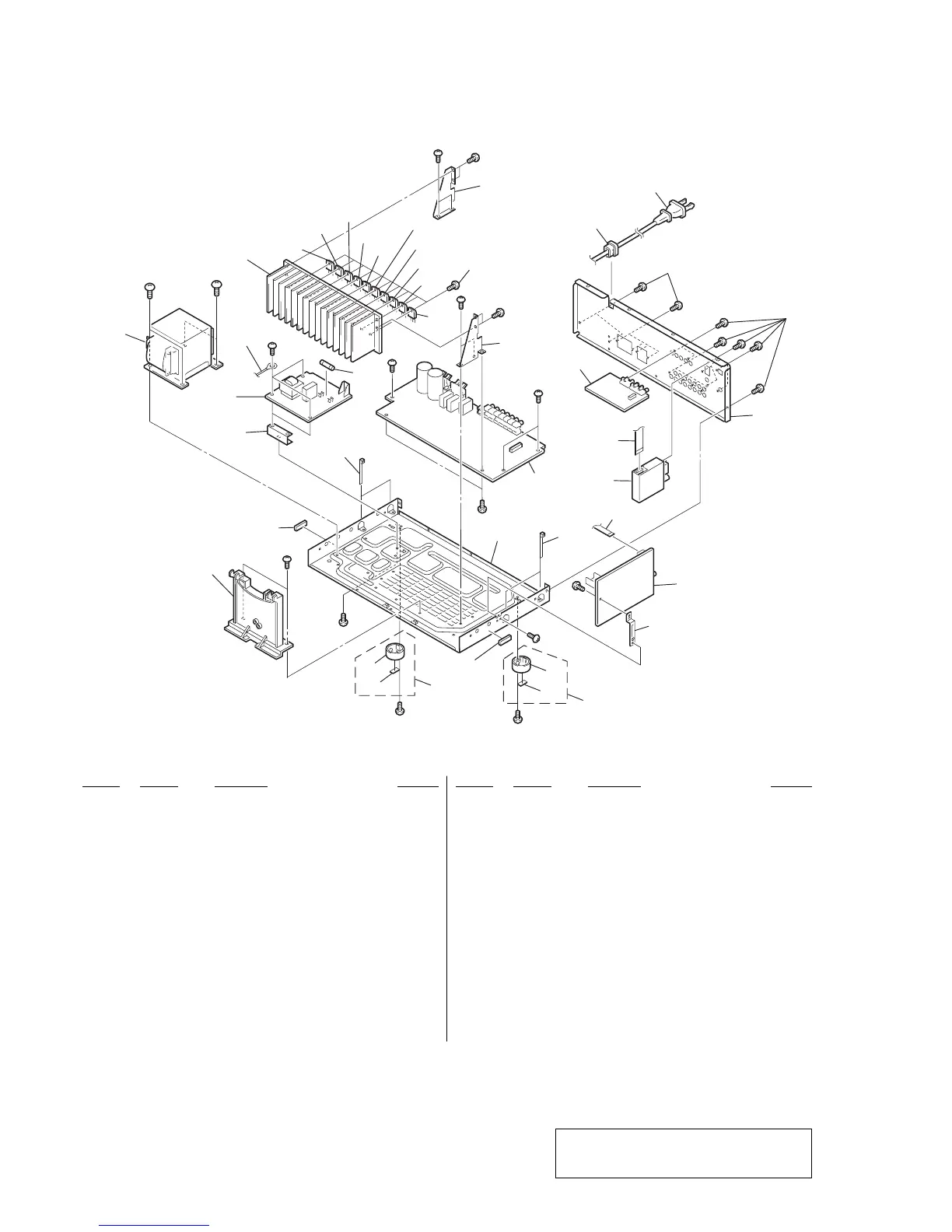

4-2. Chassis Section
54
63
64
65
61
62
55
51
52
51
53
53
52
#1
#1
#1
#1
#1
#2
#1
#2
#1
#1
#1
#1
#2
#2
#2
#2
not supplied
not supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
59
56
57
T901
F901
#3
#3
66
66
Q604
Q603
Q754
Q753
Q654
Q653
Q704
Q703
Q504
Q503
51 4-232-237-01 FOOT (DIA. 30)
52 4-977-358-11 CUSHION
53 X-4953-448-1 FOOT ASSY
54 1-686-904-11 STANDBY BOARD
55 3-905-609-01 SCREW (TRANSISTOR)
* 56 3-703-244-21 BUSHING (2104), CORD
0 57 1-783-532-11 CORD, POWER
59 A-4731-175-A VIDEO BOARD,COMPLETE
61 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
62 1-693-577-22 TUNER
63 A-4732-919-A MAIN BOARD,COMPLETE
64 A-4732-916-A DIGITAL BOARD,COMPLETE
65 1-575-662-31 WIRE (FLAT TYPE) (5 CORE)
66 3-701-748-02 CLAMP
0 F901 1-576-109-11 FUSE 6.3A/125V
Q503 8-749-010-25 IC MN2488-OPY-M
Q504 8-749-010-26 IC MP1620-OPY-M
Q603 8-749-010-25 IC MN2488-OPY-M
Q604 8-749-010-26 IC MP1620-OPY-M
Q653 8-749-010-25 IC MN2488-OPY-M
Q654 8-749-010-26 IC MP1620-OPY-M
Q703 8-749-010-25 IC MN2488-OPY-M
Q704 8-749-010-26 IC MP1620-OPY-M
Q753 8-749-010-25 IC MN2488-OPY-M
Q754 8-749-010-26 IC MP1620-OPY-M
0 T901 1-437-995-11 POWER TRANSFORMER
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-71 SCREW +BVTP 3X6 TYPE2 N-S
#3 7-685-880-01 SCREW +BVTT 4X6 (S)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
