Sony STR-K650P - 4 Exploded Views; Front Panel Section

SECTION 4
EXPLODED VIEWS
27
STR-K650P
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

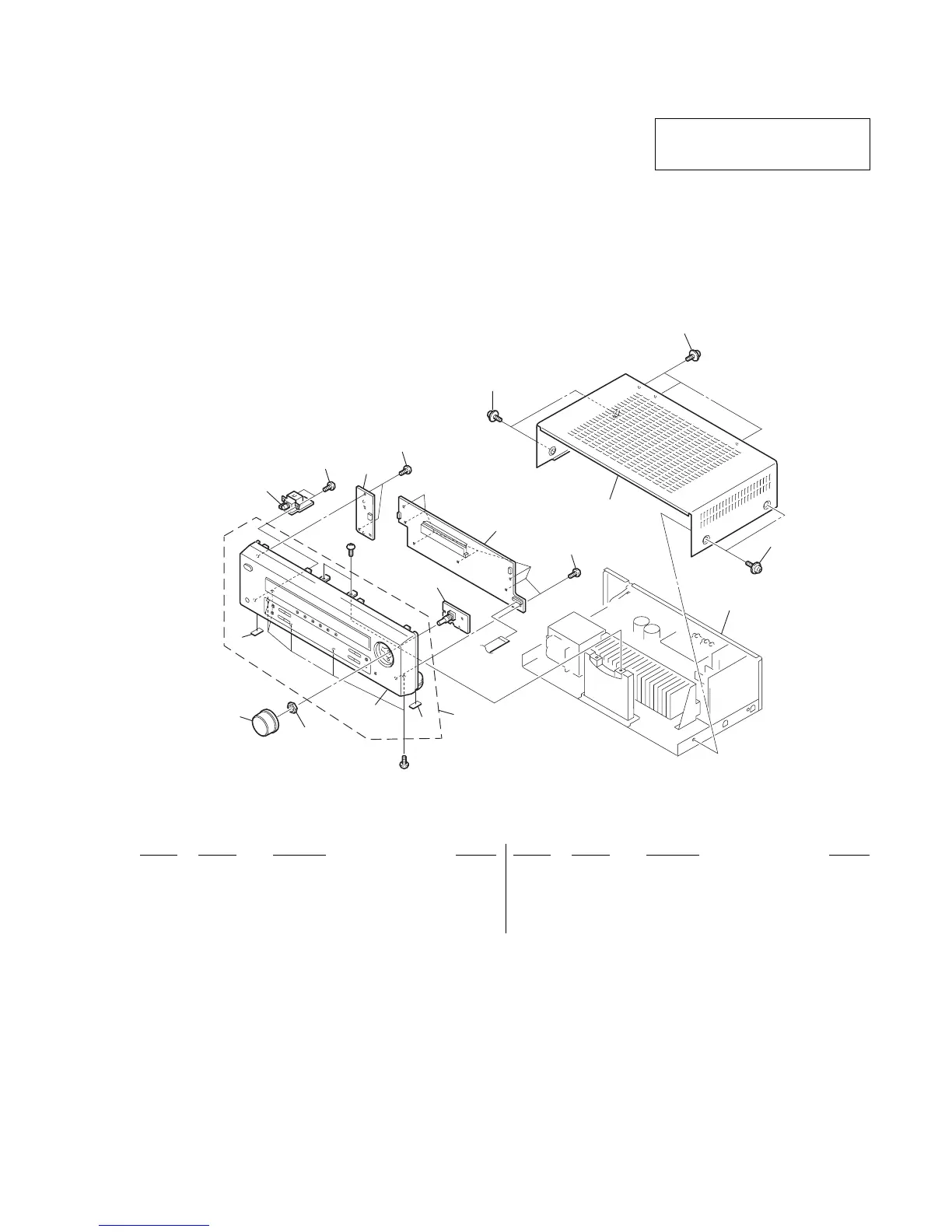

4-1. Front Panel Section
not
supplied
not
supplied
not
supplied
not
supplied
chassis section
11
11
11
12
6
10
6
6
#1
1
2
2
#1
4
including
RV102
1 4-232-113-12 KNOB (VOL)
2 4-977-358-11 CUSHION
4 X-4955-543-1 FRONT PANEL ASSY
6 4-951-620-01 SCREW (2.6X8), +BVTP
10 A-4731-177-A DISPLAY BOARD,COMPLETE
11 4-210-291-11 SCREW (CASE 3 TP2)
12 4-245-939-21 CASE
13 1-920-818-91 WIRE (FLAT TYPE)(21 CORE)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-71 SCREW +BVTP 3X6 TYPE2 N-S
