1313
STR-K790
STR-K790

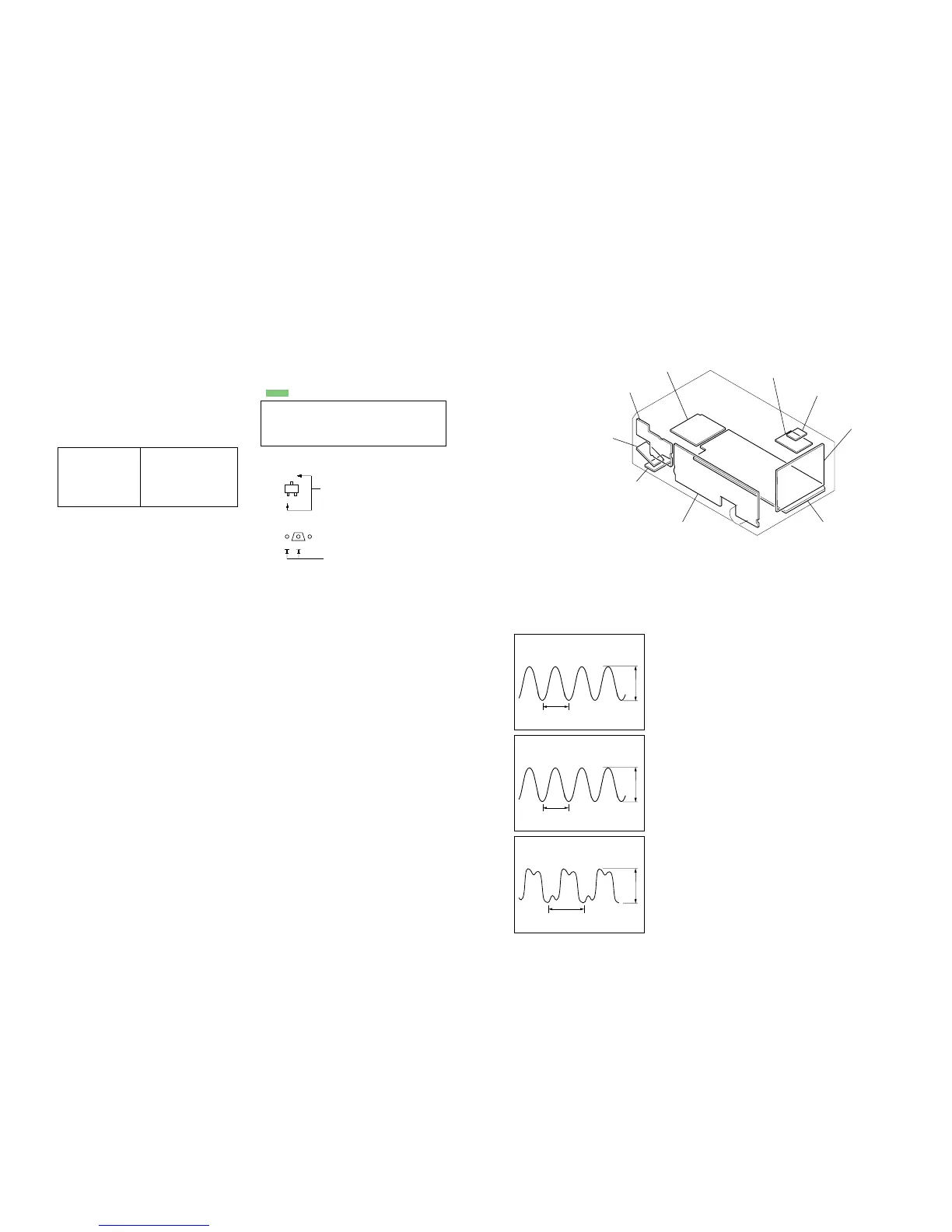

Circuit Boards Location
SECTION 4
DIAGRAMS
For Schematic Diagrams.
Note:
All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics and
tantalums.
All resistors are in and
1
/
4
W or less unless otherwise
specified.
% : indicates tolerance.
f : internal component.
2 : nonflammable resistor.
5 : fusible resistor.
C : panel designation.
A : B+ Line.
B : B– Line.
•Voltages and waveforms are dc with respect to ground un-
der no-signal (detuned) conditions.
No mark : FM
•Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
•Waveforms are taken with a oscilloscope.
Circled numbers refer to waveforms.
Signal path.
F : FM
J : ANALOG
c : DIGITAL
I : VIDEO
For Printed Wiring Boards.
Note:
X : parts extracted from the component side.
a
: Through hole.
f : internal component.
: Pattern from the side which enables seeing.
Indication of transistor.
Caution:
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
C
B
These are omitted.
E
Q
B
These are omitted.
CE
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
•Waveforms
– DIGITAL Board –
1
IC1905
9
(MCLK1)
1 V/DIV, 40 ns/DIV
72 ns
3.5 Vp-p
2
IC1101
id
(X1)
1 V/DIV, 20 ns/DIV
41.6
n
s
4.2 Vp-p
3
IC1301
ws
(XIN)
1 V/DIV, 40 ns/DIV
81.4 ns
4.2 Vp-p
DIGITAL board
MAIN board
DISPLAY board
HEADPHONE board
POWER board
DCAC board
STANDBY board
HDMI BRIDGE board (AEP,UK)
HDMI SW board (AEP,UK)
Note:
The components identi-
fied by mark 0 or dot-
ted line with mark 0 are
critical for safety.
Replace only with part
number specified.
Note:
Les composants identifiés
par une marque 0 sont cri-
tiques pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
