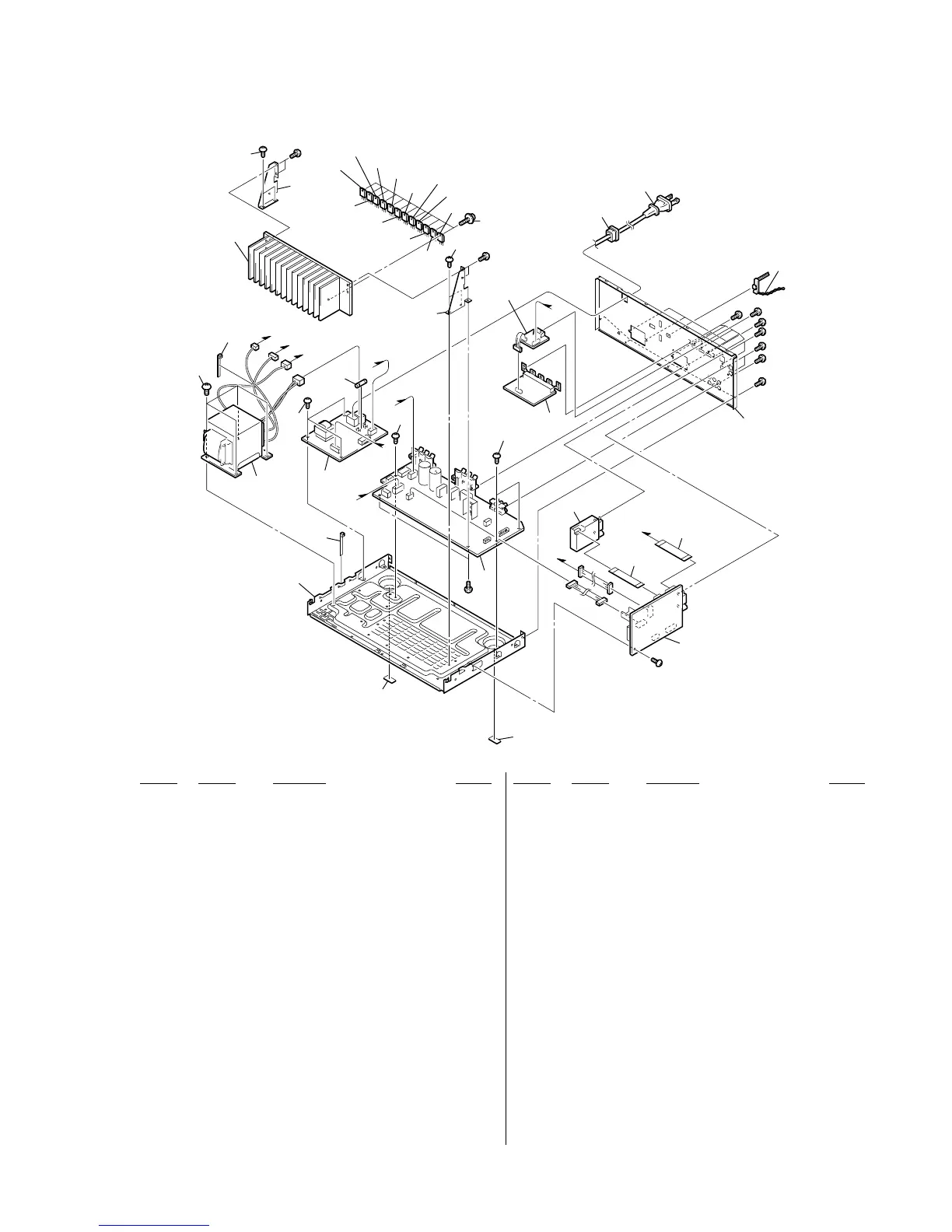

Sony STR-K790 - Chassis Section Exploded View

43
STR-K790
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-977-358-01 CUSHION
52 3-701-748-00 CLAMP
53 3-077-331-21 +BV3 (3-CR)
54 A-1221-175-A STANDBY BOARD, COMPLETE (US, CND)
54 A-1221-176-A STANDBY BOARD, COMPLETE (AEP, UK)
55 4-249-675-01 +BV SUMITITE S 4X6 ROUND
56 A-1221-230-A DIGITAL BOARD, COMPLETE (US, CND)
56 A-1221-231-A DIGITAL BOARD, COMPLETE (AEP, UK)
57 3-905-609-01 SCREW (TRANSISTOR)
* 58 3-703-244-00 BUSHING (2104), CORD
0 59 1-777-071-83 CORD, POWER (AEP, UK)
0 59 1-783-820-11 CORD, POWER (US, CND)
60 A-1221-171-A MAIN BOARD, COMPLETE (US, CND)
60 A-1221-172-A MAIN BOARD, COMPLETE (AEP, UK)
61 1-828-953-11 WIRE (FLAT TYPE) (9 CORE) (US, CND)
61 1-828-963-11 WIRE (FLAT TYPE) (11 CORE) (AEP, UK)
62 1-828-971-11 WIRE (FLAT TYPE) (13 CORE) (AEP, UK)
63 A-1158-394-A HDMI SW BOARD, COMPLETE (AEP, UK)
64 4-956-370-12 BAND, PLUG FIXED (UK)
65 1-693-728-11 TUNER (FM/AM) (CND)
5-2. CHASSIS SECTION
65 1-693-733-11 TUNER (FM/AM) (US)
65 1-693-737-11 TUNER (FM/AM) (AEP, UK)
0 F901 1-532-464-33 FUSE (T2.5AL/250V) (AEP, UK)
0 F901 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V)
(US, CND)
0 Q503 6-702-390-01 IC MN2488-OPY-MK
0 Q504 6-702-391-01 IC MP1620-OPY-MK
0 Q553 6-702-390-01 IC MN2488-OPY-MK
0 Q554 6-702-391-01 IC MP1620-OPY-MK
0 Q603 6-702-390-01 IC MN2488-OPY-MK
0 Q604 6-702-391-01 IC MP1620-OPY-MK
0 Q653 6-702-390-01 IC MN2488-OPY-MK
0 Q654 6-702-391-01 IC MP1620-OPY-MK
0 Q703 6-702-390-01 IC MN2488-OPY-MK
0 Q704 6-702-391-01 IC MP1620-OPY-MK
0 Q753 6-702-390-01 IC MN2488-OPY-MK
0 Q754 6-702-391-01 IC MP1620-OPY-MK
0 T901 1-443-909-11 POWER TRANSFORMER (US, CND)
0 T901 1-443-916-11 POWER TRANSFORMER (AEP, UK)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-862-01 SCREW +BVTT 2.6X6 (S)
54
T901
56
52
52
51
51
F901
58
63
Q654
Q554
Q553
Q604
Q504
Q503
Q753
Q704
Q703
Q754
57
Q603
Q653
59
64
55
#1
#1
#1
#1
#2
#1
#1
#1
#1
60
53
53
53
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
53
53
#1
#1
61
62
65
a
a
c
b
b
c
d
e
d
e
Ver. 1.1
