Sony STR-K790 - Section 5 Exploded Views; Front Panel Section Exploded View

42
STR-K790
6 A-1221-225-A DISPLAY BOARD, COMPLETE (US, CND)
6 A-1221-226-A DISPLAY BOARD, COMPLETE (AEP, UK)
7 3-363-099-11 SCREW (CASE 3 TP2)
8 2-662-472-01 CASE
9 1-829-994-11 WIRE (FLAT TYPE) (17 CORE)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark
1 2-661-142-22 VOLUME KNOB
2 2-661-141-22 MENU KNOB
3 4-977-358-01 CUSHION
4 X-2159-959-1 FRONT PANEL ASSY (US)
4 X-2159-960-1 FRONT PANEL ASSY (CND)
4 X-2159-961-1 FRONT PANEL ASSY (AEP, UK)
5 3-087-053-01 +BVTP2.6 (3CR)

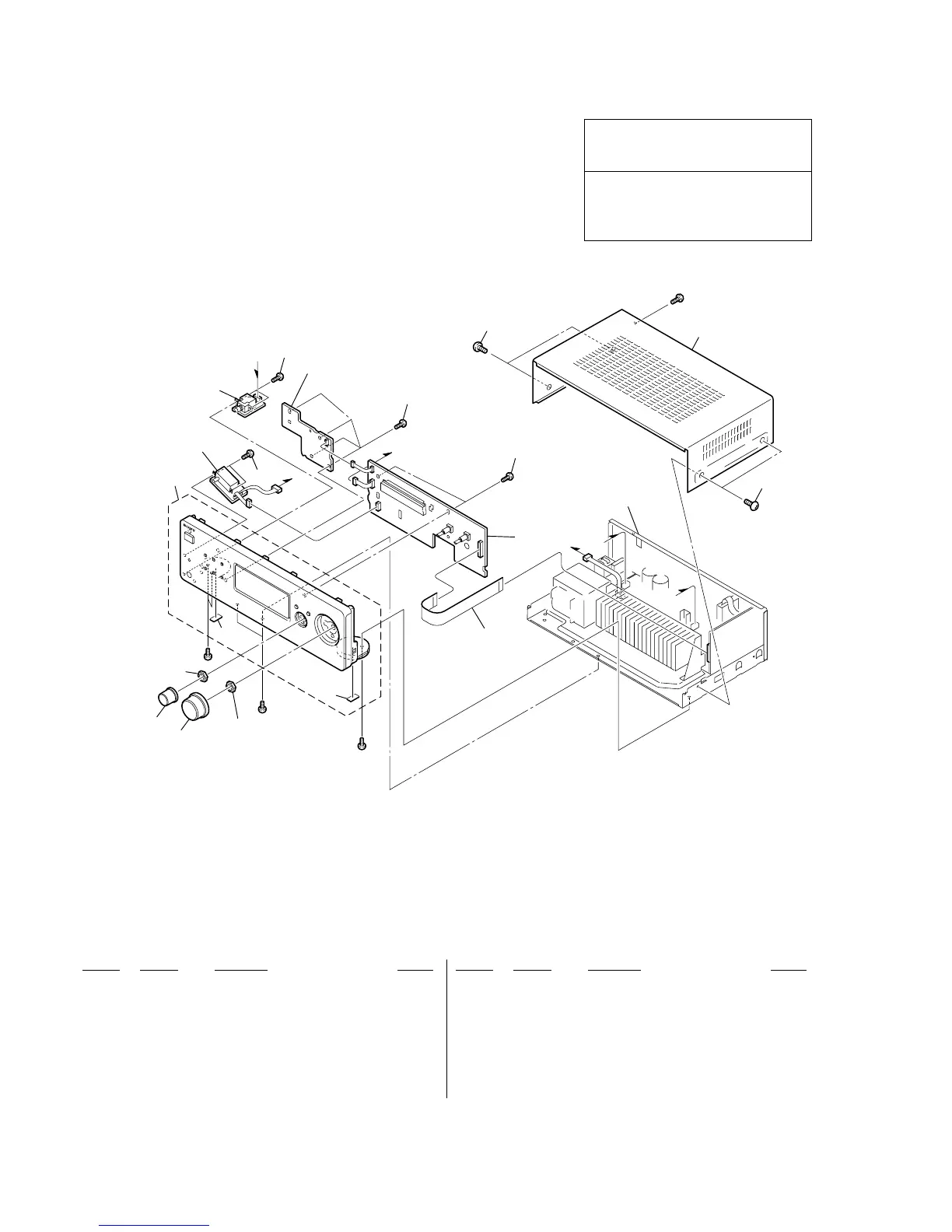

5-1. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•Abbreviation
CND : Canadian model
2
1
3
3
#1
#1
#1
4
7
8
7
#1
5
5
5
5
6
9
supplied
with RV102
supplied
with RV101
chassis section
not
supplied
not
supplied
not
supplied
a
b
a
b
c
c
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
